Bosch Rexroth R156350102

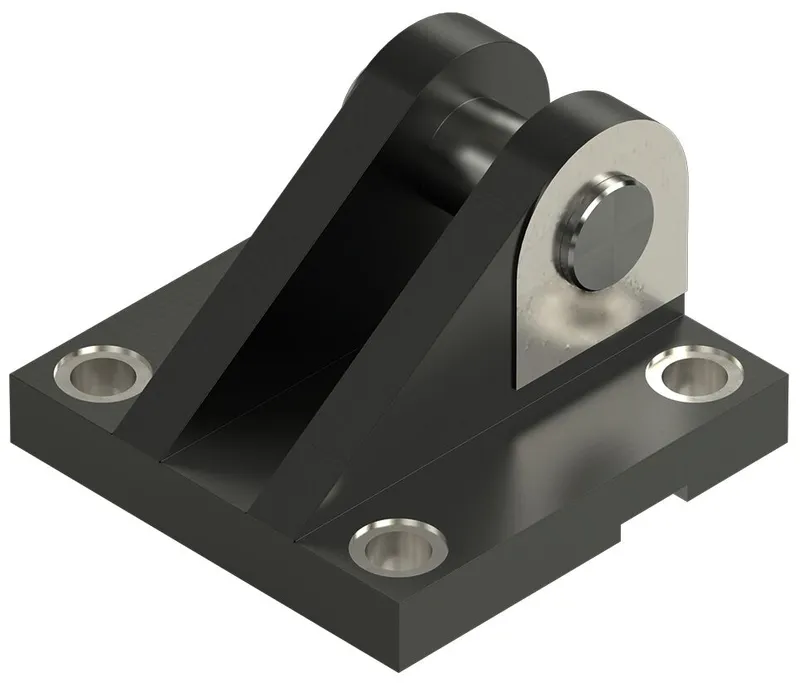

BEARING PEDESTAL EMC-HD 125 PSBG

MPN: R156350102
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R156350102?

Group 1/6, option 022

Material : Cast iron

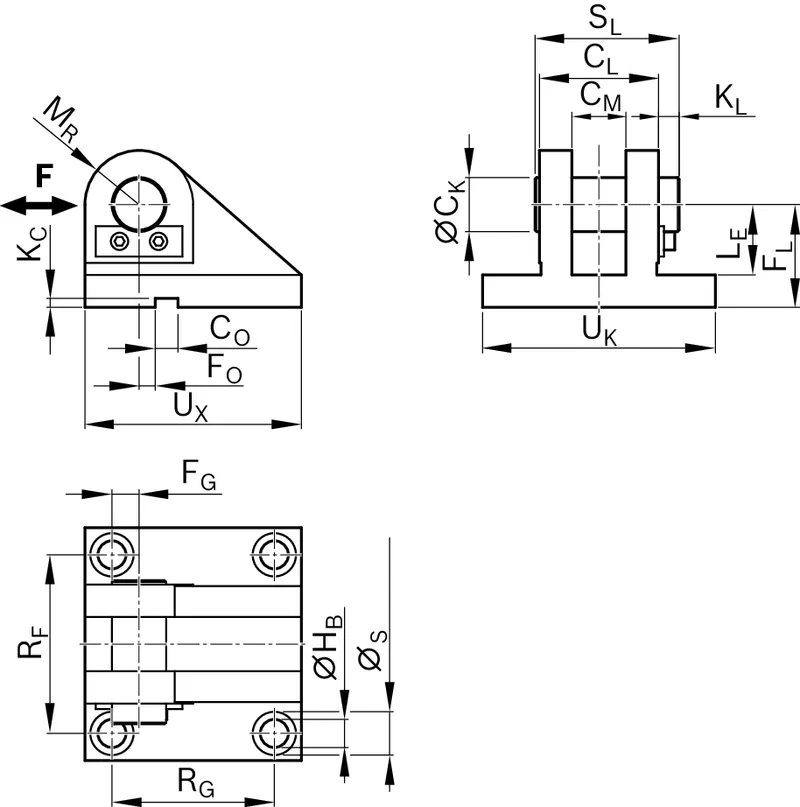

Specifications

Fastening elements for electromechanical cylinders	Clevis bracket
Weight [kg]	0
Material of electromechanical cylinders	Bearing, bare cast iron; Bolts, steel
Dimension CK H9 [mm]	50
Dimension CL h16 [mm]	110
Dimension CM A12 [mm]	50
Dimension CO N9 [mm]	36
Dimension FG js14 [mm]	25
Dimension FL js12 [mm]	95
Dimension FO js14 [mm]	0
Dimension HB H13 [mm]	26
Dimension KC [mm]	8.4
Dimension KC tolerance [mm]	+0.3
Dimension KL [mm]	19
Dimension LE min. [mm]	65
Dimension MR max. [mm]	50
Dimension RF js14 [mm]	165
Dimension RG js14 [mm]	150
Dimension S [mm]	40
Dimension S bore depth [mm]	1
Dimension S bore depth (text)	deep
Dimension S with thread depth	40 mm ‒ 1 mm deep
Dimension SL [mm]	133
Dimension UK max. [mm]	215
Dimension UX max. [mm]	200
Footnote Dimension CK H9	Matching bolt ⌀ m6 (bolt and bolt locking feature are included in the scope of supply and are not ready-mounted on delivery)
