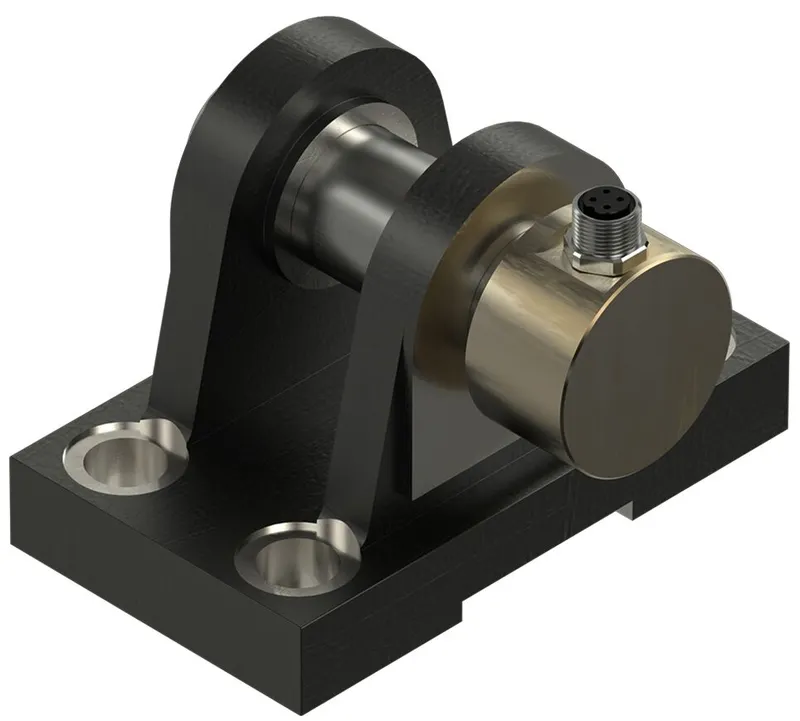

Bosch Rexroth R156330103

BEARING PEDESTAL EMC-HD 85 PSBG

MPN: R156330103
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R156330103?

Group 1/6, option 031

Material : Cast iron

comparable to ISO 8132

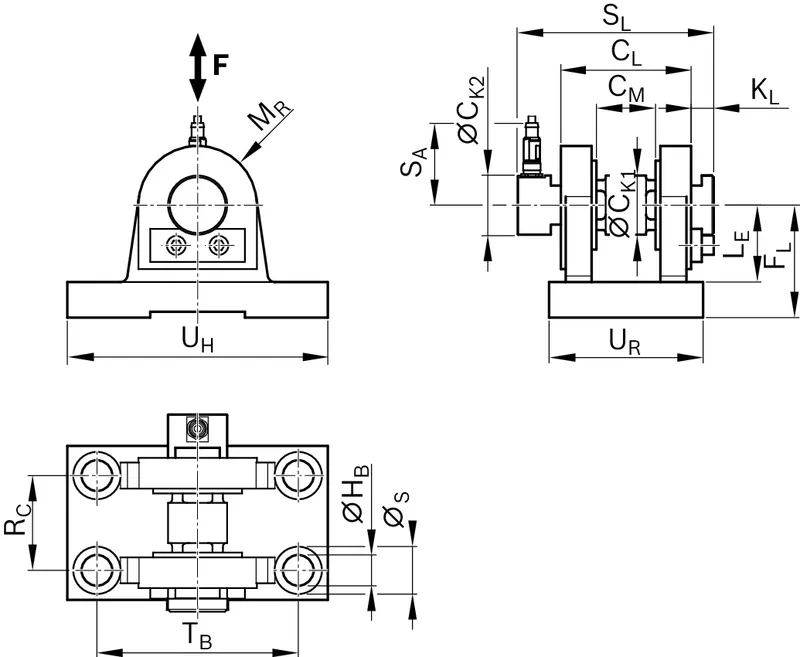

Specifications

Fastening elements for electromechanical cylinders	Clevis bracket
Weight [kg]	0
Dimension CK1 H9 [mm]	32
Dimension CK2 [mm]	50
Dimension CL h16 [mm]	70
Dimension CM A12 [mm]	32
Dimension FL js12 [mm]	65
Dimension HB H13 [mm]	17.5
Dimension KL [mm]	12
Dimension LE min. [mm]	43
Dimension MR max. [mm]	32
Dimension RC js14 [mm]	50
Dimension S [mm]	26
Dimension S bore depth [mm]	1
Dimension S bore depth (text)	deep
Dimension S with thread depth	26 mm ‒ 1 mm deep
Dimension SA [mm]	69.5
Dimension SL [mm]	117
Dimension TB js14 [mm]	110
Dimension UH max. [mm]	143
Dimension UR max. [mm]	85
Footnote Dimension CK1 H9	Matching bolt ⌀ f8. For detailed information on the load measuring pin, see "Force sensor".
Footnote Dimension KL	Values deviate from ISO 8132 standard
Footnote Dimension SA	Values deviate from ISO 8132 standard
Footnote Dimension SL	Values deviate from ISO 8132 standard
