Bosch Rexroth R156330102

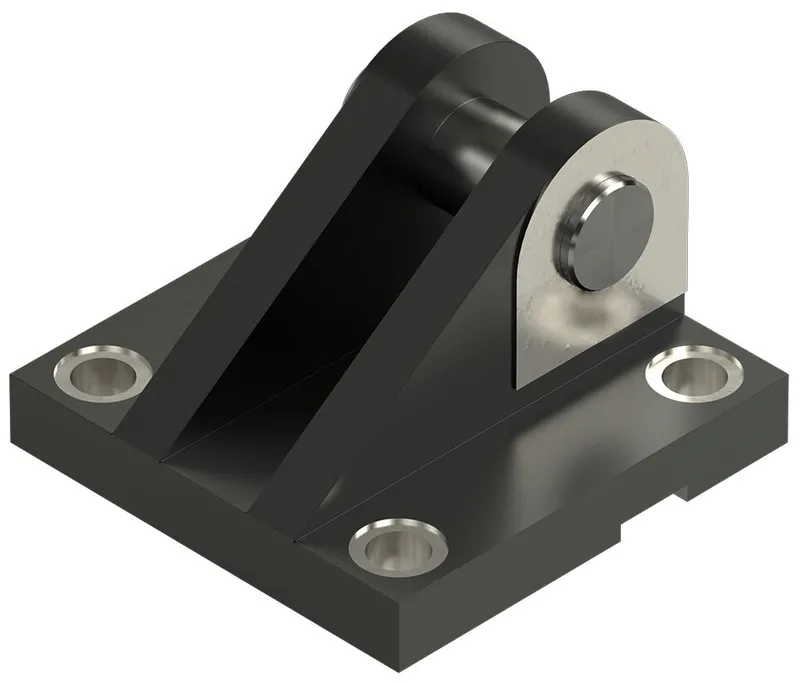

BEARING PEDESTAL EMC-HD 85 PSBG

MPN: R156330102
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R156330102?

Group 1/6, option 022

Material : Cast iron

Specifications

Fastening elements for electromechanical cylinders	Clevis bracket
Nominal size [mm]	115
Weight [kg]	4.85

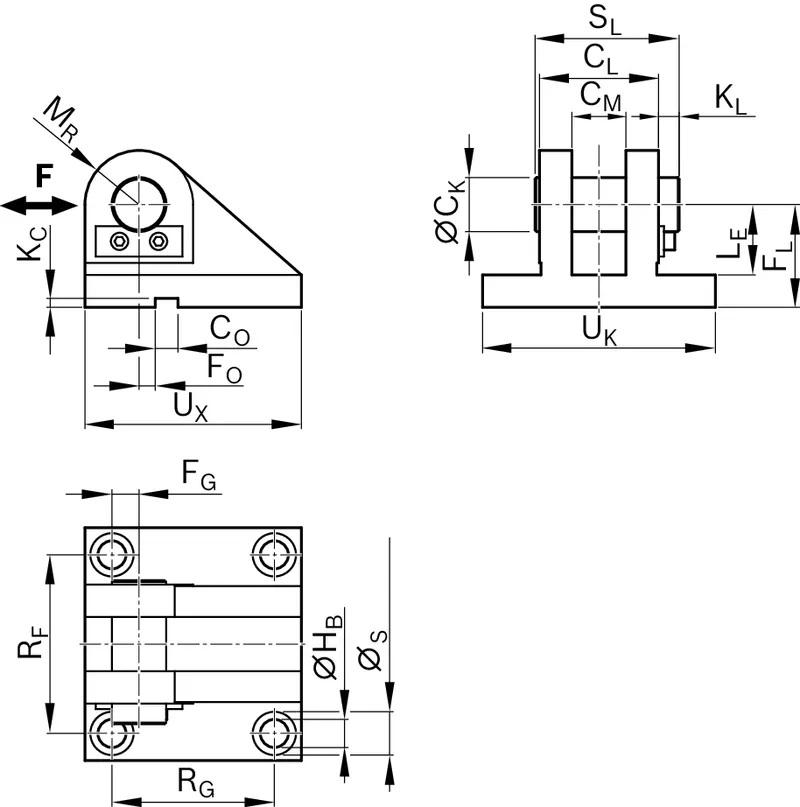

Dimension CK H9 [mm]	32
Dimension CL h16 [mm]	70
Dimension CM A12 [mm]	32
Dimension CO N9 [mm]	25
Dimension FG js14 [mm]	14.5
Dimension FL js12 [mm]	65
Dimension FO js14 [mm]	6
Dimension HB H13 [mm]	17.5
Dimension KC [mm]	5.4
Dimension KC tolerance [mm]	+0.3
Dimension KL [mm]	13
Dimension LE min. [mm]	43
Dimension MR max. [mm]	32
Dimension RF js14 [mm]	110
Dimension RG js14 [mm]	110
Dimension S [mm]	26
Dimension S bore depth [mm]	1
Dimension S bore depth (text)	deep
Dimension S with thread depth	26 mm ‒ 1 mm deep
Dimension SL [mm]	87
Dimension UK max. [mm]	145
Dimension UX max. [mm]	145
Footnote Dimension CK H9	Matching bolt ⌀ m6 (bolt and bolt locking feature are included in the scope of supply and are not ready-mounted on delivery)
