Bosch Rexroth 3842999843

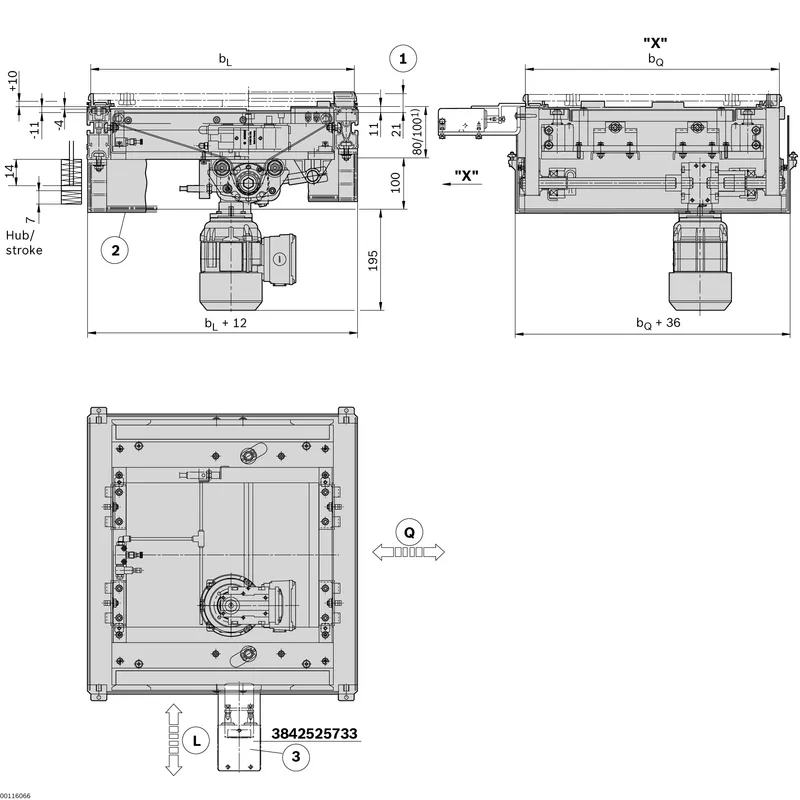

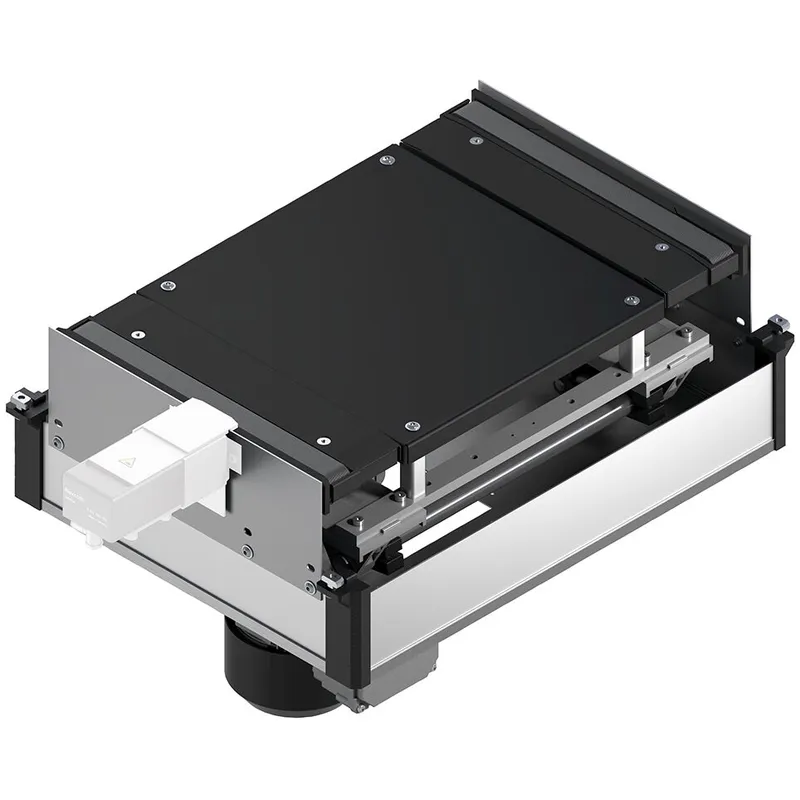

LIFT TRANSFER UNIT HQ 2/U2

MPN: 3842999843
Category: Lift transverse units TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842999843?

Lift Transverse Unit HQ 2/U2

Lift transverse unit for feeding out of a from longitudinal section into a transverse section and vice versa

Use in tight spaces by means of suspended drive motor (outside dimensions must be no wider than the section)

Reinforced version of HQ 2/U with two lift cylinders for large workpiece pallet dimensions

Drive by toothed belt coupling is not possible because of the compact design

Conveyor medium: Toothed belt (suitable for use in an EPA)

Pneumatic equipment for 2 (top, center) or 3 (top, center, bottom) lift positions

Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm

Can be combined with WT 2, WT 2/F, WT 2/H, WT 2/F-H and WT 2/LS (only with version LS)

Reversible operation possible

Specifications

ESD	Yes
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Combination options bQ x bL	400 x 400; 480; 640; 480 x 400; 480; 640; 640 x 400; 480; 640; 800 x 400; 480; 640
Nominal speed [vN]	15 m/min; 18 m/min; 6 m/min; 9 m/min; 0 m/min ohne Motor und ohne Getriebe; 12 m/min
Workpiece pallet total weight [mG] [kg]	50
Pneumatic straight connection [Ø] [mm]	6
Scope of delivery	Assembly kit for electrical position inquiry; Incl. fastening material; Pneumatic equipment for two or three positions; Protective housing
Delivery information	Fully assembled; Kit for electrical position inquiry included; Kit for housing element included
Notice	Pneumatic equipment PN = 2: Upper and middle lift position; Pneumatic equipment PN = 3: Upper, middle and lower lift position
Preferred values [mm]	400; 480; 640; 800
Conveyor medium	Toothed belt (suitable for use in an EPA)
Required accessories	1x M12x1 sensor with rated sensing range S for each position inquiry<sub>N</sub> = 4 mm
Recommended accessories	Damper DA 2/100-B for outfeeding of the workpiece pallets WT 2, WT 2/F, WT 2/H or WT 2/F-H; required for v<sub>N</sub> > 12 m/min or total weight of workpiece pallet ≥ 30 kg; Rocker WI 2/…, WI/M and dampers DA 2/100-C for infieeding of the workpiece pallets WT 2 and WT 2/F
Weight [kg]	0
