Bosch Rexroth 3842999764
CURVE KE 1/O-90
- MPN
- 3842999764
- Category
- Curve KE 1
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842999764?

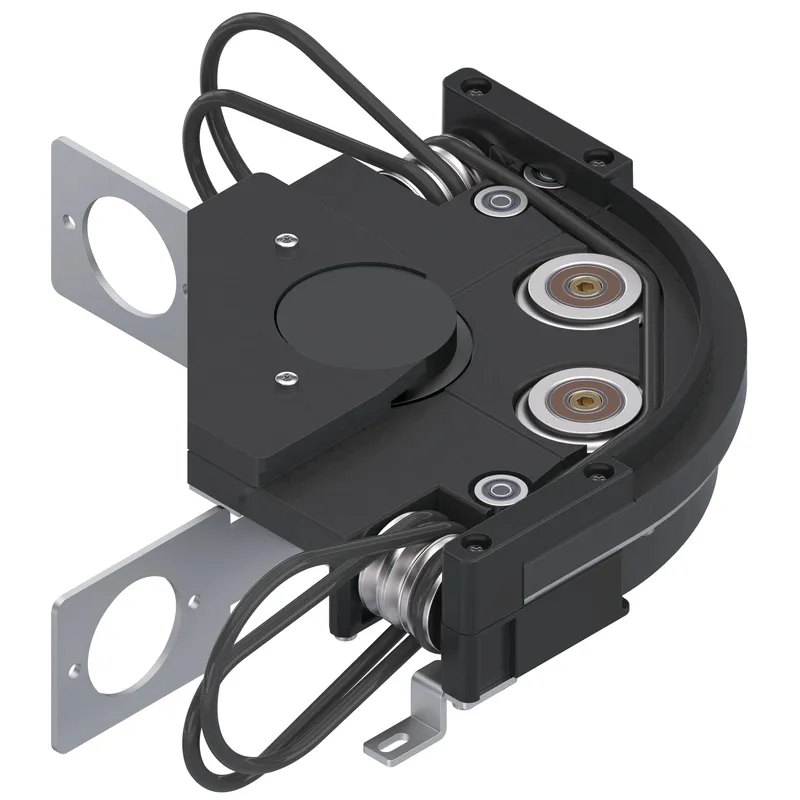

Curve KE 1/O-90
The drive takes place via a belt section BS 1/T connected to the curve output or the return unit UM 1 of a section unit.
Using additional drive kits improves the transport of the workpiece pallets WT 1/P at the start and end of the curve.
Conveyor medium: Round belt (suitable for use in an EPA)
Curve direction right (KR = R) or left (KR = L)

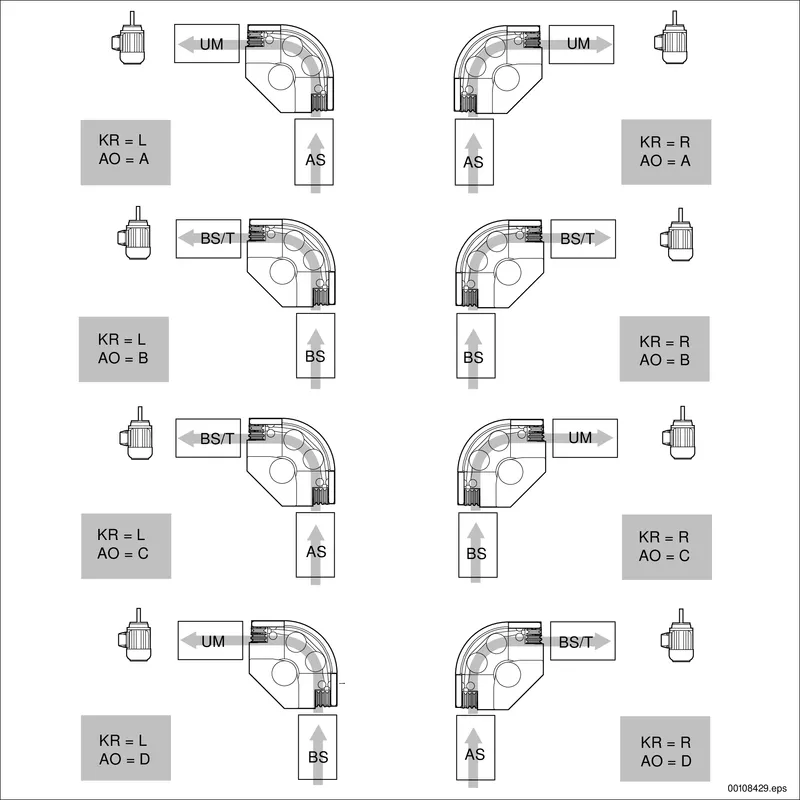

The installation location AO describes the installation situation on the curve infeed and outfeed.
Specifications
Specifications
| ESD | Yes |
| Dry room [%rF] | <1 |
| Section load in accumulation operation [kg] | 3 |
| Scope of delivery | Curve KE 2/O-90; Fastening material according to the installation situation AO |
| Delivery information | Partially assembled |
| Preferred values [mm] | 120; 160; 80 |
| Clean room classification | ISO class 7 |
| Recommended accessories | Additional drive kits (recommended for WT 1/… b ≥ 120 mm for external gravity center position) |
| Weight [kg] | 0 |
