Bosch Rexroth 3842999743

BELT SECTION BS 2/130

MPN: 3842999743
Category: Belt and toothed belt for belt section

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842999743?

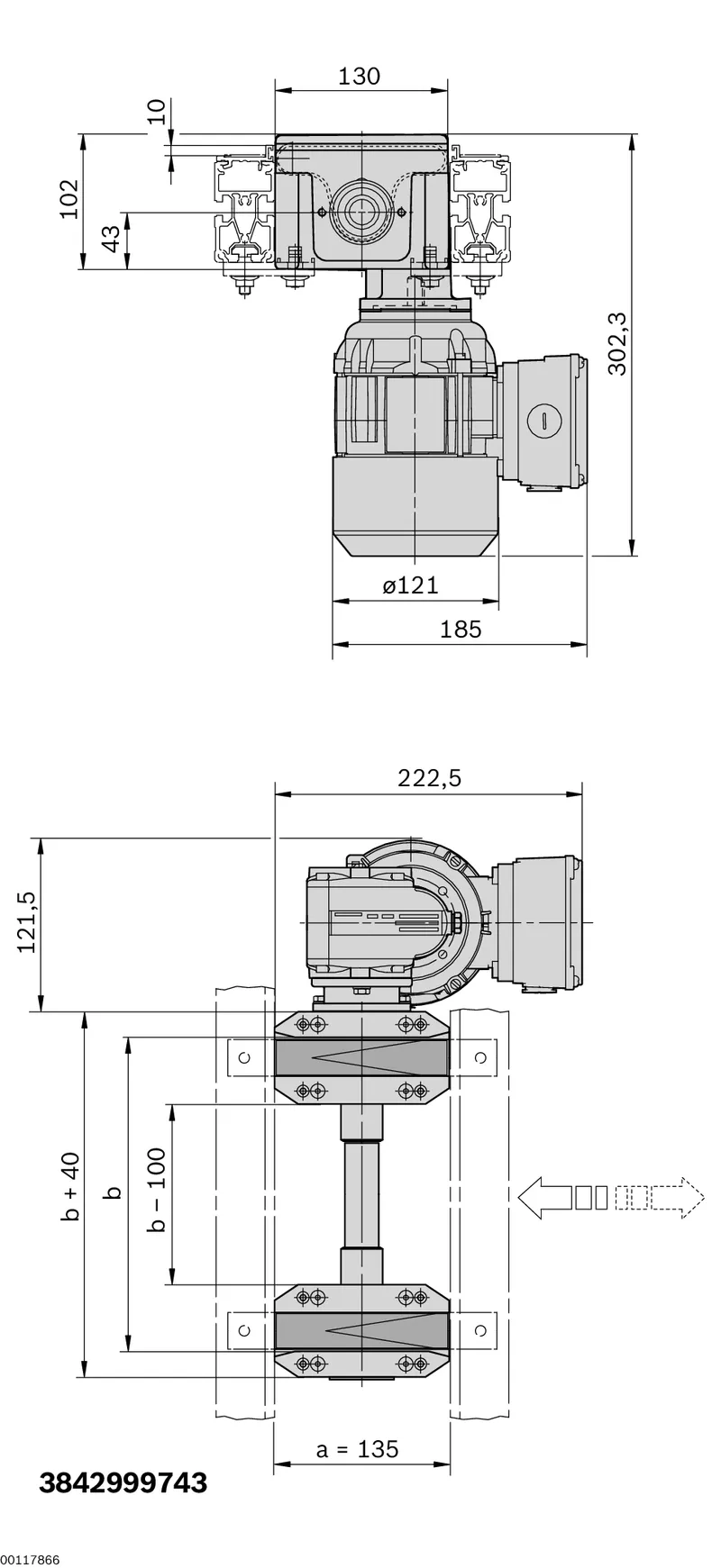

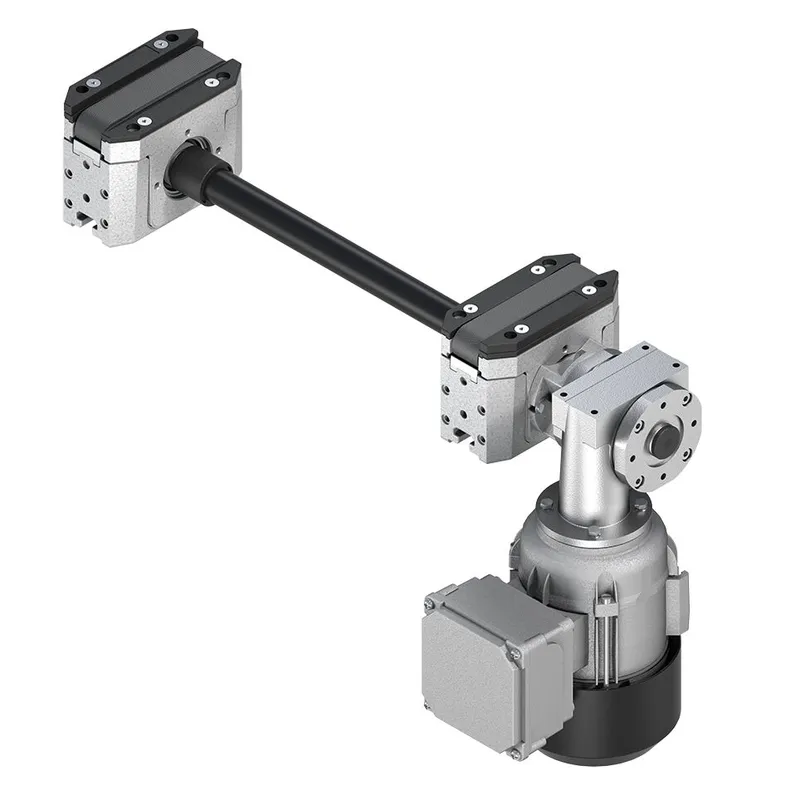

BS 2/130 Belt Section

Fully mounted belt section for workpiece pallet transverse conveyor belt parallel conveyor sections at a distance of a = 135 mm

With own drive

Use in conjunction with two HQ 2 lift transverse units

Conveyor medium: Toothed belt (suitable for use in an EPA)

Reversible operation possible

Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm

Can be combined with WT 2/E, WT 2, WT 2/F, WT 2/H and WT 2/F-H

Specifications

ESD	Yes
Length [l] [mm]	130
Track width in direction of transport [b max] [mm]	1200
Track width in direction of transport [b min] [mm]	160
Section load in accumulation operation [kg]	30
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Scope of delivery	Incl. fastening material
Delivery information	Fully assembled
Preferred values [mm]	1040; 1200; 160; 240; 320; 400; 480; 640; 800
Conveyor medium	Toothed belt (suitable for use in an EPA)
Recommended accessories	2x HQ 2 for transverse conveyor
Weight [kg]	0
