Bosch Rexroth 3842999728

CURVE KE 2/180

MPN: 3842999728
Category: Curves TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842999728?

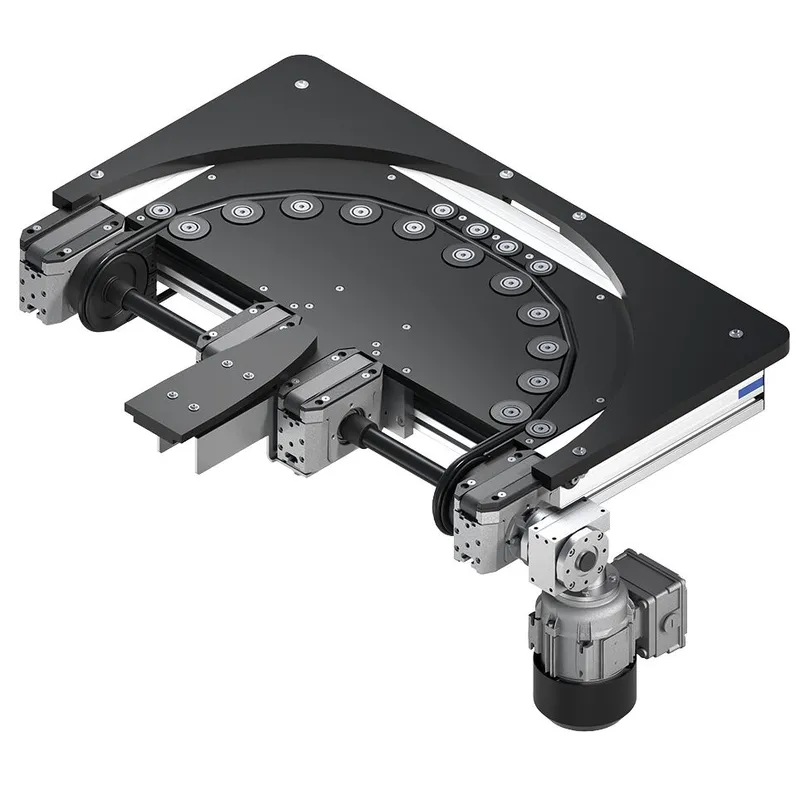

Curve KE 2/180

180° curve conveyor for the workpiece pallet

Curve module with own drive

Overall weight of workpiece pallets up to 20 kg

Conveyor medium: Round belt (suitable for use in an EPA)

Intended for grease-free and oil-free environments

Can be combined with WT 2, WT 2/F and WT 2/LS (only with version LS)

Accumulation operation not permitted

Specifications

ESD	Yes
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	20

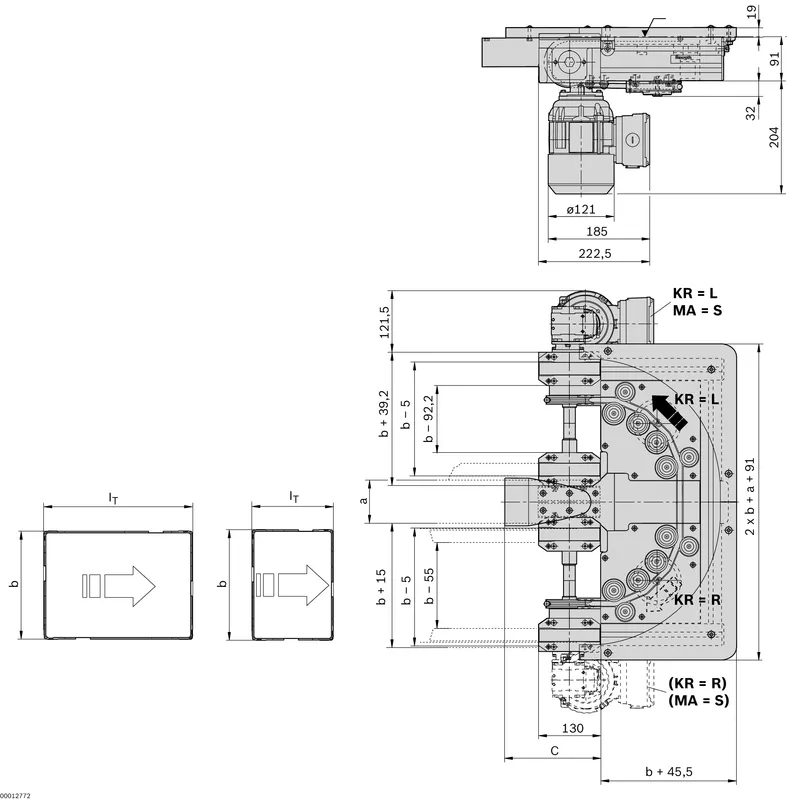

Track width in direction of transport [b] [mm]	160; 240; 320; 400
Length in direction of transport [lT] [mm]	160; 240; 320; 400
Scope of delivery	Curve; complete with drive motor
Delivery information	Inner guide and motor included; Partially assembled
Notice	b x l<sub>T</sub> is possible in all combinations
Conveyor medium	Round belt (suitable for use in an EPA)
Recommended accessories	Connection Kits; Section supports SZ 2/...
Weight [kg]	0
