Bosch Rexroth 3842998747

STOP GATE VE 2/D100-H

MPN: 3842998747
Category: Dampened stop gates

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998747?

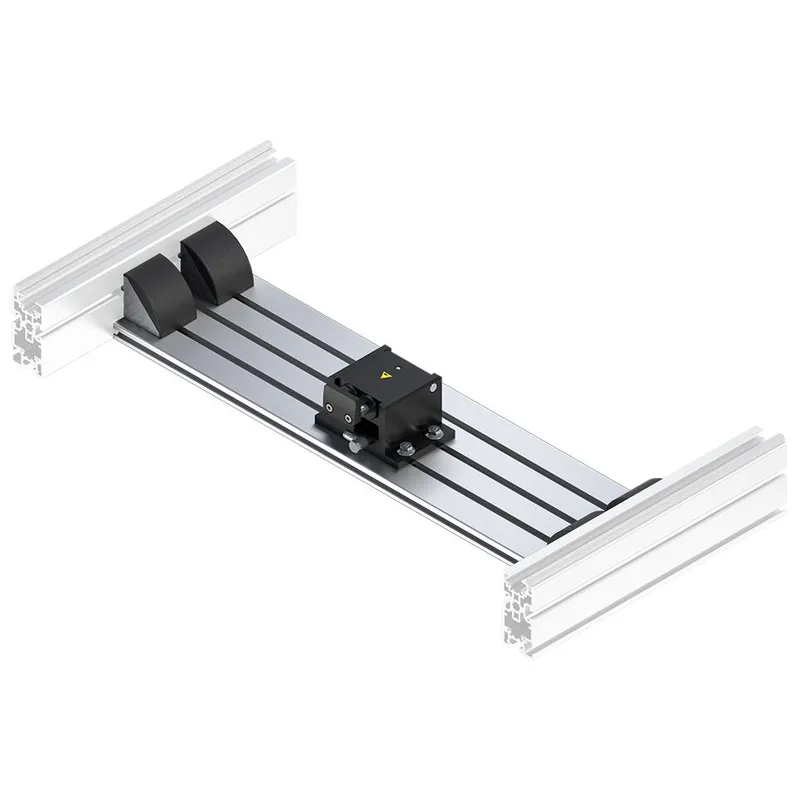

VE 2/D100-H Stop Gate

Pneumatic stop gate

For central separation of WT 2/H and WT 2/F-H workpiece pallets

Suitable for accumulation loads up to 1000 kg

Infinitely adjustable damping

Optimal damping for total weights up to 100 kg

Can be combined with WT 22/H and WT 2/F-H

Notice: Combination with WT 2/LS not possible

The stop gate stops one or more accumulating workpiece pallets at the defined workpiece pallet stop surface

When the pressure is released, the stop gate is held in the lock position by a spring and the workpiece pallet is stopped

For central separation, the stop gate is mounted inside the tracks on the conveyor section using the supplied cross connectors

Specifications

ESD	Yes
Track width in direction of transport [b max] [mm]	1200
Track width in direction of transport [b min] [mm]	400
Operating temperature [T] max	+5 ... +60 °C
Workpiece pallet total weight [mG] [kg]	100
Scope of delivery	Incl. all fastening material to mount on ST 2/... conveyor section
Delivery information	Not assembled
Notice	High-temperature stop gate on request; Individual width variants possible
Preferred values [mm]	1040; 1200; 400; 480; 640; 800
Material information	Cross strut: Aluminum; Housing: Steel; Stop cam: Steel
Min. workpiece pallet weight m	5 kg

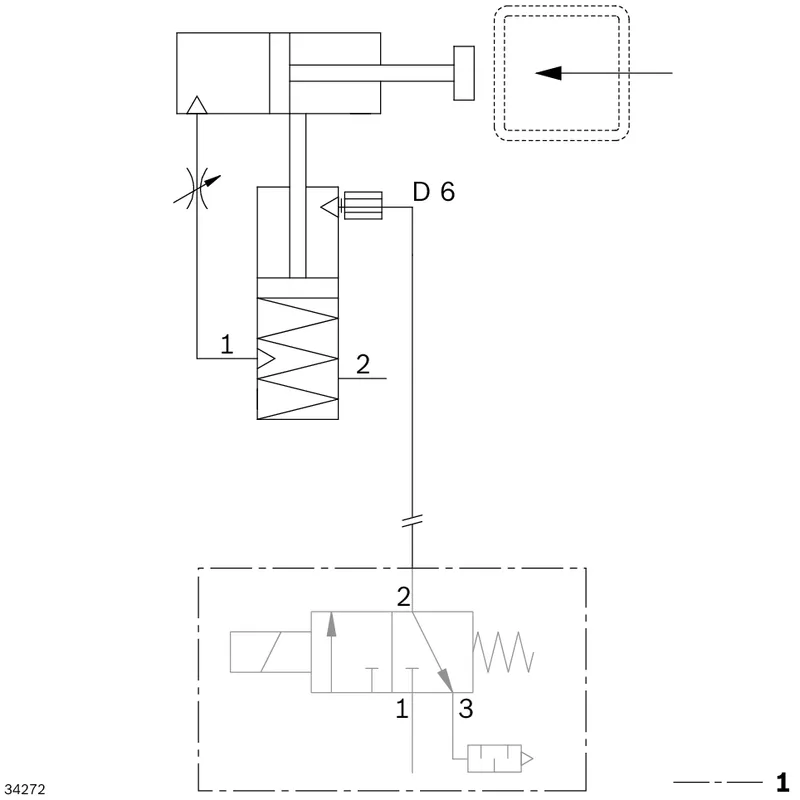

Pneumatic circuit diagram	1 Not included in the scope of delivery

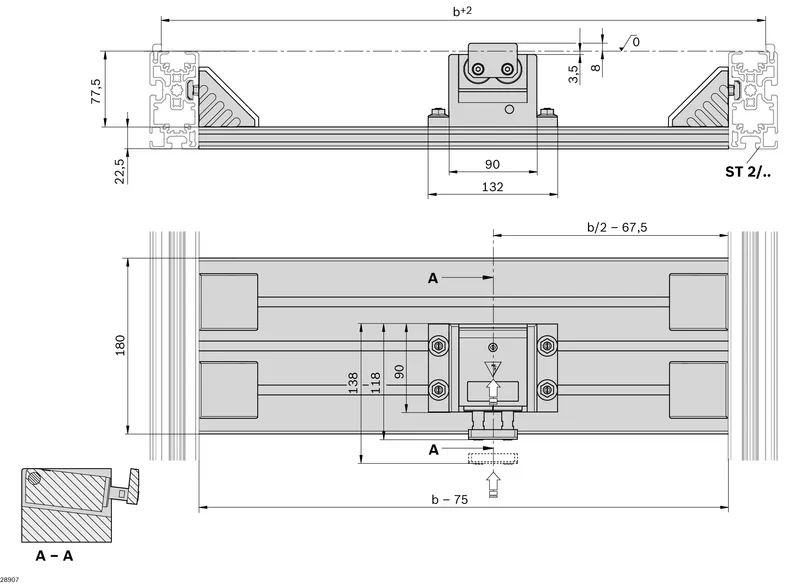

Dimension drawing	0 Transport level
Recommended accessories	VE 2/RS-H Return Stop
Weight [kg]	0
