Bosch Rexroth 3842998757

WORKPIECE PALLET WT 2/F-H

MPN: 3842998757
Category: Workpiece pallet WT 2/F-H

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998757?

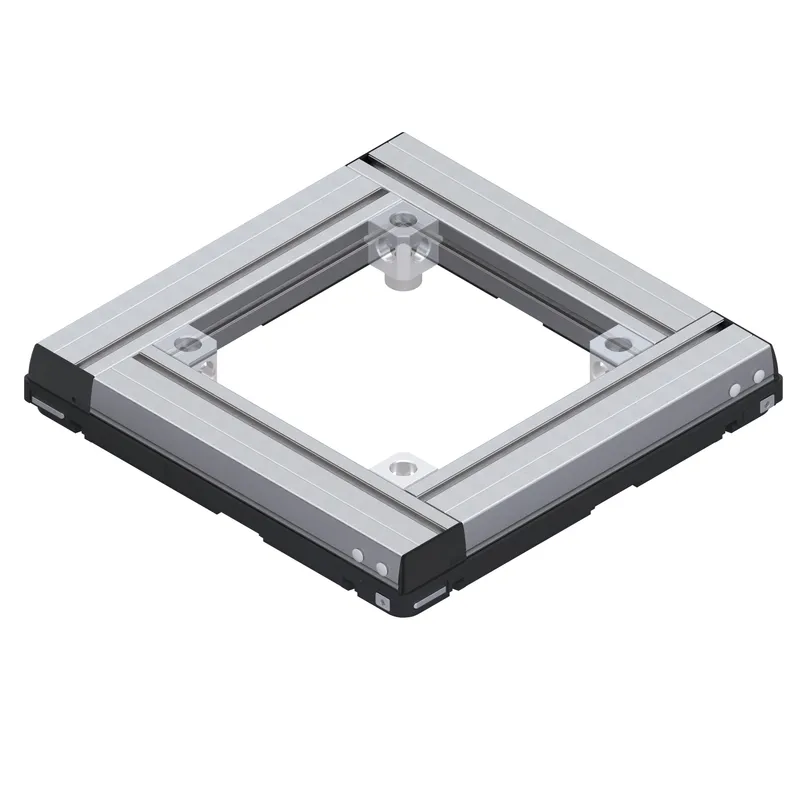

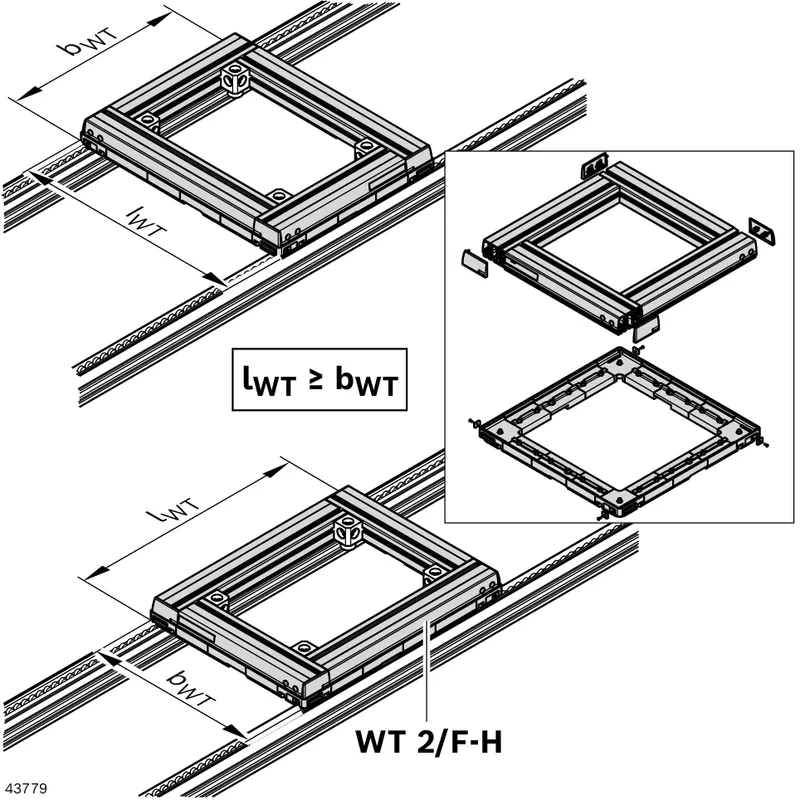

WT 2/F-H frame workpiece pallets

Frame workpiece pallet for especially high maximum permitted overall weight of up to 240 kg (2 kg/cm length) combined with accumulation roller chain conveyor medium

Fully assembled or unassembled as a kit

Low weights and high stability thanks to aluminum frame construction

Standard grooves to easily fasten cross struts and workpiece supports

PE wear pads for quiet operation and low wear

Integrated stop damper, ensures quiet running onto other workpiece pallets

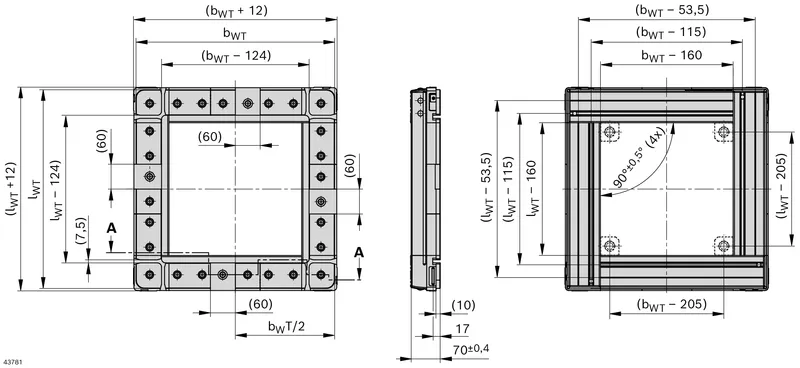

For workpiece pallet dimensions b WT x l WT = 400 x 400 mm to 1200 x 1200 mm

Special dimensions on request

Suitable for use in an EPA

Frame modules with PE (polyethylene) wear pad

Specifications

ESD	Yes
Workpiece pallet total weight [mG] [kg]	240
Workpiece pallet length [lWT] [mm]	1040; 1200; 400; 480; 640; 800
Kit [MT]	0 = unmontiert; 1 = montiert
Scope of delivery	Caps; Corner module; Damping elements; Frame modules; Wear pads
Delivery information	Kit, not mounted (MT = 0); Mounted (MT = 1)
Material information	Frame module with PE (= polyethylene) wear pad
Workpiece pallet width [bWT] [mm]	1040; 1200; 400; 480; 640; 800
Recommended accessories	2x positioning bushing kit WT 2/H (LE 2)
Weight [kg]	0
