LIFT-ROTATE UNIT HD 2/H SIZE1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Lift rotary unit HD 2/H |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842998760 be shipped?
3842998760 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842998760 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842998760 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842998760, subject to availability and destination.

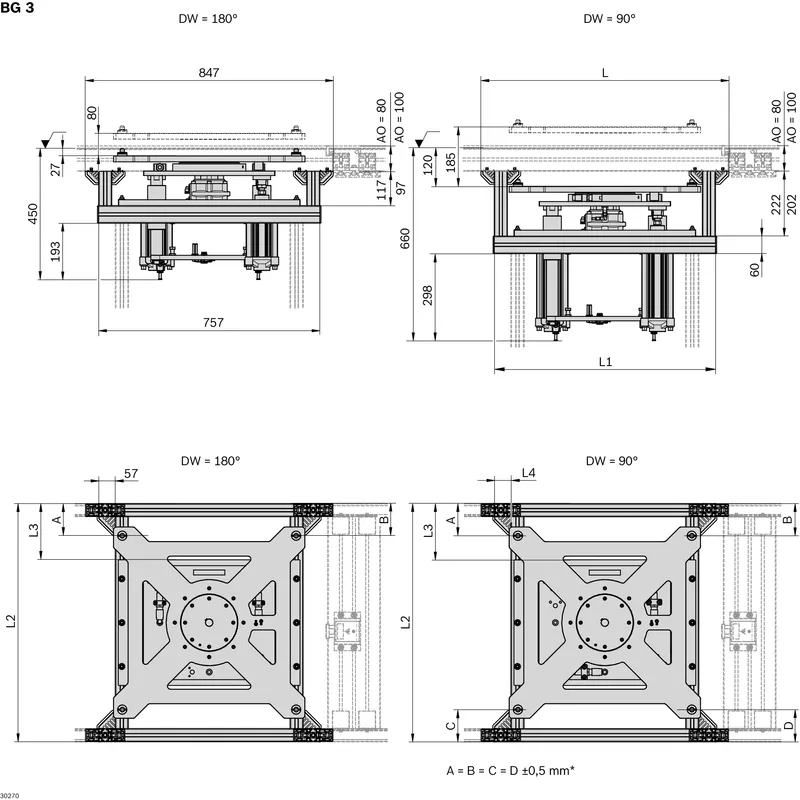

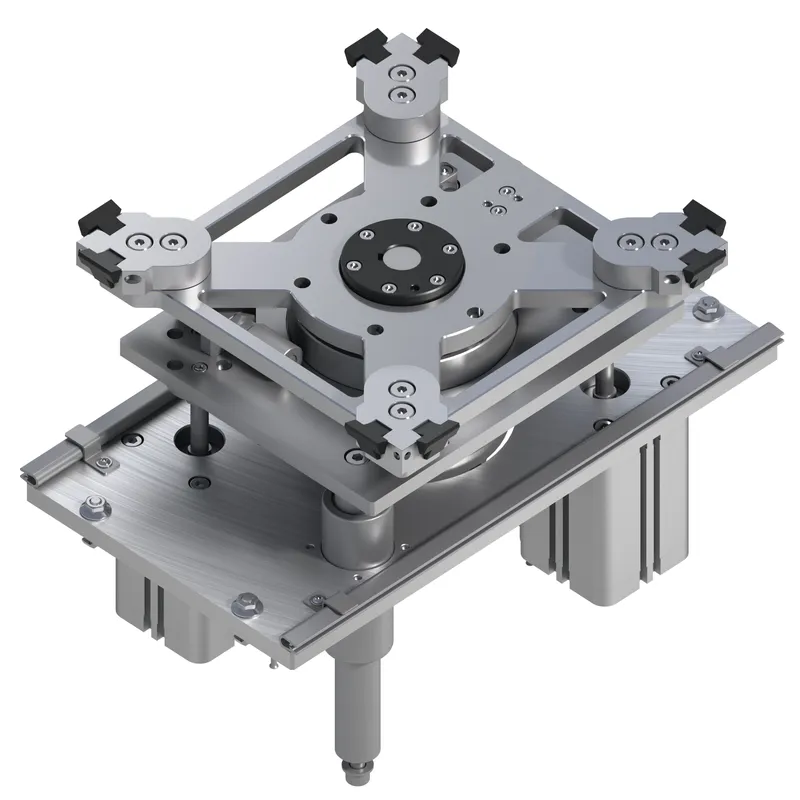

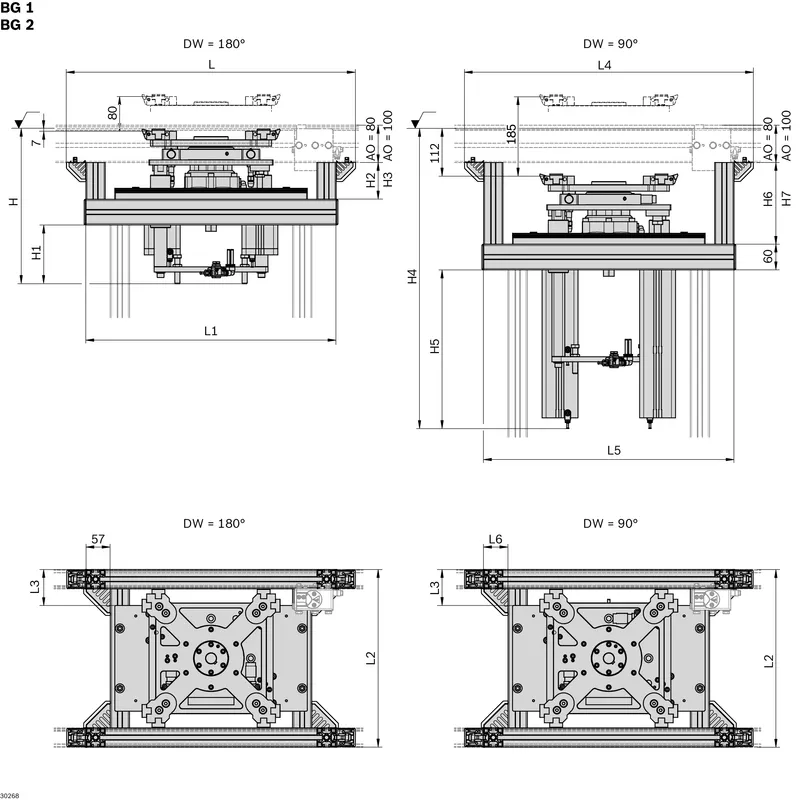

HD 2/H BG1 lift rotate unit WT lift above transportation level, approx. 50 mm Available in 3 sizes (BG) for WT total weights up to 240 kg <br>– BG 1 and BG 2 for use with workpiece pallets WT 2, WT 2/F and WT 2/LS (only with version LS) <br>– BG 3 for use with workpiece pallets WT 2/H and WT 2/F-H Rotation by 90° or 180° <br>– For rotating square workpiece pallets by 90° or 180° <br>– For rotating non-square workpiece pallets by 180° <br>– For 90° rotation, the reverse rotation for BG 1 and BG 2 takes place below the belt. Reduced cycle times by means of reverse rotation during workpiece pallet change. For BG 3 and 90° rotation, the reverse rotation takes place above the belt<br>– Center position only with BG 1 and BG 2 in 90° version
Specifications
Specifications
| ESD | Yes |
| Workpiece pallet total weight [mG] [kg] | 50 |
| Lift of WT over conveyor medium [h0] | 50 |
| Length in direction of transport [lT] [mm] | 240; 320; 400; 480 |
| Scope of delivery | 2x damper for end positions of the rotary movement; Incl. fastening material for assembly on conveyor sections; Pneumatic elements such as fittings, throttle non-return valves, etc. for the top/center/bottom lift positions |
| Delivery information | Fully assembled |
| Notice | For use with WT 2 and WT 2/F workpiece pallets only; Only possible for DW = 90° quadratic workpiece pallets |
| Workpiece pallet width [bWT] [mm] | 240; 320; 400 |
| Required accessories | Cylinder switch (0830100433) for the top/center/bottom lift positions; Protective housings; Sensor for the rotary movement at 0°/180° or 0°/90°; Supports for BG 2 from 50 kg; Supports for BG 3 generally |
| Recommended accessories | For BG 3: Stop gate VE 2/D-100, VE 2/D-250; VE 2 stop gate or VE 2/D stop gate for damped stopping of a workpiece pallet |
| Weight [kg] | 0 |
