Bosch Rexroth 3842998745

DAMPER DA 2/100-H

MPN: 3842998745
Category: Damper TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998745?

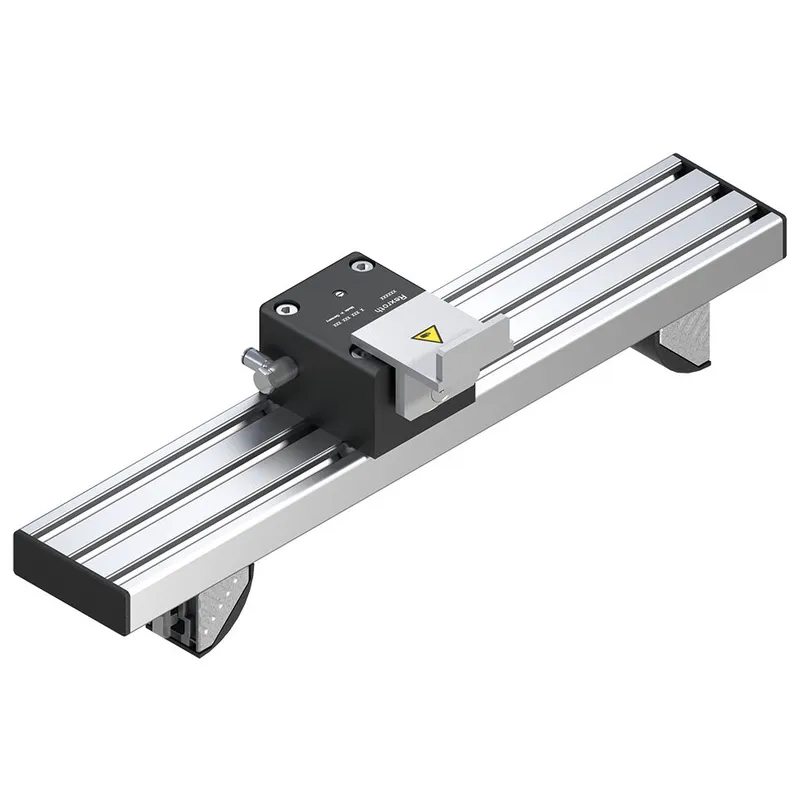

DA 2/100-H Damper

For permitted total weight of workpiece pallets up to 100 kg

Pneumatic damper

Infinitely adjustable

Installation location: HQ 2/C-H lift transverse unit

Can be combined with WT 22/H and WT 2/F-H

The damper cushions the impact of the arriving workpiece pallets when they are moved from a transverse section into a longitudinal section and vice versa

The pneumatic return occurs as the stop gate opens, which permits the workpiece pallet to move toward the damper

For installation in a lift transverse unit HQ 2/C-H

The damper is traversable

Specifications

ESD	Yes
Operating temperature [T] max	0 … +60 °C
Workpiece pallet total weight [mG] [kg]	100
Pneumatic straight connection [Ø] [mm]	6
Track width in the longitudinal conveyor min [bL min] [mm]	480
Track width in the longitudinal conveyor [bL max] [mm]	1200
Scope of delivery	DA 2/100-H damper for infeeding or outfeeding the WT 2/H or WT 2/F-H workpiece pallets via an HQ 2/C-H; Incl. fastening material
Delivery information	Not assembled
Notice	High-temperature damper on request
Preferred values [mm]	1040; 1200; 480; 640; 800
Material information	Housing: Aluminum, hard anodized; Section profile: Aluminum, natural; anodized; Stop: Steel, hardened
Min. workpiece pallet weight m	5 kg
Weight [kg]	0
