Bosch Rexroth 3842998522
SECTION MODULE ST 5/H-FR
- MPN
- 3842998522
- Category
- Conveyor units with full rollers
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842998522?

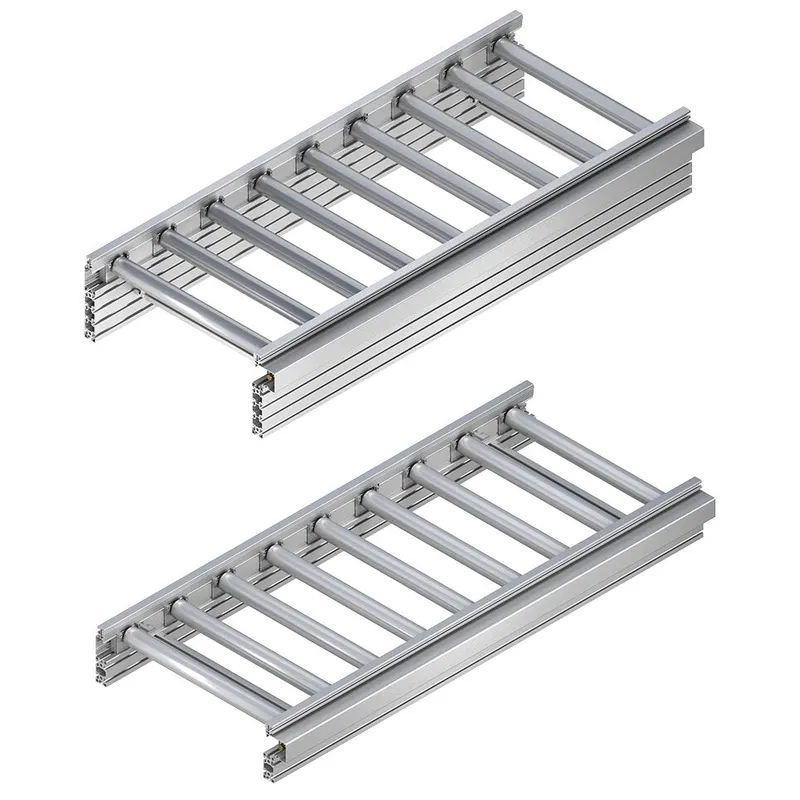

ST 5/H-FR conveyor unit
The conveyor unit is a ready-for-operation module, which is particularly suitable for transporting workpieces without workpiece pallets
Note: Depending on the roller spacing, the use of ST 5/...-FR conveyor units with workpiece pallets is limited. Other roller spacings available on request
Reversible operation possible
Accumulation operation possible
Support profile made of anodized aluminum
Permissible section load: ST 5/XH-FR: 380 kg/m and ST 5/H-FR: 200 kg/m
Lateral guide profile made of steel, polymer, or aluminum in an anodized aluminum support
Driven via king shaft with bevel wheels made of polymer or sintered metal
Suitable for clean room of ISO class 7
Suitable for dry room <1% RH
Specifications
Specifications
| Length max [l max] [mm] | 390 |
| Length min [L min] [mm] | 4160 |
| Lateral guide material [LG] | 1 = Stahl; 2 = Kunststoff; 3 = Aluminium |
| Roller material [TR] | 1 = Stahl, verzinkt; 2 = Stahl, nitrocarburiert |
| Number of rollers [N] | 3; 4; 5 ... 32 |
| Workpiece pallet length [lWT] [mm] | 1040; 455; 650; 845 |
| Delivery information | Ready-to-install |
| Preferred values [mm] | 1040; 455; 650; 845 |
| Material information | Bevel wheel: Plastic or sintered metal; Lateral guide: Steel, plastic or aluminum; Roller: Steel, galvanized or steel, nitrocarburized |
| Required accessories | AS 5/... drive unit; Connection Kits; SZ 5/... leg set |
| Weight [kg] | 0 |
