Home / Bosch Rexroth / Stop gate TS 5 / Bosch Rexroth 3842998518

Bosch Rexroth 3842998518

STOP GATE VE 5/200

MPN: 3842998518
Category: Stop gate TS 5

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998518?

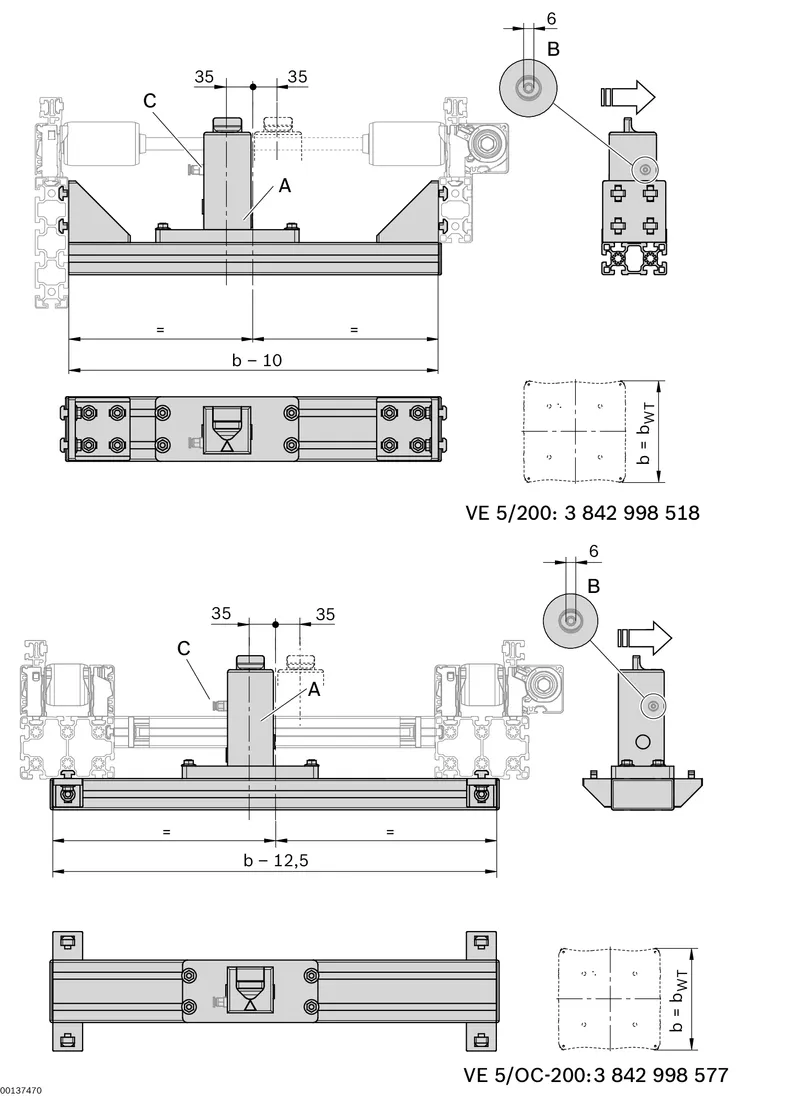

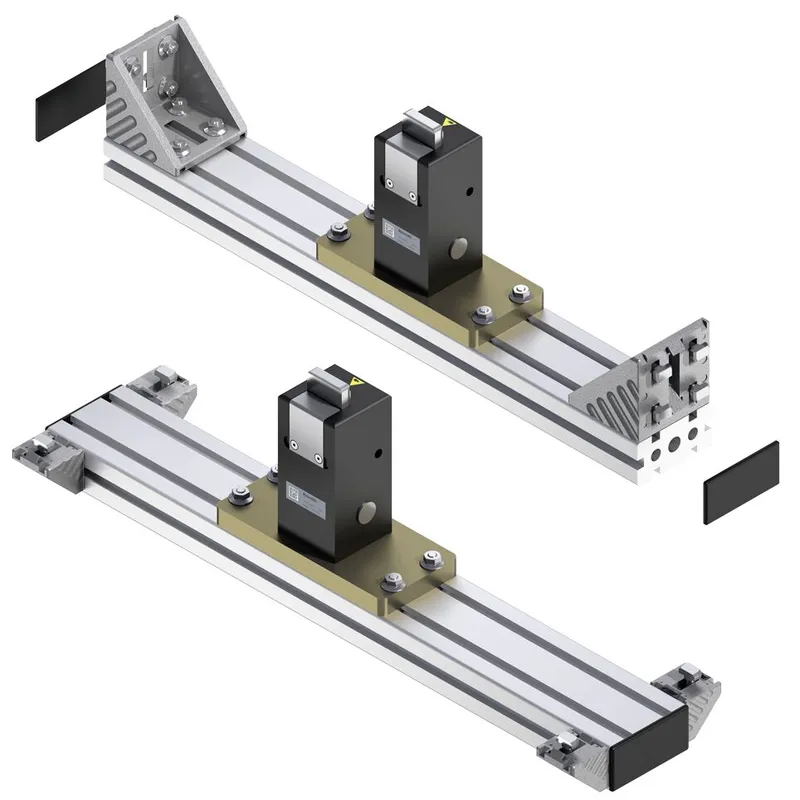

VE 5/200 stop gate

Stopping one or more accumulating workpiece pallets at the defined workpiece pallet stop surface.

Pneumatic stop gate. When the pressure is released the stop gate is closed by a spring and the workpiece pallet is stopped.

Compressed air connection: 5 ... 6 bar

Pneumatic push-in fitting: 6 mm

Specifications

required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	5
Nominal speed [vN]	9 m/min
Pneumatic straight connection [Ø] [mm]	6
Workpiece pallet total weight [mG] [kg]	200
Scope of delivery	Incl. fastening material for installation on conveyor section; Push in air connection ø 6 mm
Delivery information	Not assembled
Preferred values [mm]	1040; 455; 650; 845
Recommended accessories	1x sensor, 3 842 549 811 or 3 842 549 814, for position inquiry (engaged, top position/not engaged, bottom position); Clamping holder for sensors
Weight [kg]	0
