Bosch Rexroth 3842998521

SECTION MODULE ST 5/XH

MPN: 3842998521
Category: Conveyor units with split rollers

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998521?

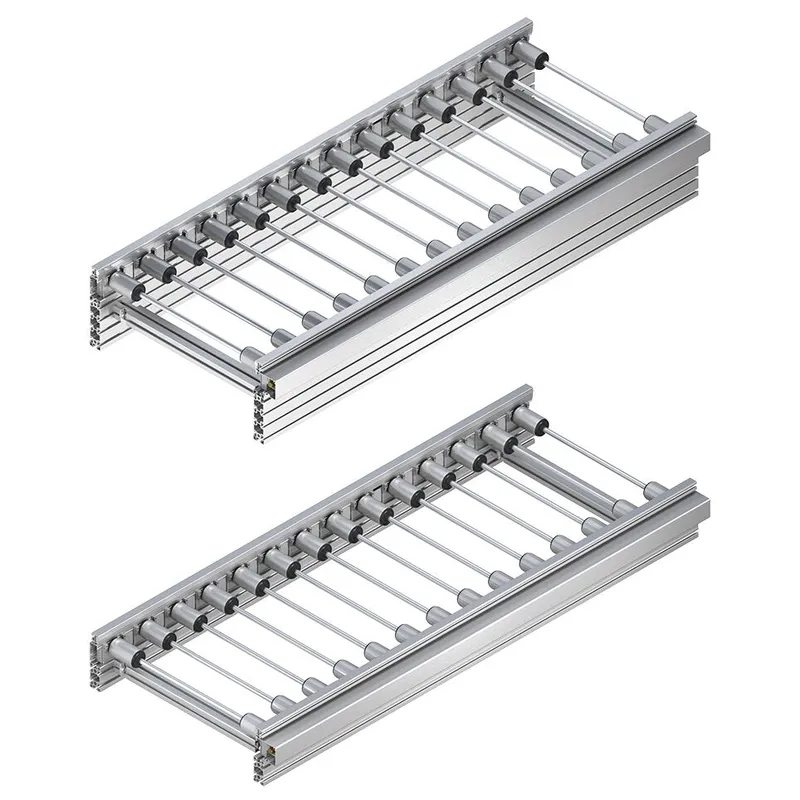

ST 5/XH conveyor unit

The conveyor unit is a ready-for-operation module used to transport workpiece pallets

Reversible operation possible

Accumulation operation possible

Support profile made of anodized aluminum

Permissible section load for ST 5/XH: 380 kg/m

ST 5/H: 200 kg/m

Lateral guide profile made of steel, polymer, or aluminum in an anodized aluminum support

Driven via king shaft with bevel wheels made of polymer or sintered metal

Suitable for clean room of ISO class 7

Suitable for dry room Notice: Other roller spacings available on request.

Specifications

Length max [l max] [mm]	390
Length min [L min] [mm]	4160
Lateral guide material [LG]	1 = Stahl; 2 = Kunststoff; 3 = Aluminium
Roller material [TR]	1 = Stahl, verzinkt; 2 = Stahl, nitrocarburiert
Number of rollers [N]	3; 4; 5 ... 32
Workpiece pallet length [lWT] [mm]	1040; 455; 650; 845
Delivery information	Ready-to-install
Preferred values [mm]	1040; 455; 650; 845
Material information	Roller: Steel, galvanized or steel, nitrocarburized; Bevel wheel: Plastic or sintered metal; Lateral guide: Steel, plastic or aluminum
Required accessories	AS 5/... drive unit; Connection Kits; SZ 5/... leg set
Weight [kg]	0
