Bosch Rexroth 3842998525

CURVE CU 5/H

MPN: 3842998525
Category: Curves TS 5

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998525?

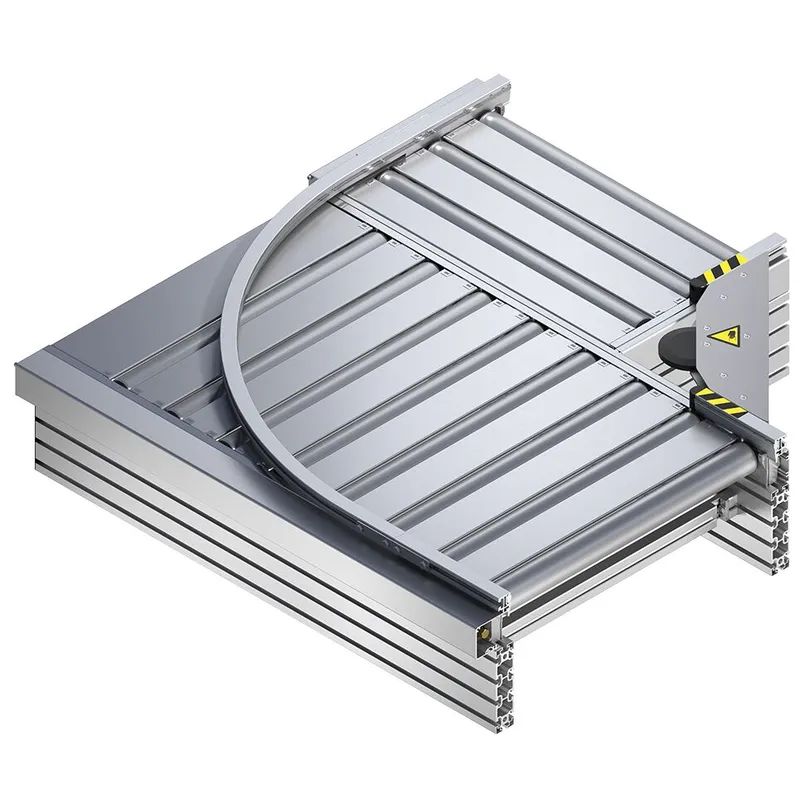

CU 5/H curve

The curve is a ready-for-operation module for branching transport of workpiece pallets. Curves can be driven either on the inside or on the outside.

Note: The curve is not suitable for accumulation operation. For permissible loads, see table (under order details).

Reversible operation possible

Accumulation operation not permitted

Support profile made of anodized aluminum

Lateral guide profile made of steel, polymer, or aluminum in an anodized aluminum support

Driven via king shaft with bevel gears made of sintered metal

Drive possible with AB 5

Roller spacing p = 130

Full rollers

m G Up to 300 kg (at v = 9 m/min)

Specifications

Lateral guide material [LG]	1 = Stahl; 2 = Kunststoff; 3 = Aluminium
Roller material [TR]	1 = Stahl, verzinkt; 2 = Stahl, nitrocarburiert
Number of rollers [N]	10; 11; 13; 10; 11; 13

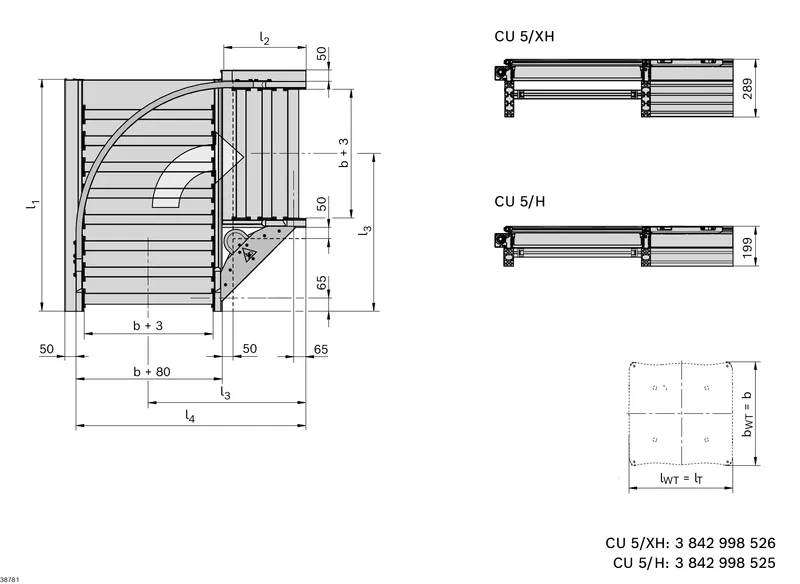

Length of main section [l1] [mm]	1149; 1376.5; 921.5
Length of secondary section [l2] [mm]	382.5; 415; 447
Length of secondary section up to center of main section [l3] [mm]	650; 780; 910
Length of secondary section and width of main section [l4] [mm]	1145; 1372.5; 917.5
Track width in direction of transport [b] [mm]	455; 650; 845
Track width [b] [mm]	455; 650; 845
Delivery information	Optional: Protective covers mounted (protective covers cannot be ordered separately); Ready-to-install
Notice	l<sub>1</sub> = length of main section; l<sub>2</sub> = length of secondary section; l<sub>3</sub> = length of secondary section up to center of main section; l<sub>4</sub> = length of secondary section and width of main section
Weight [kg]	0
