Bosch Rexroth 3842998517

STOP GATE VE 5/D-300

MPN: 3842998517
Category: Stop gate TS 5

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998517?

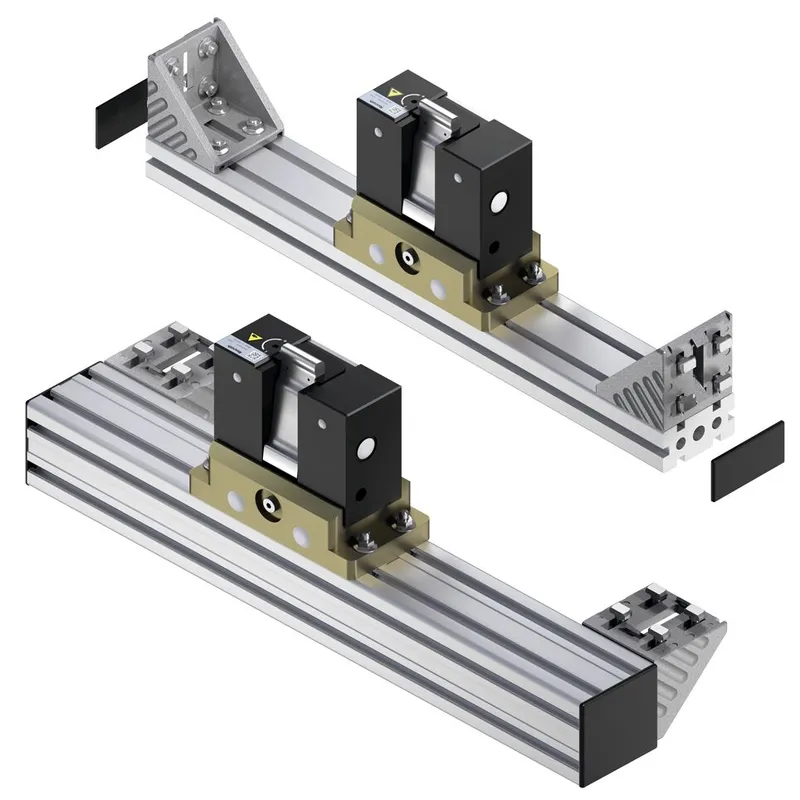

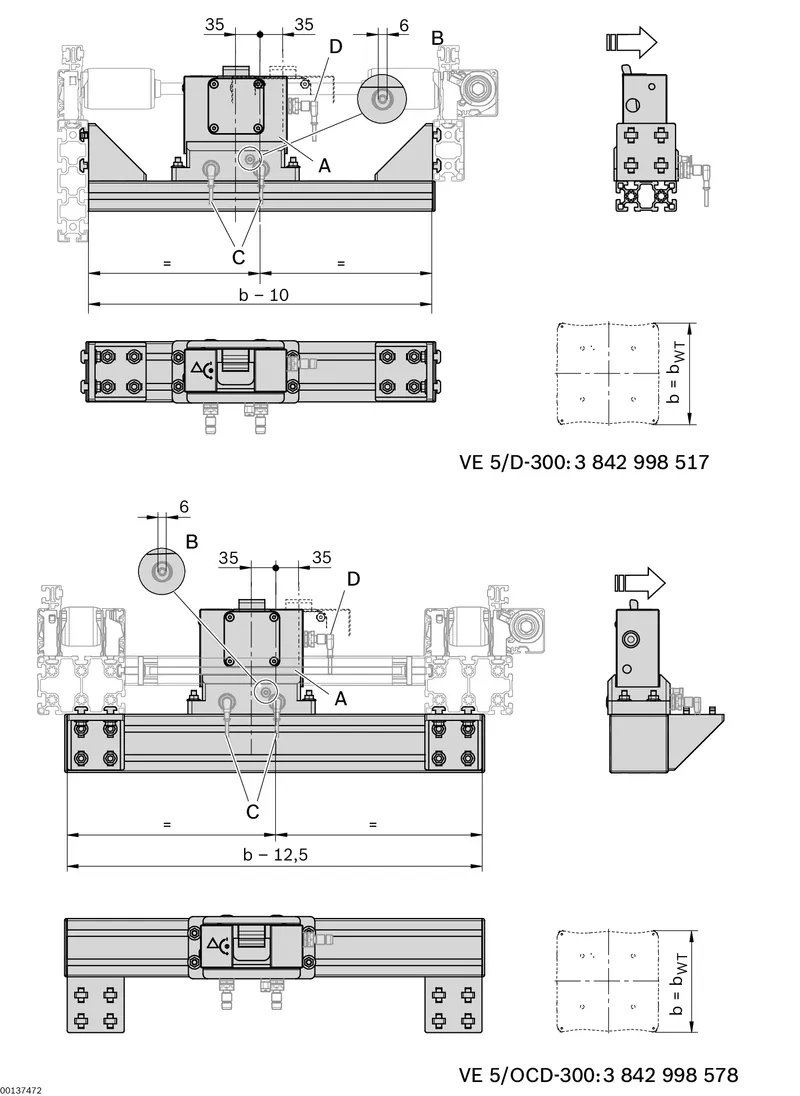

VE 5/D-300 stop gate

Damped stopping of one or more accumulating workpiece pallets at the defined workpiece pallet stop surfaces.

Pneumatic stop gate with steplessly adjustable damping. When the pressure is released the stop gate is closed by a spring and the workpiece pallet is stopped.

Compressed air connection: 5 ... 6 bar

Pneumatic connection, pushlock Ø 6 mm

Specifications

required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	5
Nominal speed [vN]	12 m/min; 18 m/min; 9 m/min
Pneumatic straight connection [Ø] [mm]	6
Workpiece pallet total weight [mG] [kg]	160; 260; 300
Scope of delivery	Incl. fastening material for installation on conveyor section; Push in air connection ø 6 mm
Delivery information	Not assembled
Preferred values [mm]	1040; 455; 650; 845
Recommended accessories	3x sensors 3 842 549 811 or 3 842 549 814 for stop gate position inquiry (engaged, top position)<br/>- stop gate position inquiry (not engaged, bottom position)<br/>- position inquiry damper (handle retracted: yes/no)<br/>- clamping holder for sensor trap guard
Weight [kg]	0
