Bosch Rexroth 3842998178

POSITIONING UNIT PE 5/OC

MPN: 3842998178
Category: Positioning units TS 5

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998178?

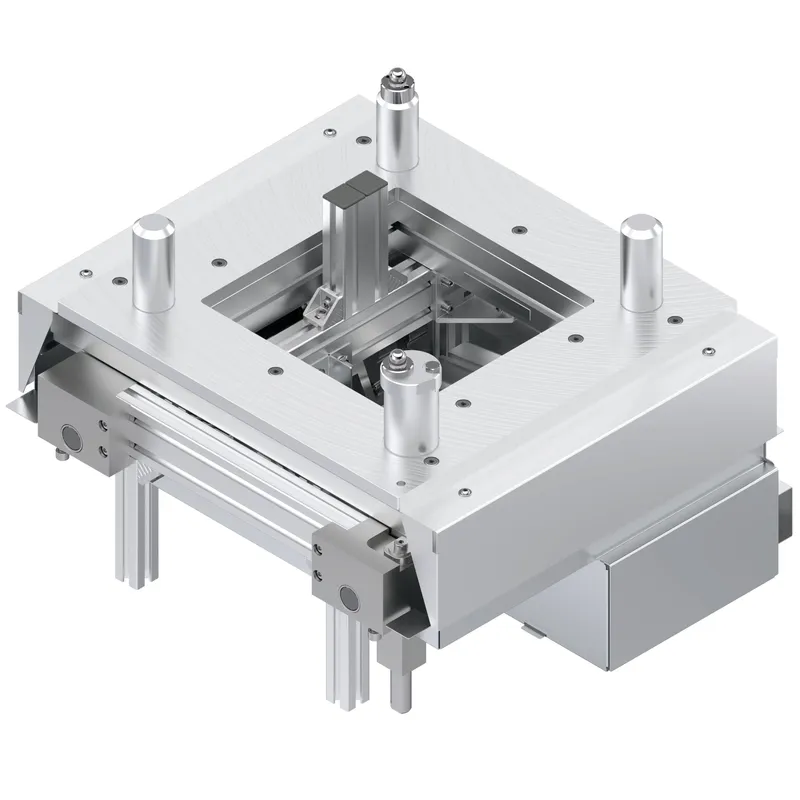

PE 5/OC positioning unit

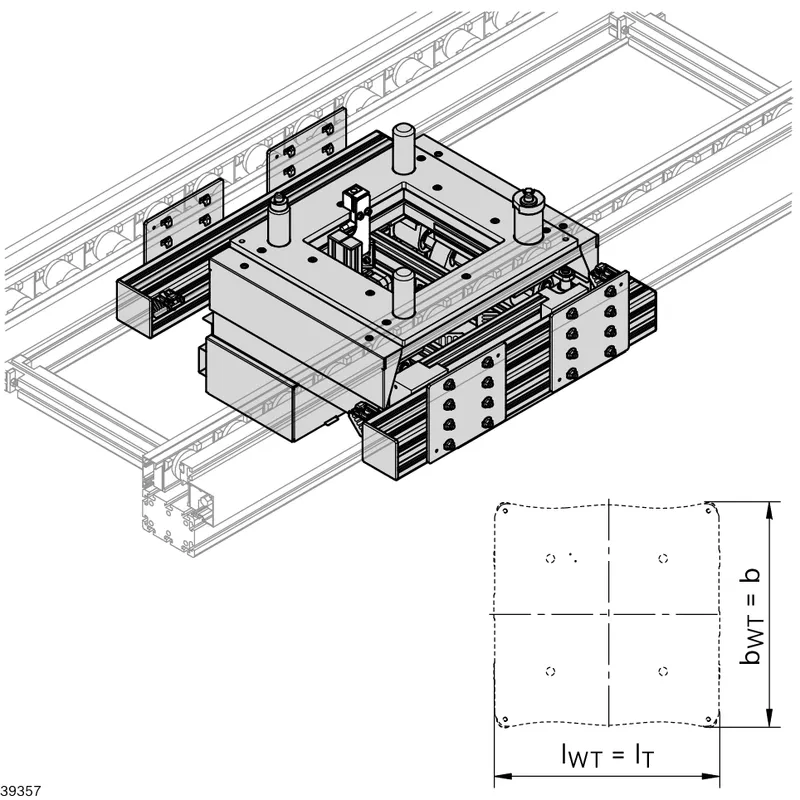

Positioning a workpiece pallet in a manual or automated processing station in the longitudinal conveyor with high positioning accuracy requirements (±0.3 mm)

Can be used with all WT 5 workpiece pallets

Installation from below

Lift over transport level: 5 mm

Positioning accuracy: ±0.3 mm in x and y direction

Permissible vertical process force with center load: up to 4000 Nregardless of the WT weight

Suitable for ST 5/OC

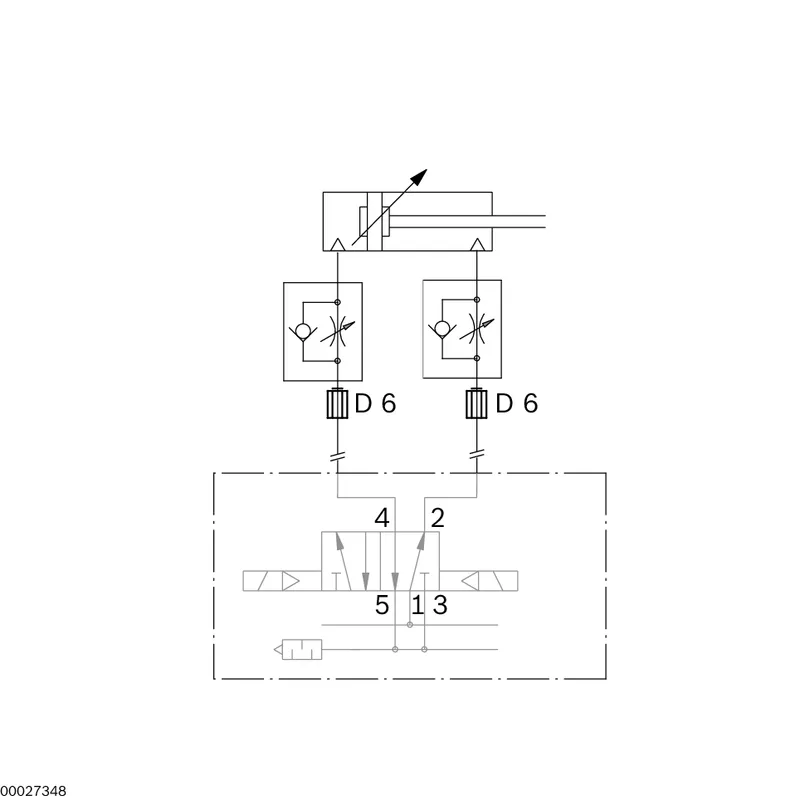

Compressed air connection: 5 ... 6 bar

Push in air connection: 8 mm

Specifications

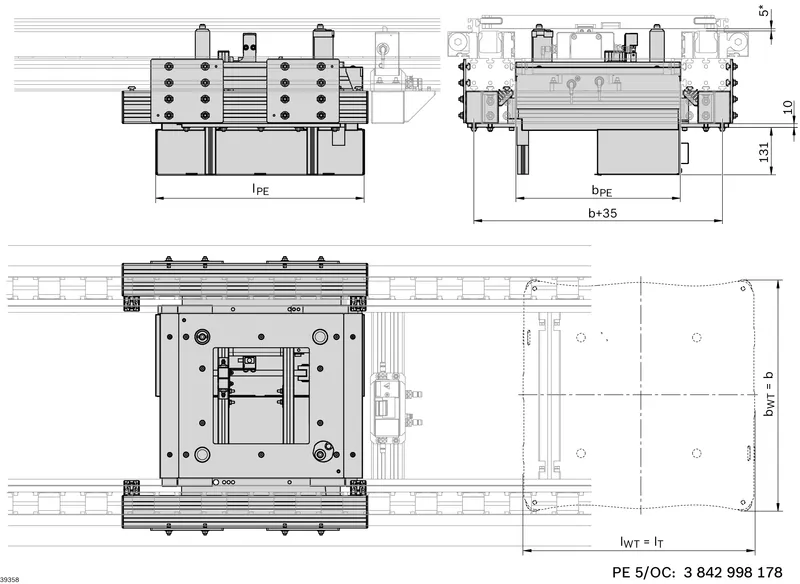

Length in direction of transport [lT] [mm]	1040; 455; 650; 845
Track width [b] [mm]	455; 650; 845
Positioning unit width [bPE] [mm]	259; 454; 649
Scope of delivery	Incl. fastening material for mounting the PE 5/OC in ST 5/OC conveyor sections
Delivery information	Fully assembled
Positioning unit length [lPE] [mm]	471; 576; 764; 996
Preferred values [mm]	455; 650; 845
Required accessories	Assembly kit SH 2/U‑H 3 842 545 132; Protective sleeves and protective cover; SH 2/U‑H 3 842 537 289 switch brackets; VE 5/200, VE 5/D‑300, VE 5/D‑301 or VE 5/D‑1000 stop gate
Recommended accessories	Lateral guide cover; Protective cover
Weight [kg]	0
