Bosch Rexroth 3842998013

ELT TRANSVERSE CONVEYOR EQ1/T

MPN: 3842998013
Category: Electrical transverse conveyor TS 1

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998013?

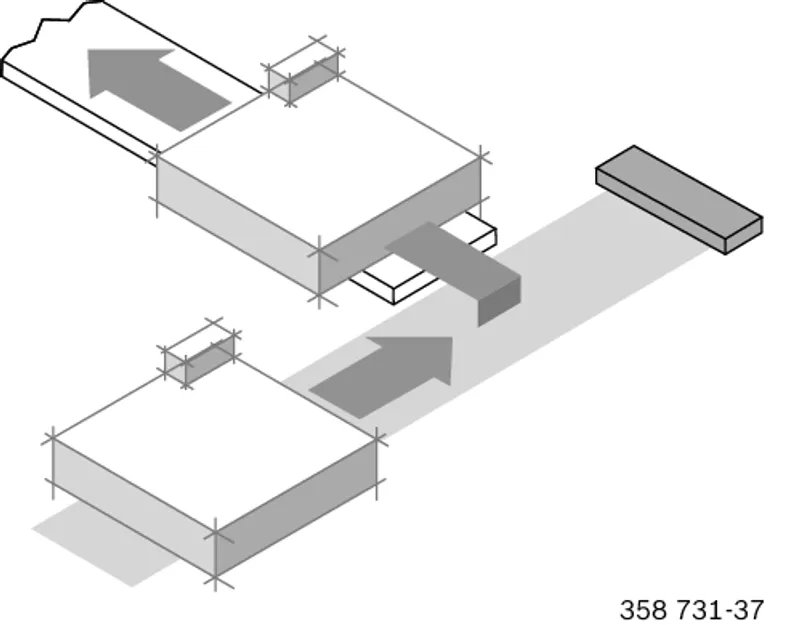

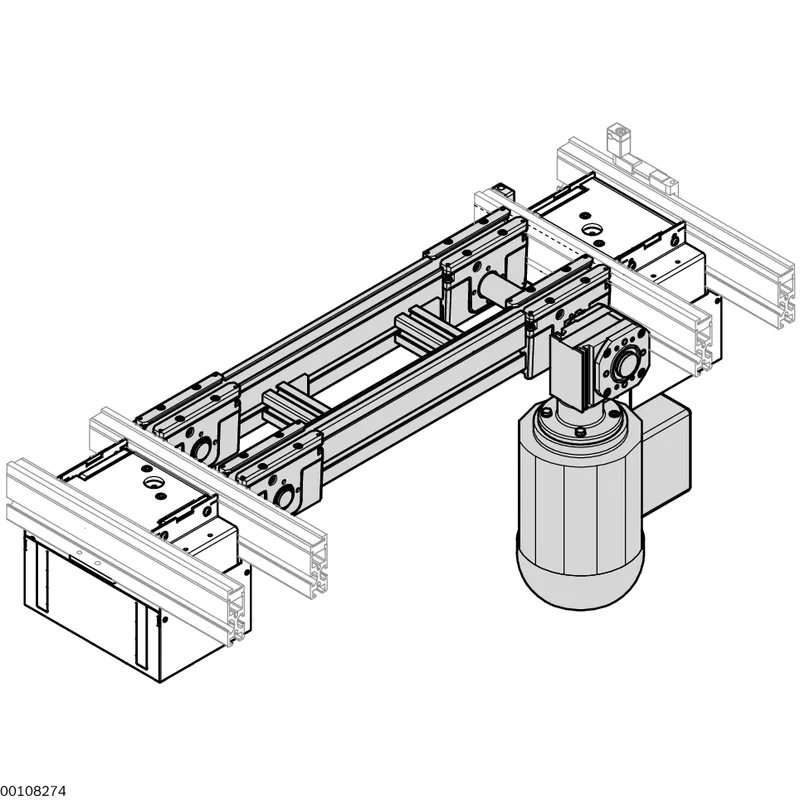

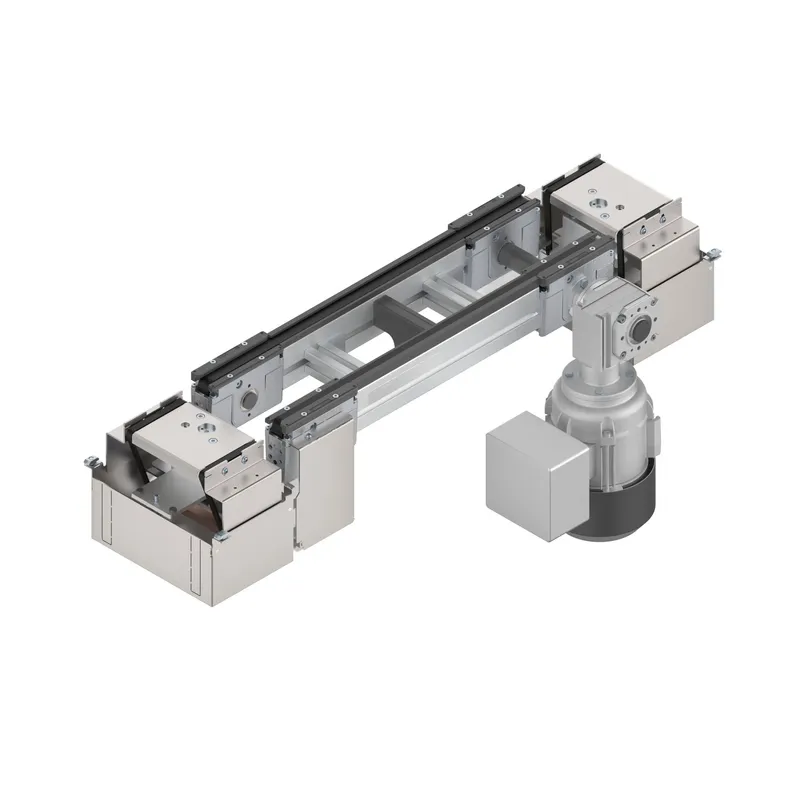

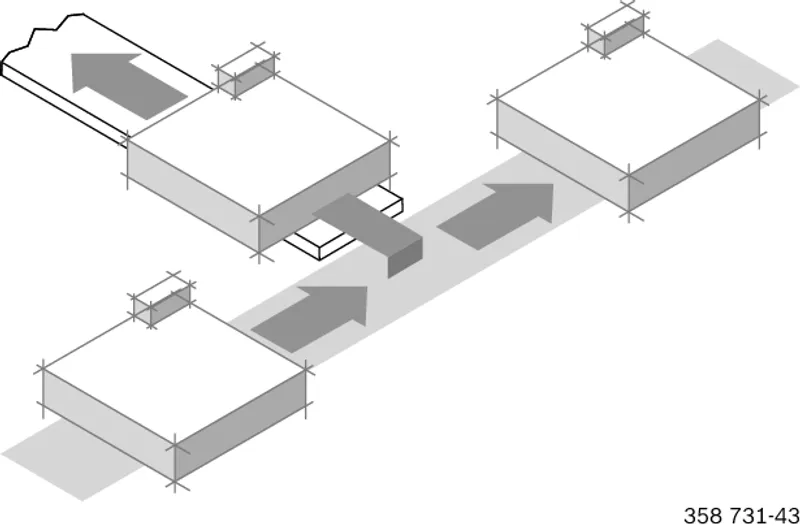

The electrical transverse conveyor EQ 1/T is used for connecting two parallel longitudinal sections with a distance between conveyors of > = 320 mm. The belt section and the two lift transverse units share a common motor. It is also suitable for use in ESD applications. Accumulation operation on the belt section and reversible operation are allowed.

Section load up to 30 kg

Lift cylinder – D = 25 mm

Total stroke: 13 mm

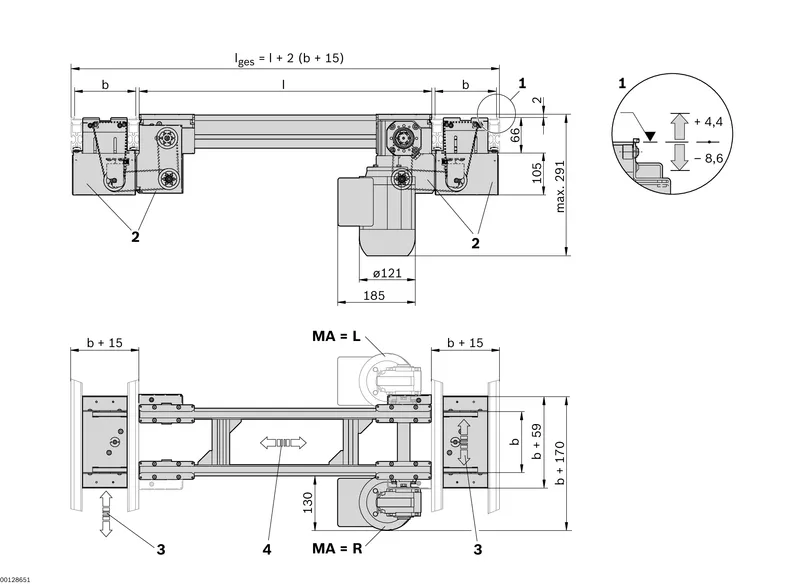

Motor mounting right (MA = R) or left (MA = L), with b = 160 mm also center (MA = M)

Conveyor medium: Toothed belt with mesh top, suitable for use in an EPA

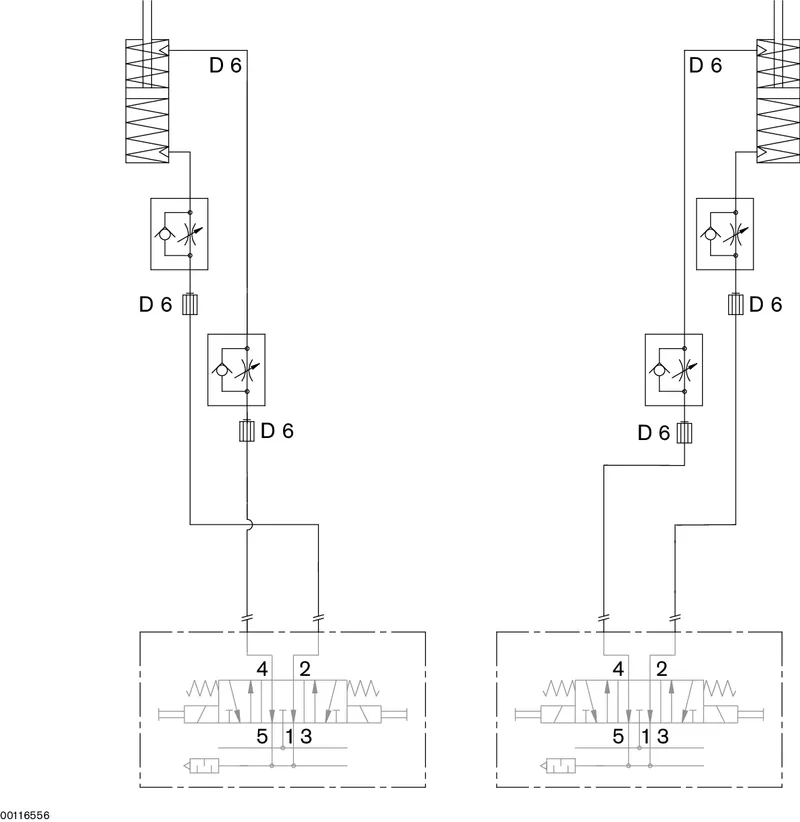

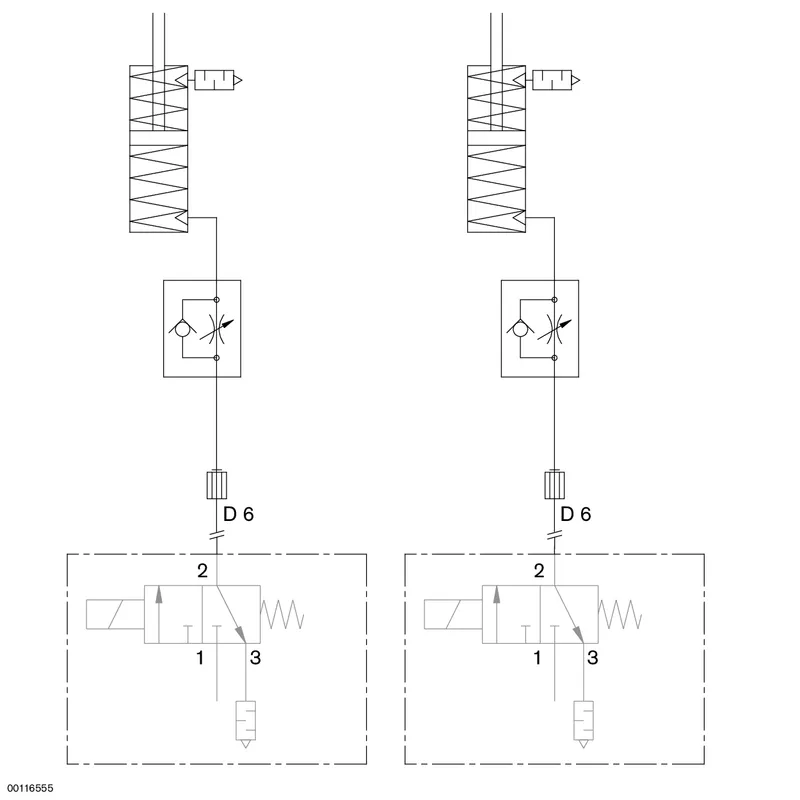

Pneumatic equipment for 2 (top, center) or 3 (top, center, bottom) lift positions

Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K)

Special models on request

Specifications

ESD	Yes
Length max [L max] [mm]	5000
Length min [L min] [mm]	320
Dry room [%rF]	<1
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Section load in accumulation operation [kg]	30
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Scope of delivery	Belt Section BS 1/T; Fastening material for installation between two ST 1 sections; Two lift transverse units, completely assembled; Two mounting kits for the drive of the lift transverse units; Two protective housings
Preferred values [mm]	120; 160; 80
Clean room classification	ISO class 7
Required accessories	Stop rail; Two throttle non-return valves M5 for air intake throttling
Recommended accessories	Damper DA 1; Depending on the installation situation, additional accessories may be required for transportation control:; M12x1 Sensor with Rated Sensing Range of S<sub>N</sub>≥ 4 mm, Cannot be Installed Flush, but Rather with 0.5 mm; Switch Bracket
Weight [kg]	0
