Bosch Rexroth 3842997023

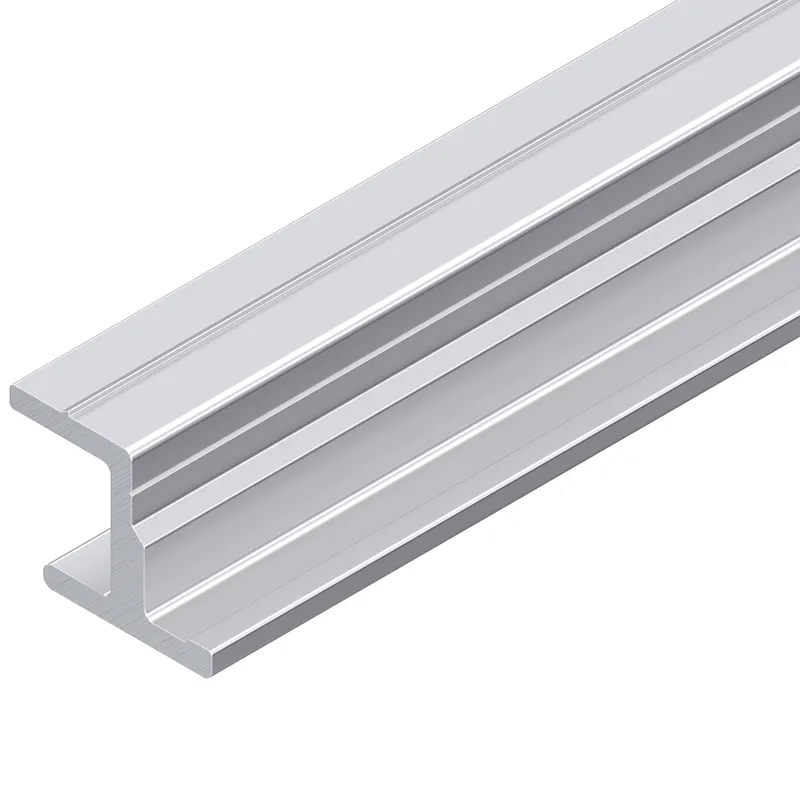

SUPPORTING STRUCTURE MB AL

MPN: 3842997023
Category: Maintenance section elements

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842997023?

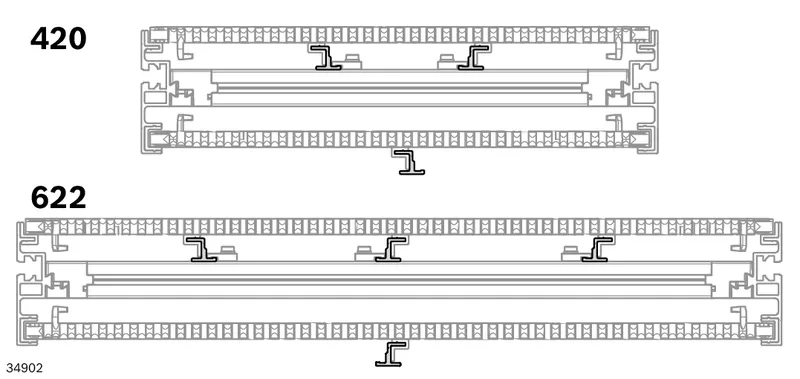

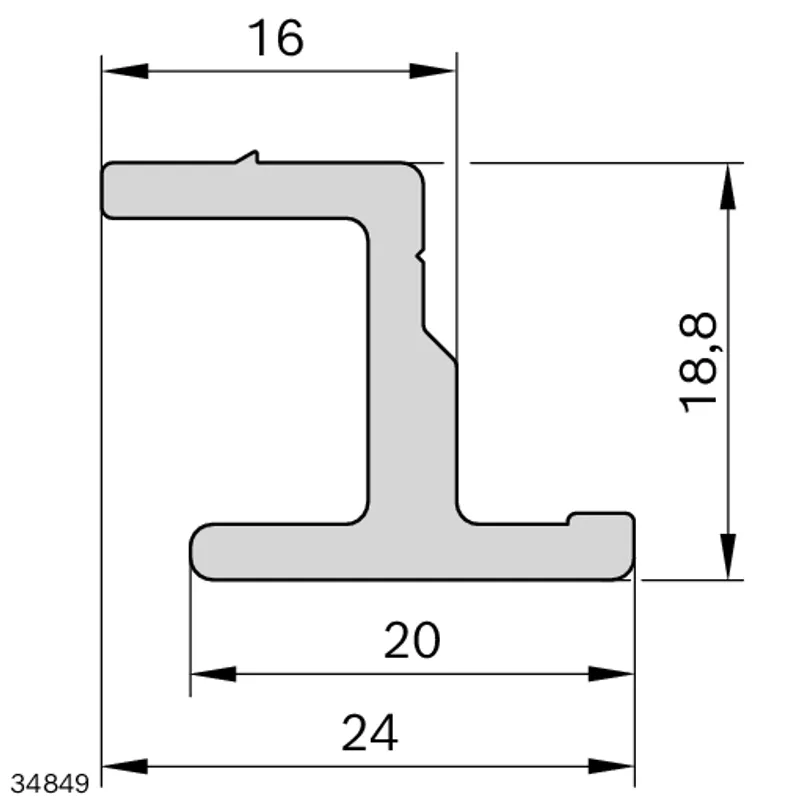

The main task of the support profile onto which the L-shaped sliding rail is clipped is to provide a running surface with the lowest possible friction and to reduce the wear of the modular belt. The system width determines the necessary number of support profiles. In the upper run, the support profile projects by 490 mm into the drive and by 197 mm into the return unit and must be designed accordingly longer. In the lower run, the support profile should be about 10 – 20 mm shorter than the section profile.

If necessary, the slide rail can be attached laterally using the centering groove as a drilling aid

The support profile is fastened to the cross connectors with the clamping piece

Specifications

Color	Natural
Delivery unit	1
Length max [L max] [mm]	3000
Length min [L min] [mm]	50
Material	Aluminum, anodized
Required accessories	Clamping piece, L-shaped sliding rail
Weight [kg]	0
