Bosch Rexroth

Bosch Rexroth 3842997022

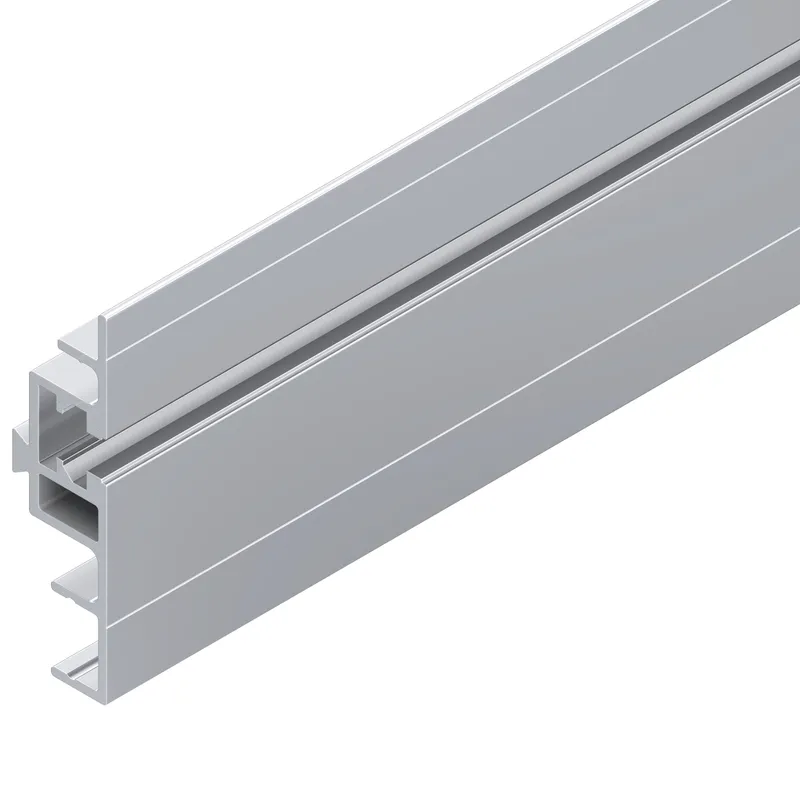

SECTION PROFILE MB AL 1/2 L VAR

MPN: 3842997022
Category: Maintenance section elements

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842997022?

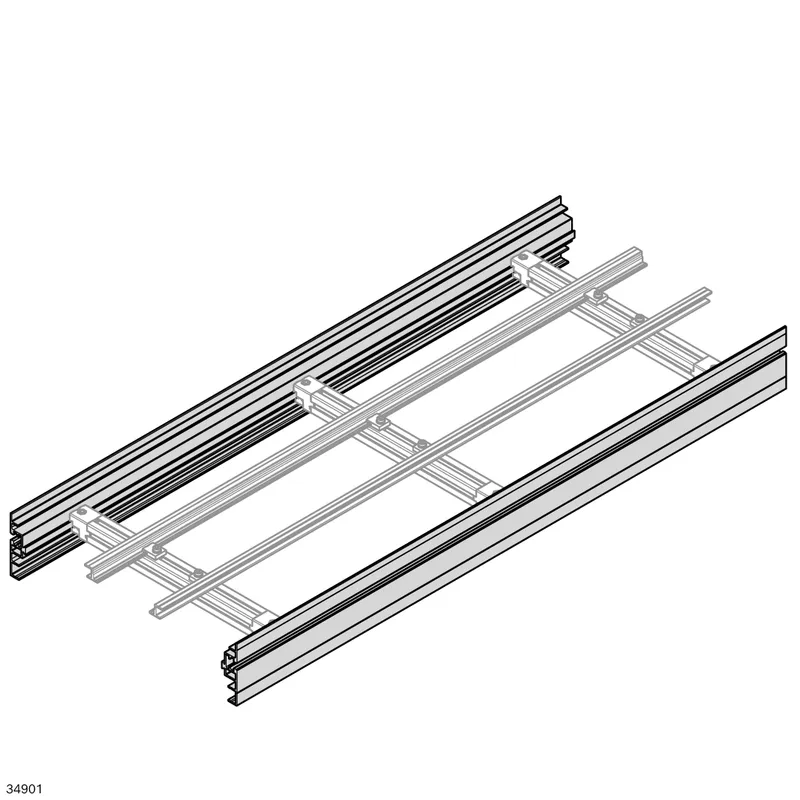

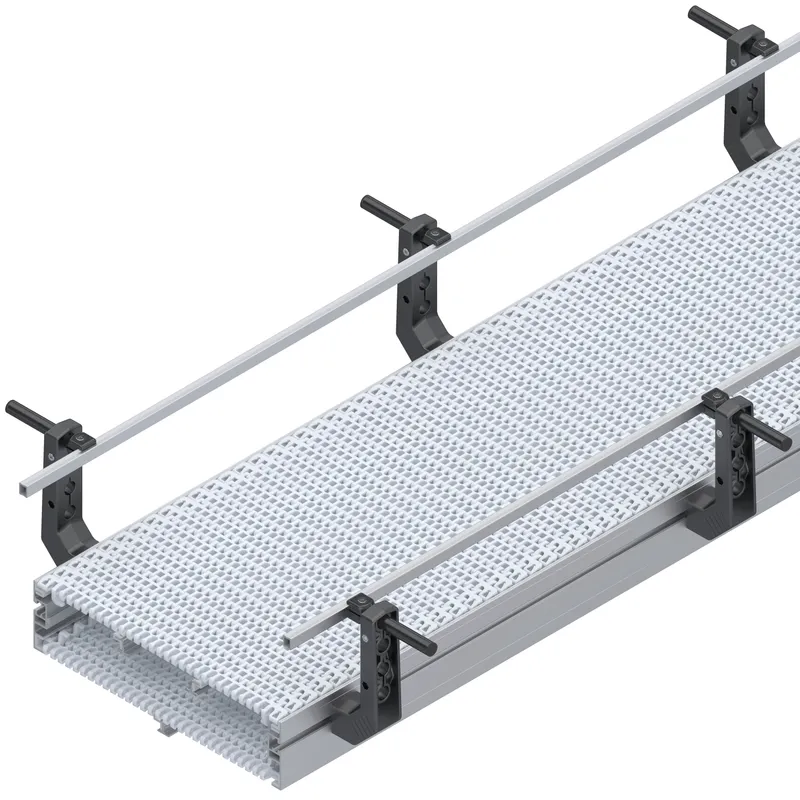

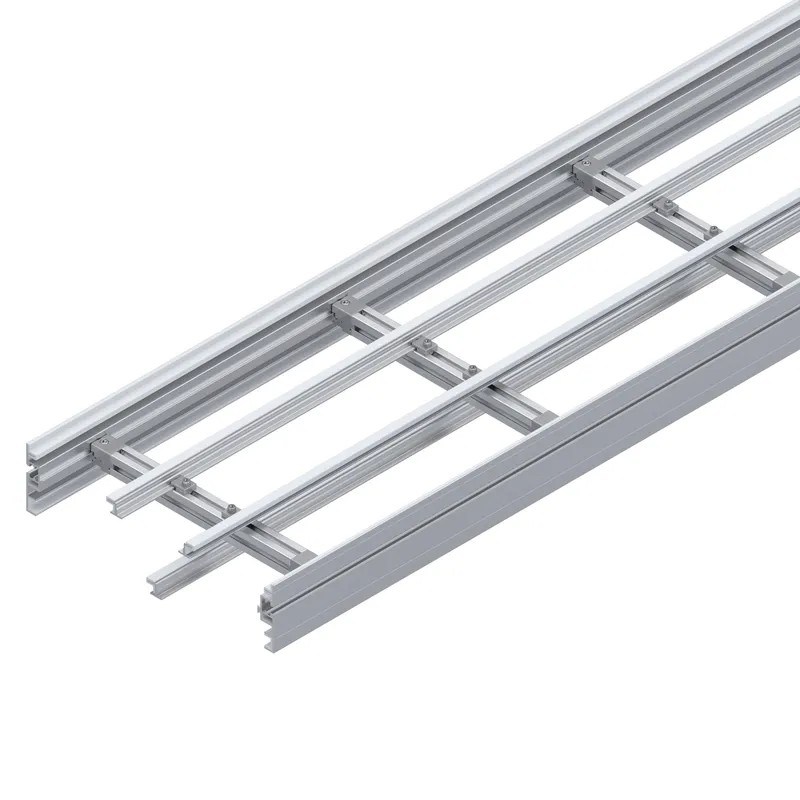

The section profile is the supporting element for the construction of straight conveyor sections and allows for the attachment of all required components. The open design of the section profile enables the

direct discharge of dirt or foreign particles

Slot on the inside for attaching main components such as drive/return unit, curves, etc.

If necessary, the slide rail can be attached laterally using the centering groove as a drilling aid

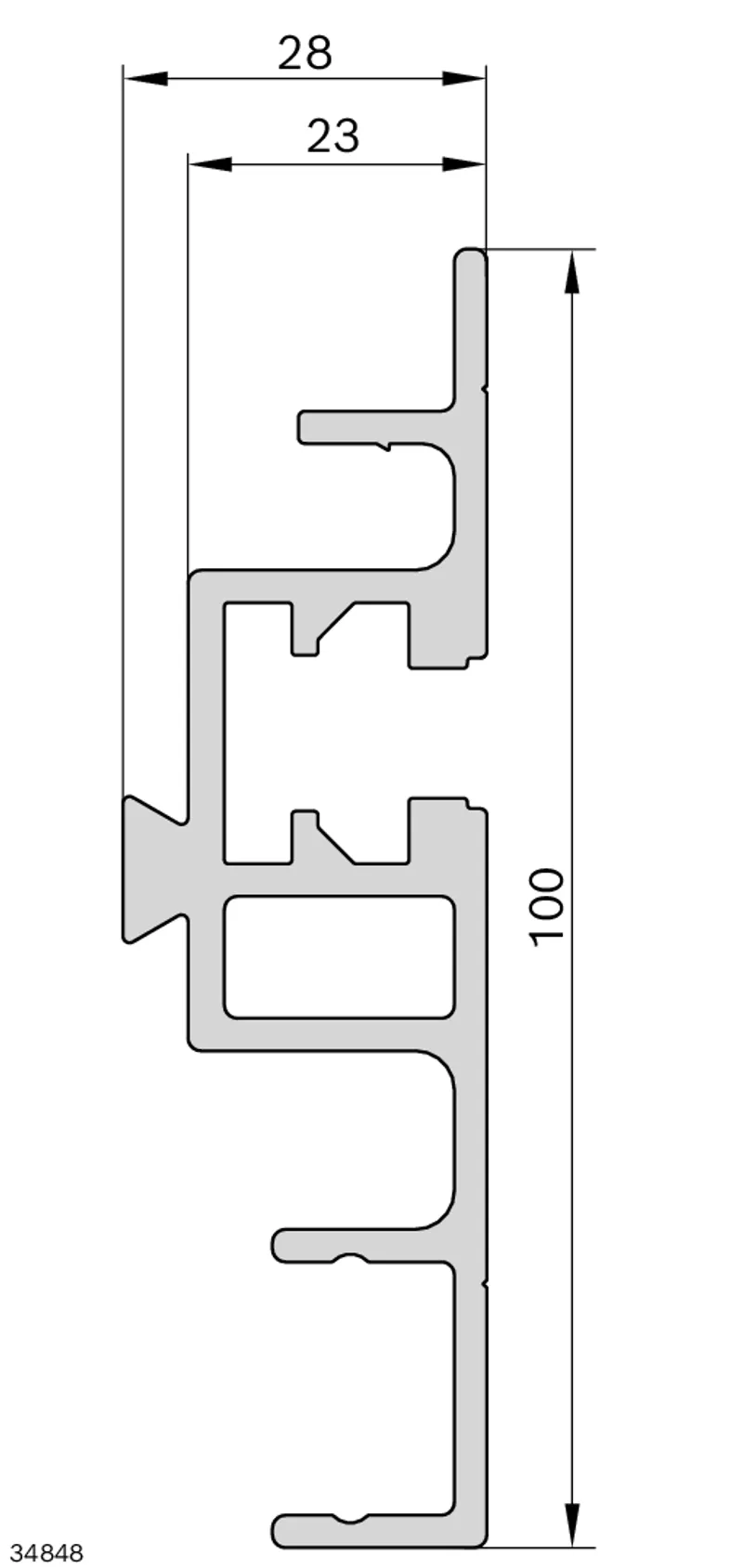

Same profile cross-section across all sizes

A 10 mm outside slot for simple fastening of lateral guides, leg sets, or other accessories

Special constructions can be attached quickly and simply with components from the modular aluminum framing system through the 10 mm outside slot

Specifications

Color	Natural
Delivery unit	1
Length max [L max] [mm]	6000
Length min [L min] [mm]	50
Material	Aluminum, anodized
Required accessories	Profile connector, clamping head, strut profile 30x30, central bolt S8x25, sliding rail L- and C-shape, support profile
Recommended accessories	Cover profile, flange nut; T-bolt, collar screw, T-nut
Weight [kg]	0
