Bosch Rexroth 3842998012

ELT TRANSVERSE CONVEYOR EQ1/TR

MPN: 3842998012
Category: Electrical transverse conveyor TS 1

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998012?

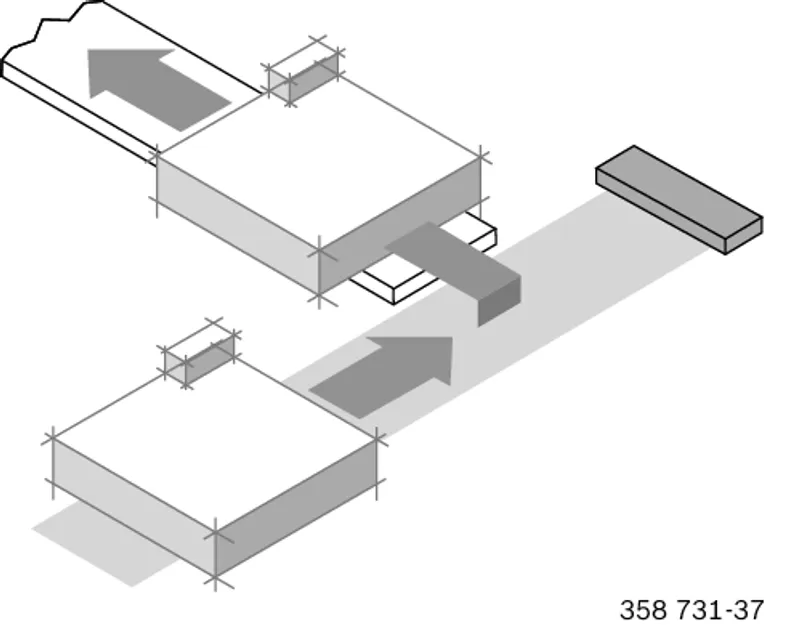

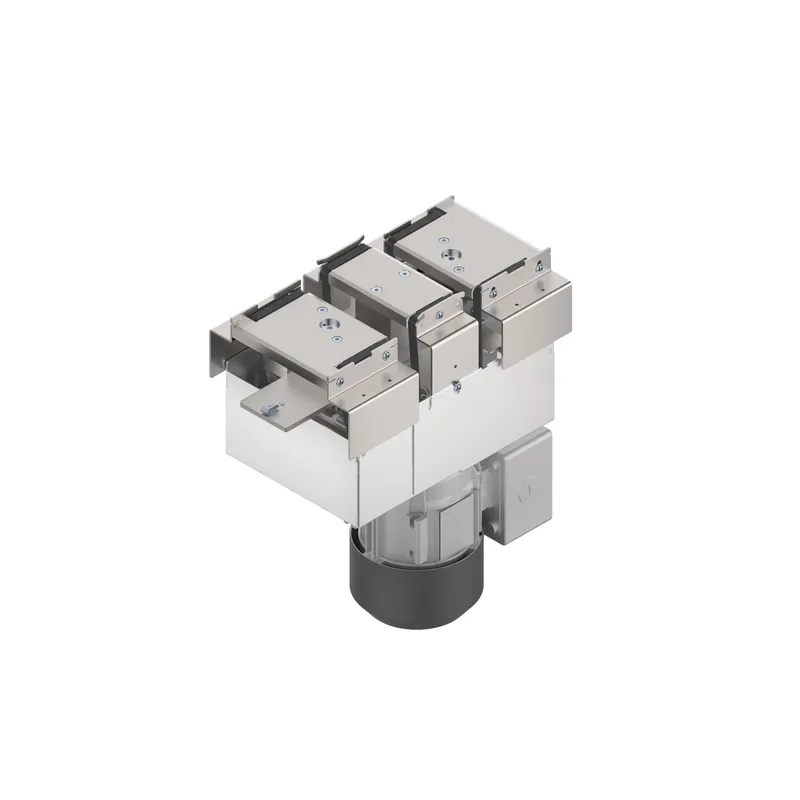

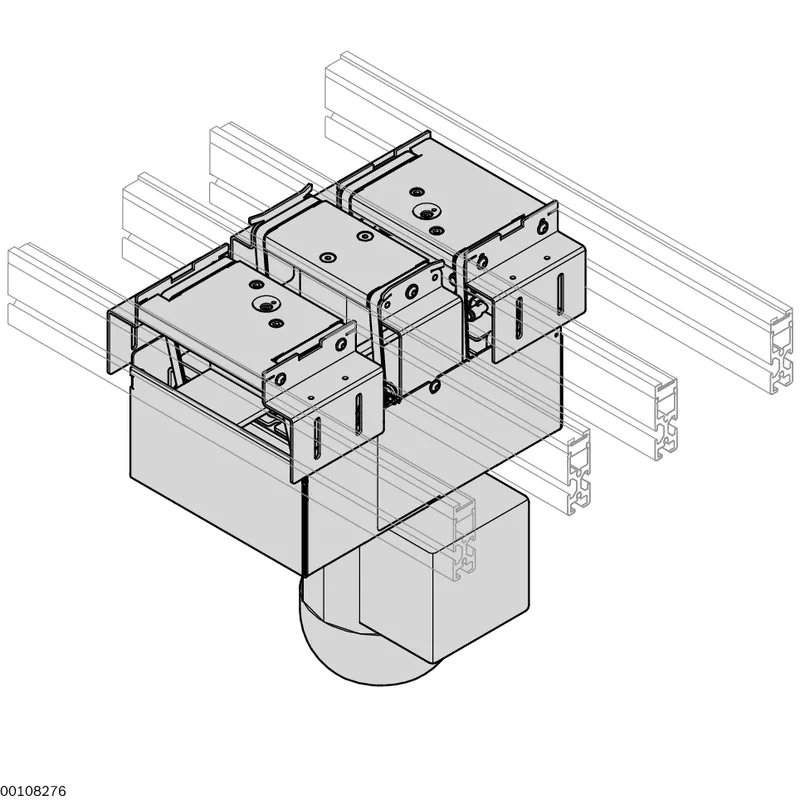

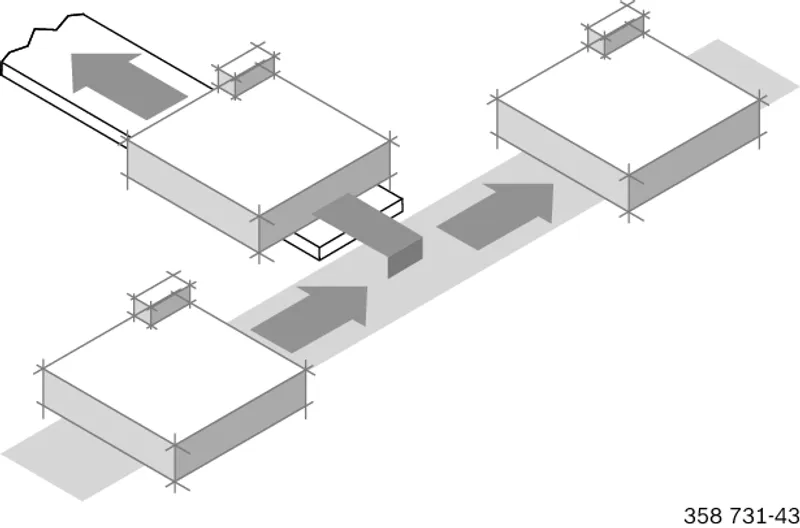

The electrical transverse conveyor EQ 1/TR is used for connecting two parallel longitudinal sections with a small distance between conveyors. It is also suitable for use in ESD applications. Accumulation operation not permitted.

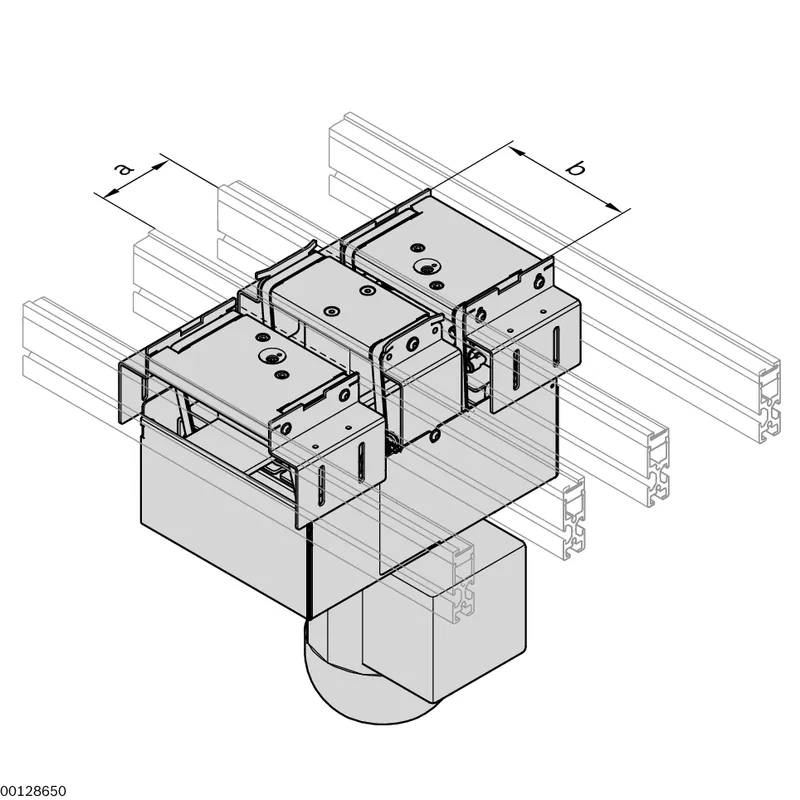

Available for belt distances a = 60 mm or a = 135 mm

Lift cylinder – D = 25 mm

Total stroke: 13 mm

Conveyor medium: Toothed belt with mesh top, suitable for use in an EPA

Pneumatic equipment for 2 (top, center) or 3 (top, center, bottom) lift positions

Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K)

Special models on request

Specifications

ESD	Yes
Dry room [%rF]	<1
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	3
Pneumatic straight connection [Ø] [mm]	4
Scope of delivery	EQ 1/TR, completely assembled; Fastening material for installation between two ST 1 sections; Protective housing
Preferred values [mm]	120; 160; 80
Clean room classification	ISO class 7

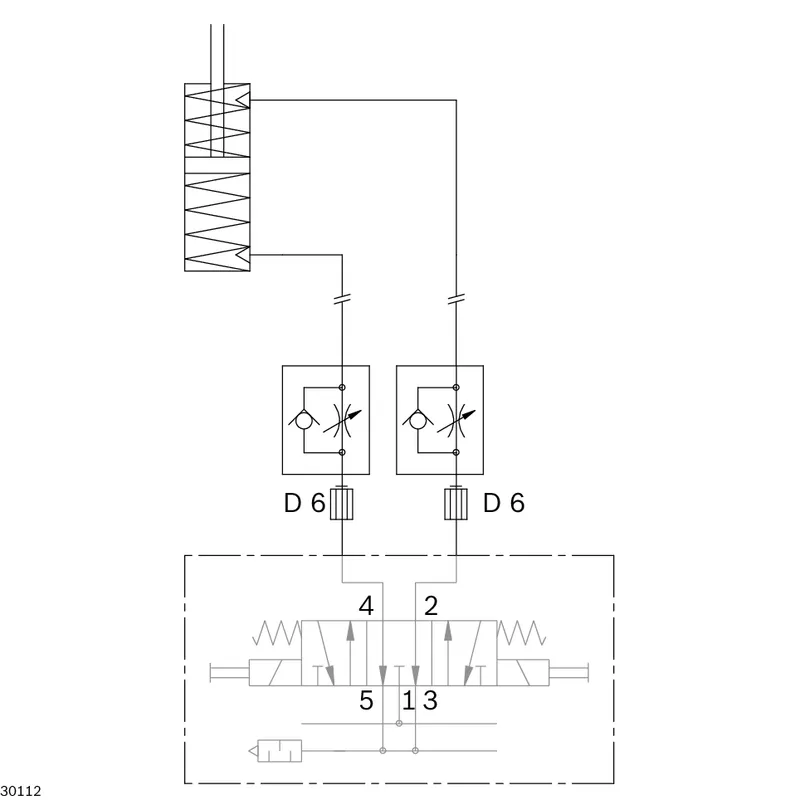

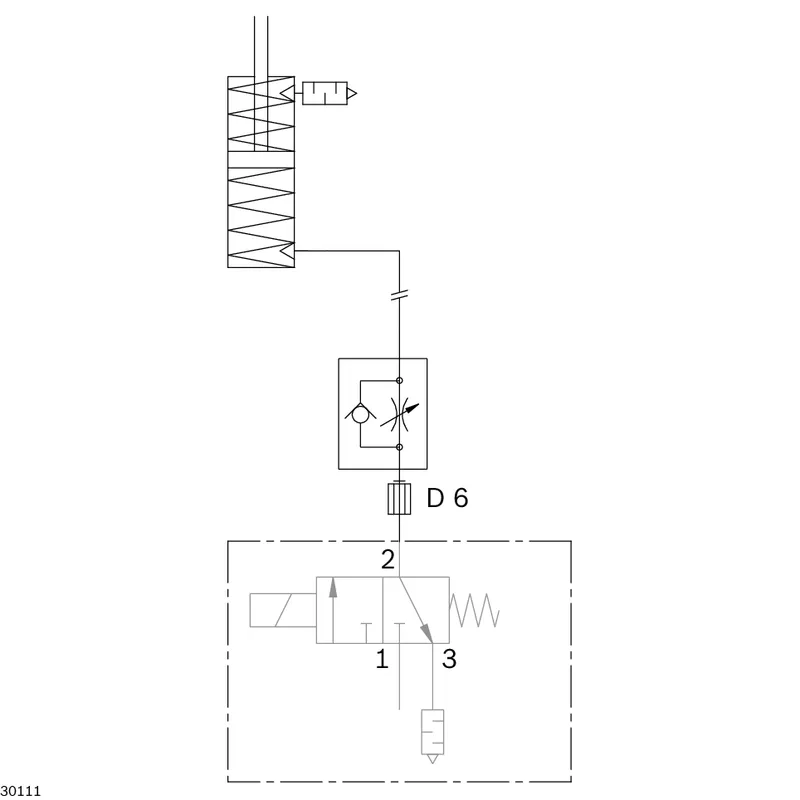

Pneumatic circuit diagram	— • — Not included in the scope of delivery

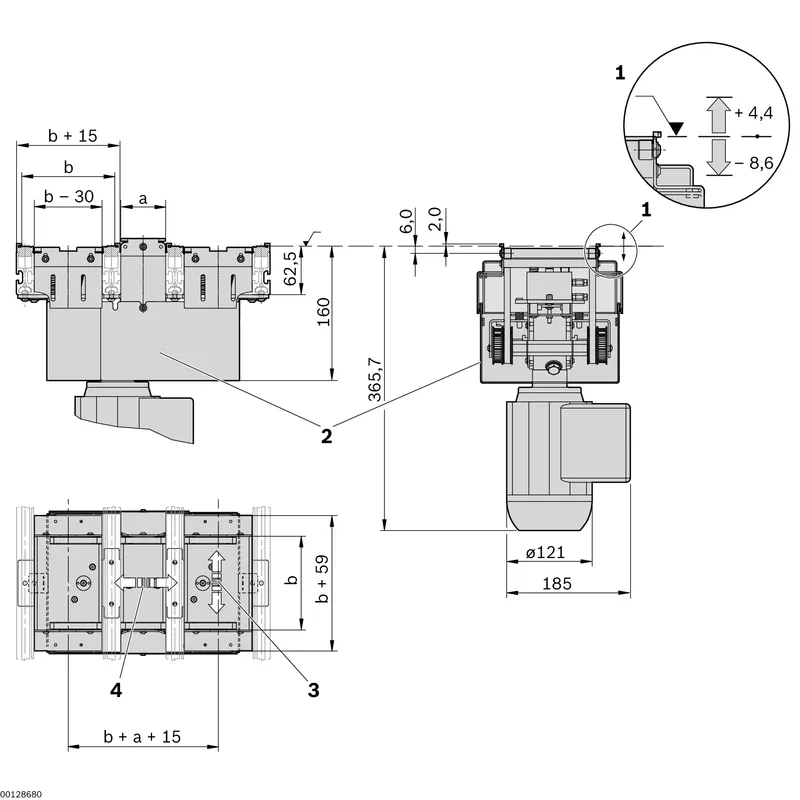

Dimension drawing	1 Stroke; 2 Protective cases; 3 Conveying direction of longitudinal section; 4 Conveying direction of transverse section
Required accessories	Stop rail; Two throttle non-return valves M5 for air intake throttling
Recommended accessories	Damper DA 1; Depending on the installation situation, additional accessories may be required for transportation control:; M12x1 Sensor with Rated Sensing Range of S<sub>N</sub>≥ 4 mm, Cannot be Installed Flush, but Rather with 0.5 mm; Switch Bracket
Weight [kg]	0
