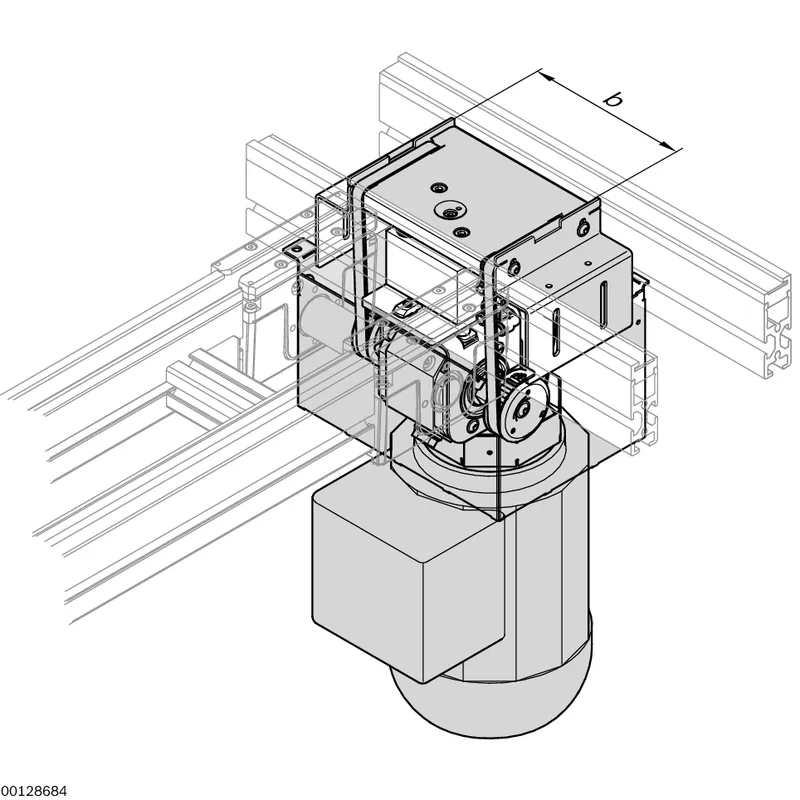

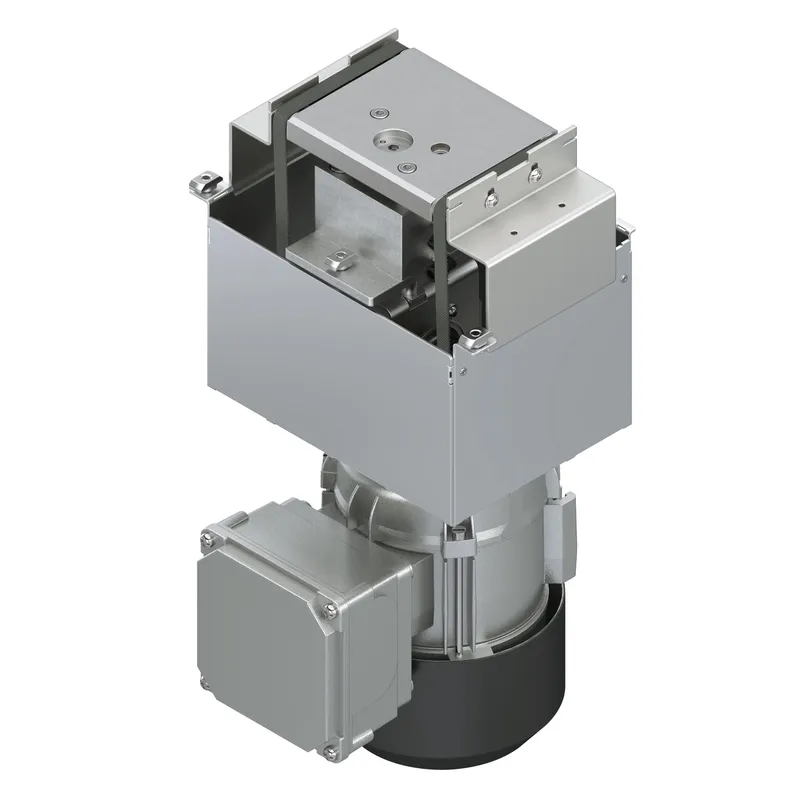

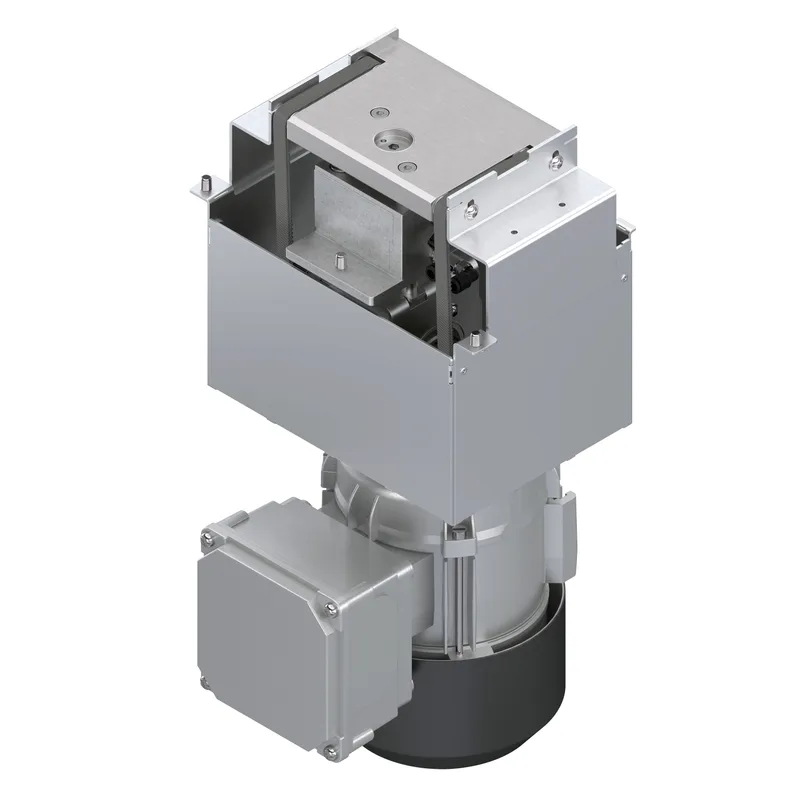

LIFT TRANSFER UNIT HQ 1/U

MPN: 3842998010
Category: Lift transverse unit TS 1

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998010?

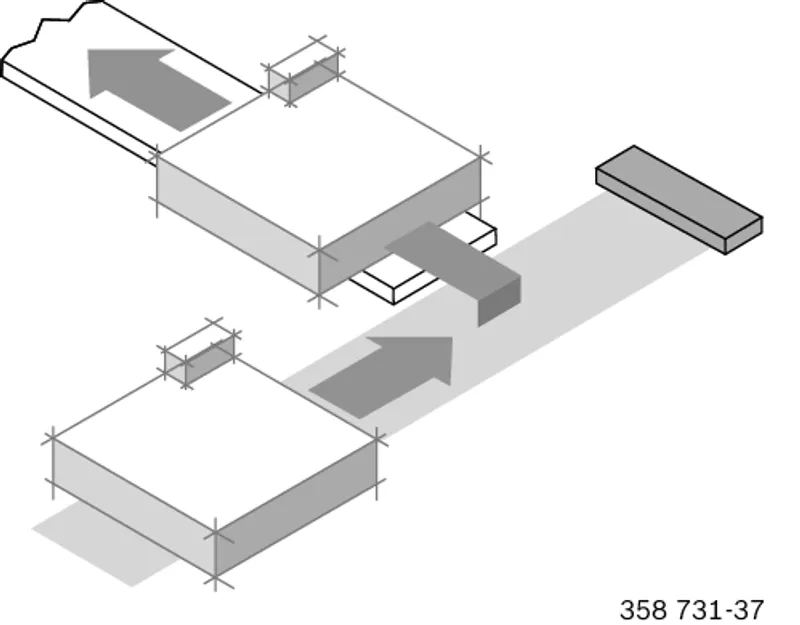

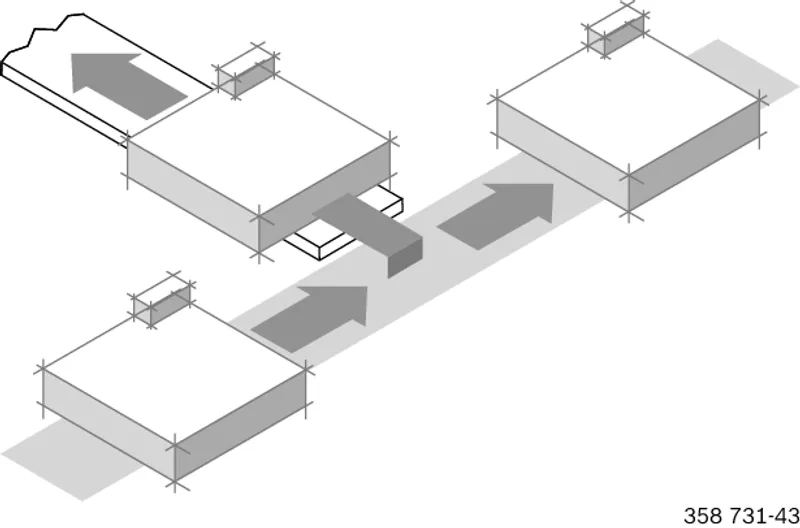

Transverse conveying of workpiece pallets when outfeeding from a longitudinal section to a transverse section or when infeeding from a transverse section to a longitudinal section. The HQ 1/U is also suitable for use in ESD applications. Reversible operation is allowed, accumulation operation is not allowed.

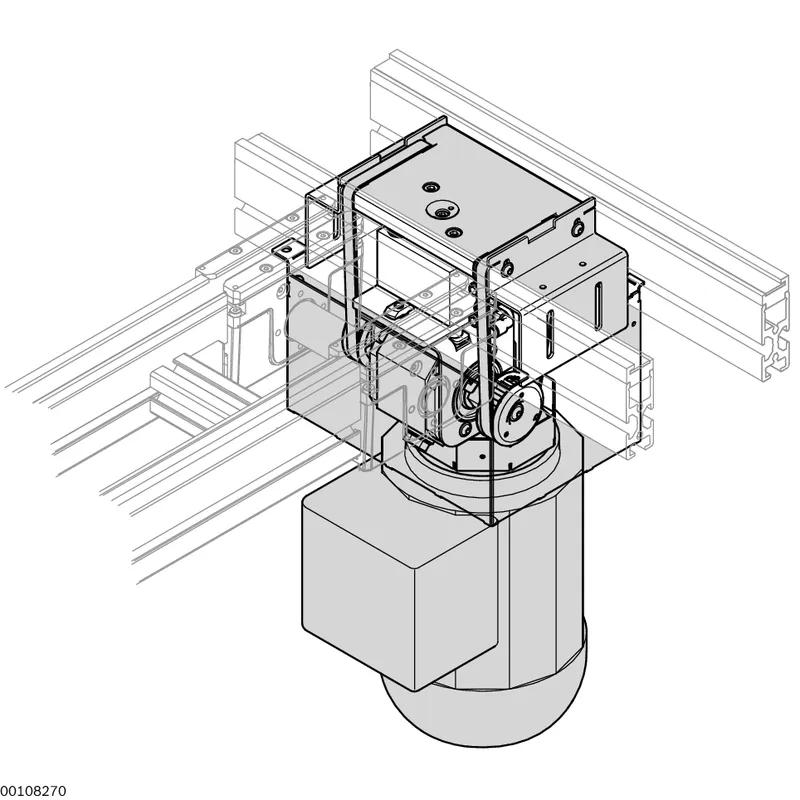

Extremely compact construction thanks to the gear motor hanging down at the bottom. Suitable for tight spaces.

Conveyor medium: Toothed belt

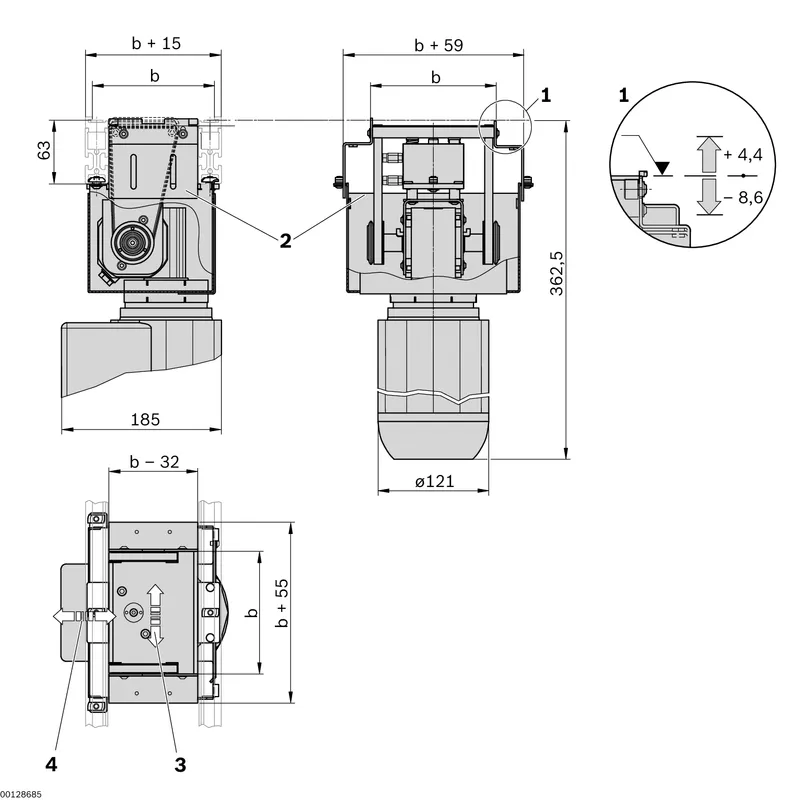

Lift cylinder – D = 25 mm

Total stroke: 13 mm

Conveyor medium: Toothed belt with mesh top, suitable for use in an EPA

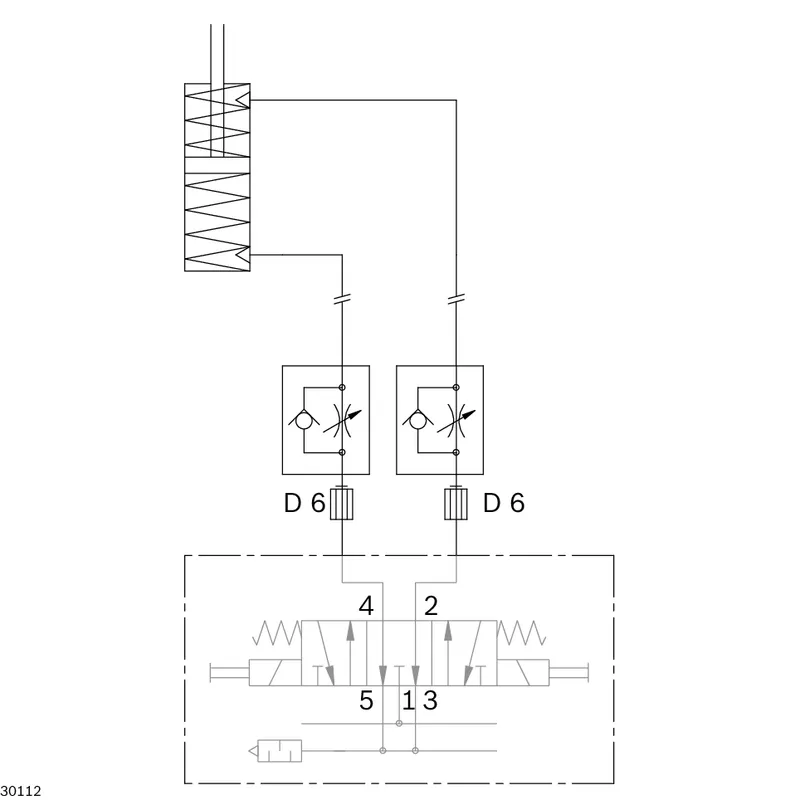

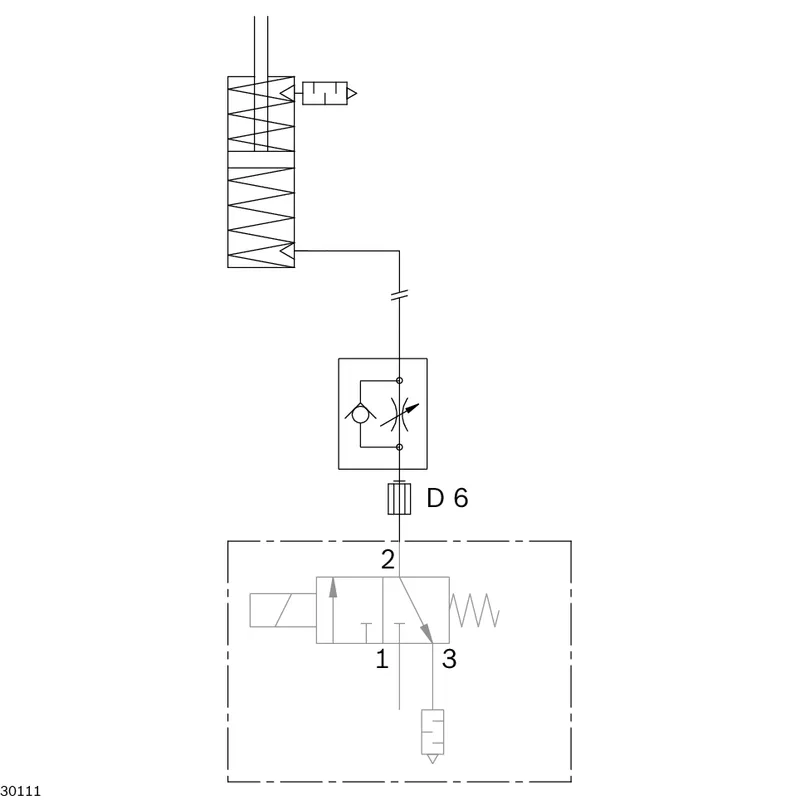

Pneumatic equipment for 2 (top, center) or 3 (top, center, bottom) lift positions

Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K)

Special models on request

Specifications

ESD	Yes
Dry room [%rF]	<1
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Scope of delivery	Fastening material for attachment to an ST 1 section; HQ 1/U lift transverse unit, completely assembled; Protective housing
Preferred values [mm]	120; 160; 80
Clean room classification	ISO class 7
Workpiece pallet total weight [mG] [kg]	3
Pneumatic straight connection [Ø] [mm]	4
Required accessories	Stop rail; Two throttle non-return valves M5 for air intake throttling
Recommended accessories	Damper DA 1; Depending on the installation situation, additional accessories may be required for transportation control:; M12x1 Sensor with Rated Sensing Range of S<sub>N</sub>≥ 4 mm, Cannot be Installed Flush, but Rather with 0.5 mm; Switch Bracket
Weight [kg]	0
