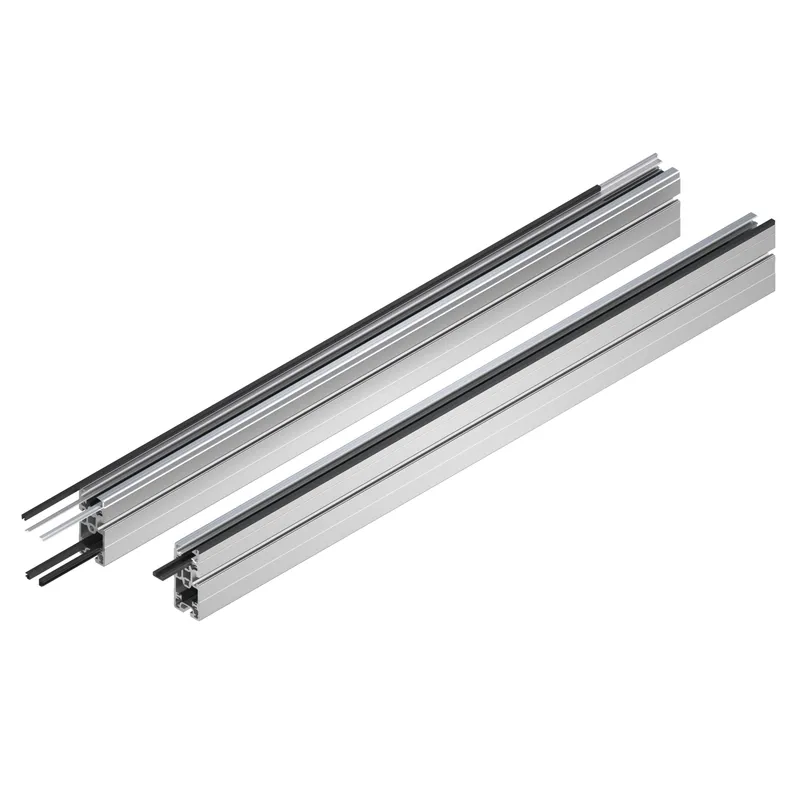

CONVEYOR SECTION ST 2/R-100
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Components of the accumulation roller chain conveyor units |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842994190 be shipped?
3842994190 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842994190 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842994190 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842994190, subject to availability and destination.

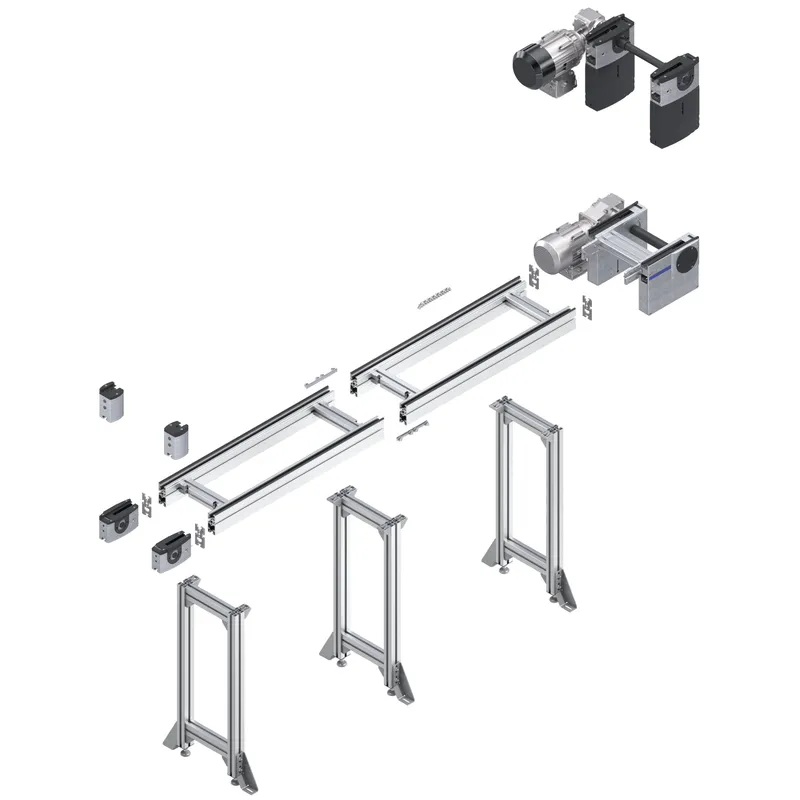

The section is used for the construction of conveyor units in conjunction with the drive modules AS 2/R-... and the return units UM 2/R-... For conveyor unit self-assembly for higher section loads For use in conjunction with drive modules AS 2/R…, return units UM 2/R-..., and glide profiles
Specifications
Specifications
| Condition on delivery | Assembled |
| Length max [l max] [mm] | 6000 |
| Length min [L min] [mm] | 60 |
| Operating temperature [T] max | + 40 °C |

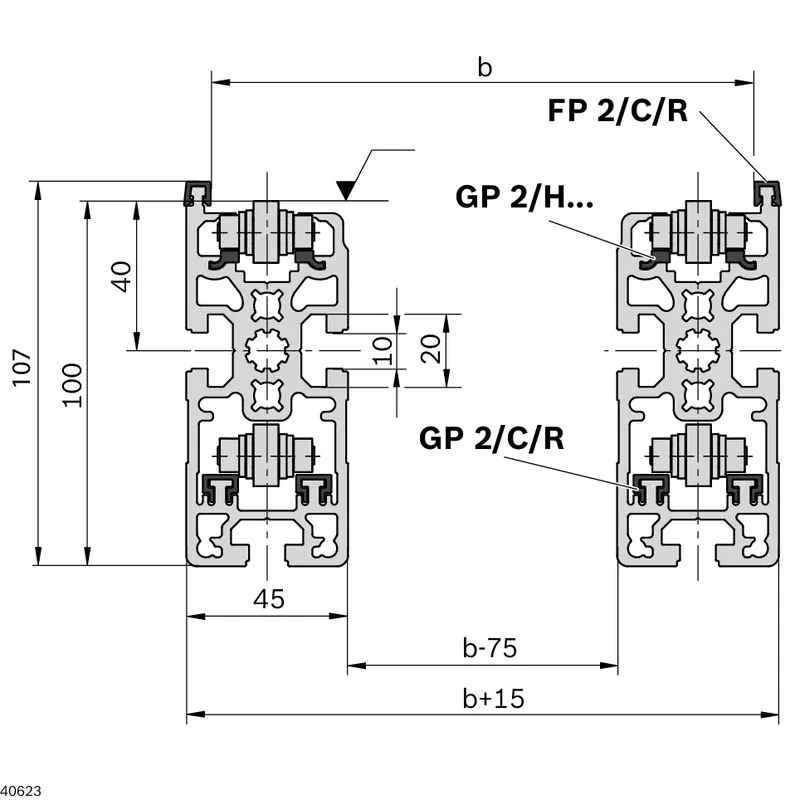

| Glide profile [GP] | 0 = Plastic (max. 1 kg/cm specific section load); 1 = steel |

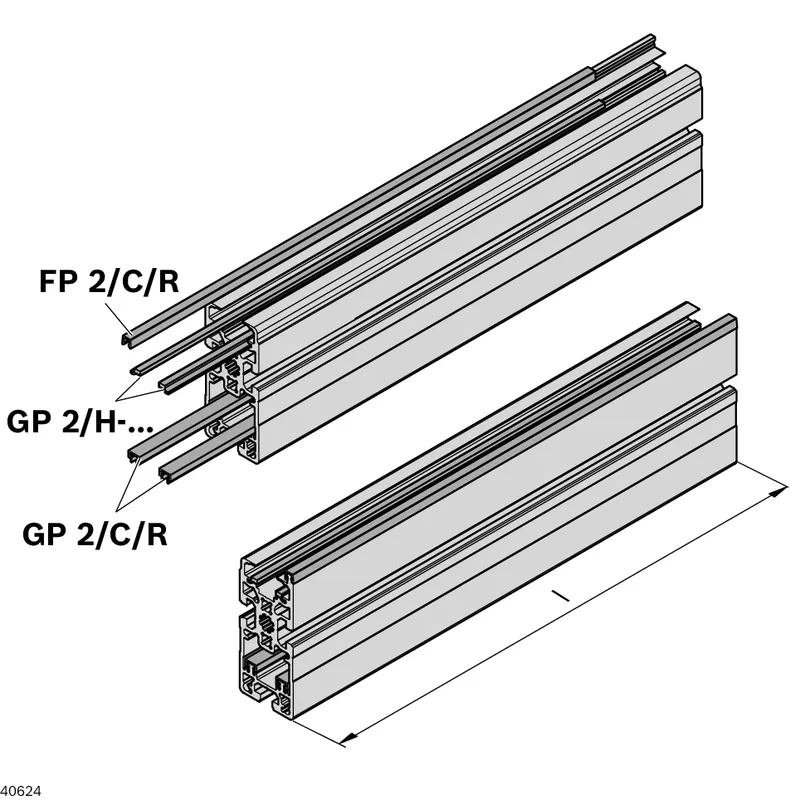

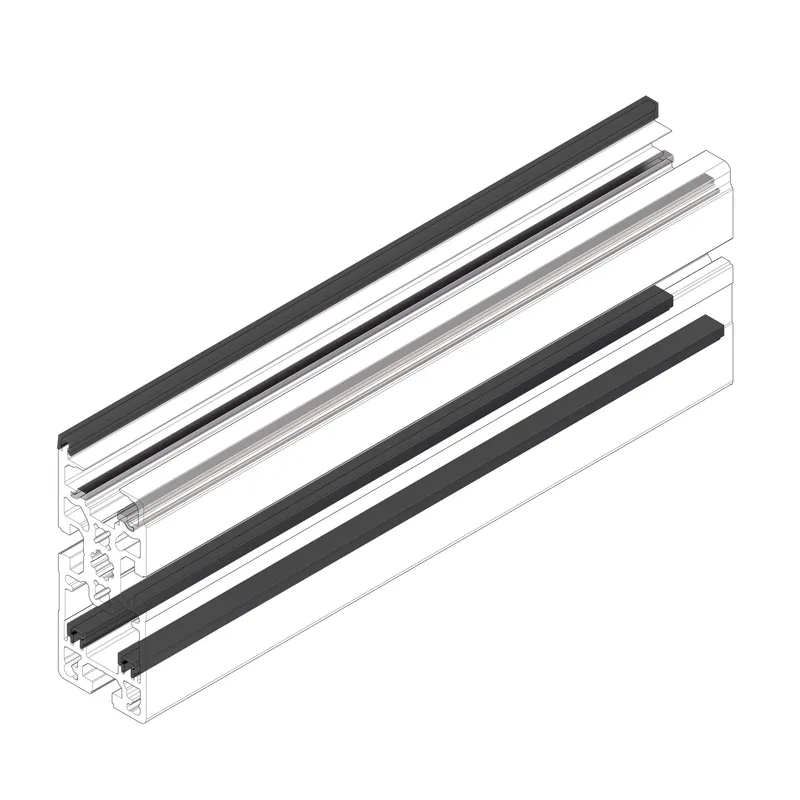

| Scope of delivery | 2x section profile SP 2/R with installed guide and glide profiles GP 2/H-KS, GP 2/H-ST, GP 2/C/R, FP 2/C/R |
| Material information | Glide profile: GP 2/C/R: PA, GP 2/H-KS: PA, GP 2/H-ST: Steel; corrosion-resistant; Guide profile: FP 2/C/R: PA; Section profile: Aluminum, natural; anodized |
| Conveyor medium | Accumulation roller chain |
| Recommended accessories | Cross connector; FP 2/U is recommended for long sections > 6 m, for operation with specific load < 2 kg/cm and for large workpiece pallets; Leg sets SZ 2/...; Profile connector |
| Weight [kg] | 0 |
