What is the Bosch Rexroth 3842994233?

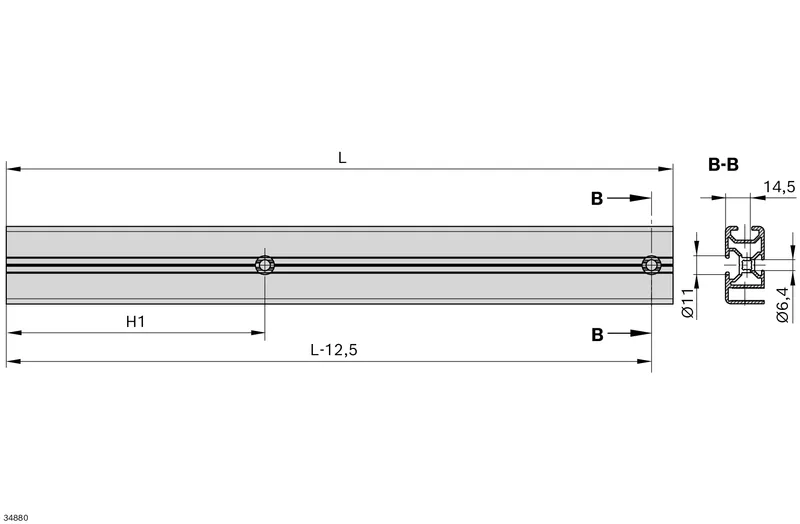

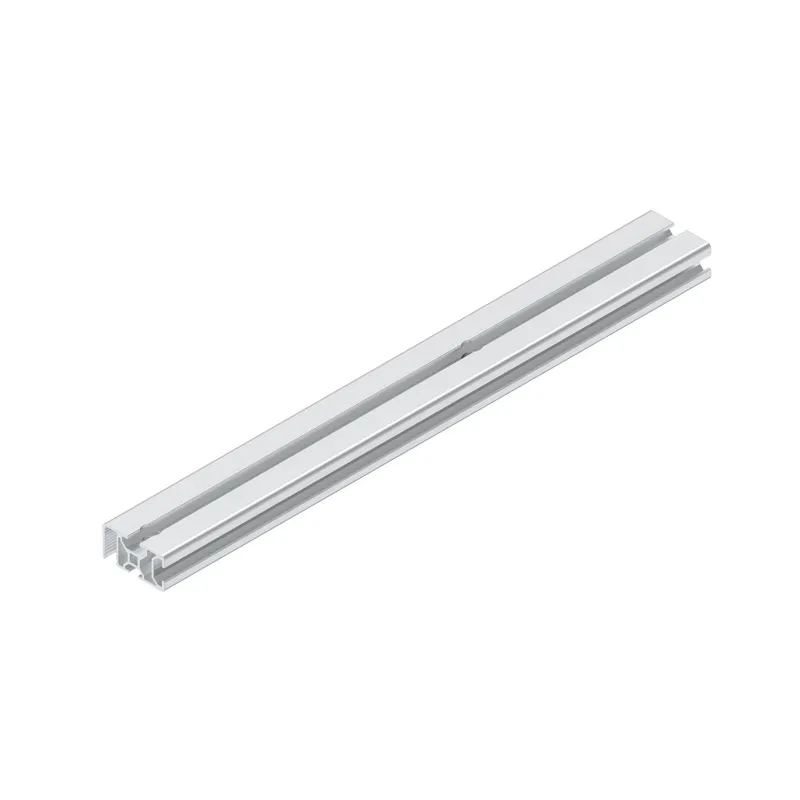

Frame profile 22.5x45 machined for direct field version left side

For the low-cost assembly of protective frame with weld grille, woven wire grille WG40 or panel elements

Fastening of spot welding and woven wire grilles: Directly in the special profile slot

Fastening of panel elements: In the special profile slot using clamping profile (accessories)

Specifications

Condition on delivery	Profile finishing
Profile slot	6; 8
Length max [L max] [mm]	6070
Length min [L min] [mm]	100
Packaging unit	1
Length-related mass [m'] [kg/m]	0.9
Area moment of inertia in x-direction [lx] [cm⁴]	1.9
Area moment of inertia in y-direction [ly] [cm⁴]	6.3
Profile surface [A] [cm²]	3.4
Moment of resistance in the x-direction [Wx] [cm³]	1.7
Moment of resistance in the y-direction [Wy] [cm³]	2.7
Material	Aluminum, anodized
Type - frame profile	22.5x45
Weight [kg]	0
