Bosch Rexroth 3842994189

CONVEYOR SECTION ST 2/C-H

MPN: 3842994189
Category: Components of the flat top chain conveyor units

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

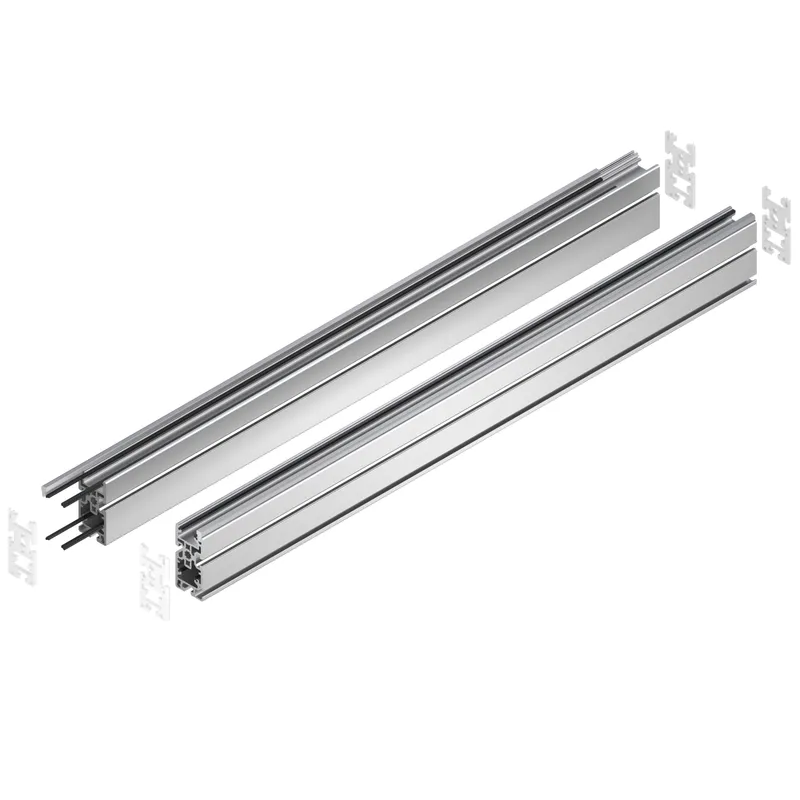

What is the Bosch Rexroth 3842994189?

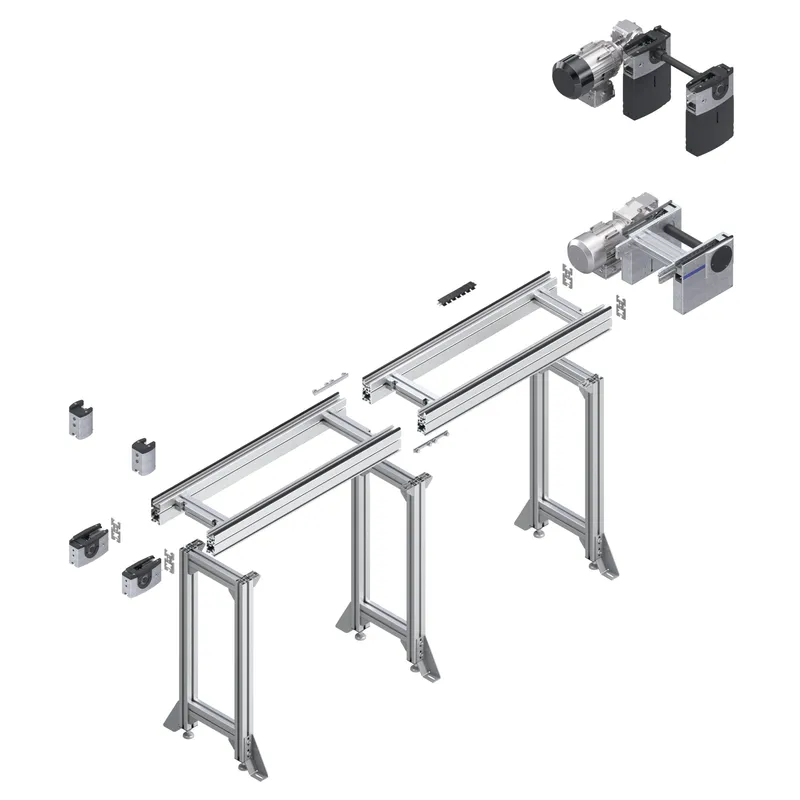

The section is used to construct heavy-duty conveyor units with plastic flat-top chains in connection with the drive modules AS 2/C-... and return units UM 2/C-...

For conveyor unit self-assembly

For use in conjunction with all drive modules AS 2/C-... and return units UM 2/C...

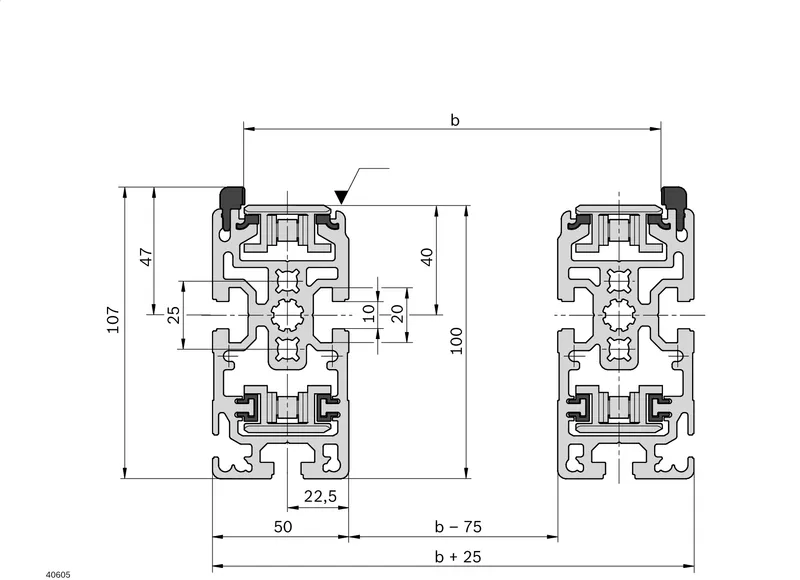

Section profile (50 mm wide) in an especially sturdy version for section loads of up to 30% higher

Conveyor medium plastic flat top chain

Optional steel or plastic GP 2 glide profiles

The WT 2/LS can be used for longitudinal conveyors with this component

It is not possible to cross over

Specifications

Length max [l max] [mm]	6000
Length min [L min] [mm]	200
Operating temperature [T] max	+40 °C

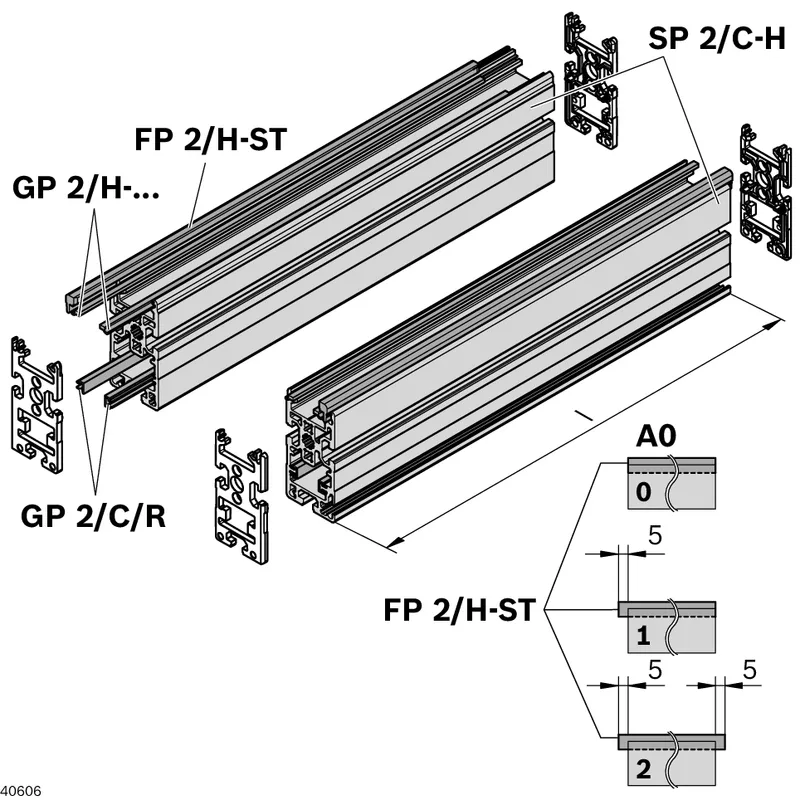

Scope of delivery	2x section profile SP 2/C-H with installed guide profiles FP 2/H-ST and glide profiles GP 2/H
Material information	Glide profile: PA/steel; corrosion-resistant; Guide profile: Steel; corrosion-resistant; Section profile: Aluminum, natural; anodized
Conveyor medium	Plastic flat-top chain
Required accessories	Adapter plate kit ST 2/C-H; If GP = 0, then adapter plates are to be fitted between each section joint
Recommended accessories	Cover rail for cable duct; Cross connector; Leg sets SZ 2/...; Profile connector
Weight [kg]	0
