Bosch Rexroth

Bosch Rexroth 3842994188

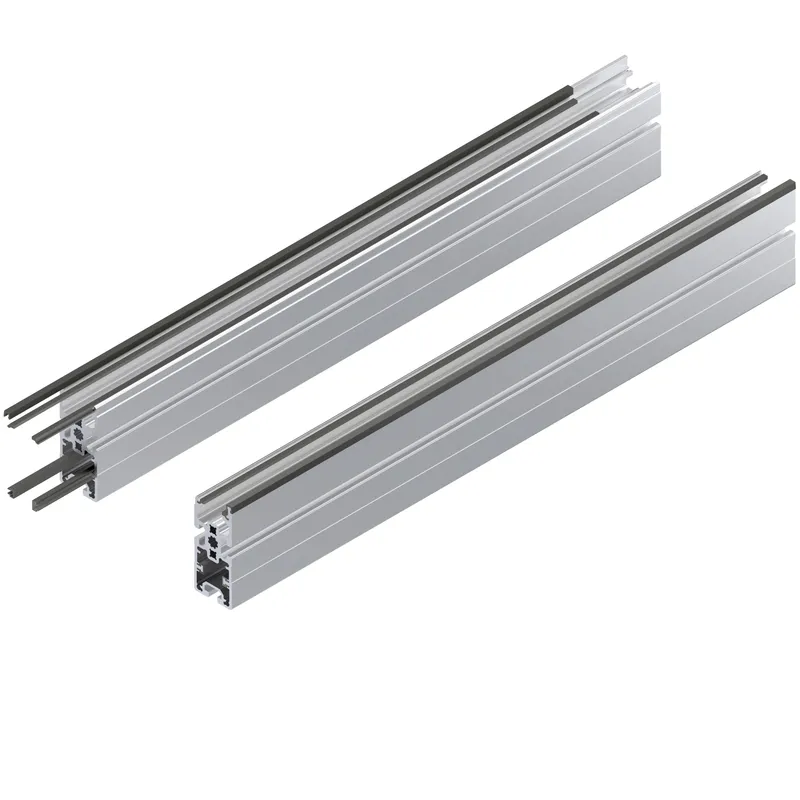

CONVEYOR SECTION ST 2/C-100

MPN: 3842994188
Category: Components of the flat top chain conveyor units

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842994188?

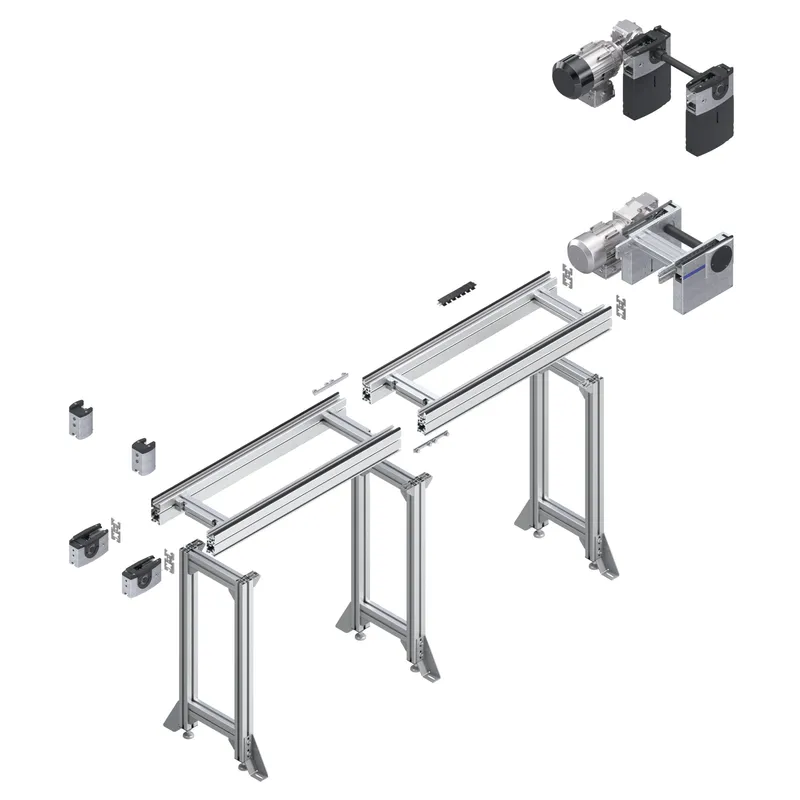

The section is used to construct conveyor units with plastic flat-top chains in connection with the drive modules AS 2/C-... and return units UM 2/C-...

For conveyor unit self-assembly

For use in conjunction with all drive modules AS 2/C-... and return units UM 2/C...

Conveyor medium plastic flat top chain

GP 2 plastic glide profiles

Pre-assembled unit for quick setup

The WT 2/LS can be used for longitudinal conveyors with this component

It is not possible to cross over

Specifications

Condition on delivery	Assembled
Length max [l max] [mm]	6000
Length min [L min] [mm]	60
Operating temperature [T] max	+40 °C

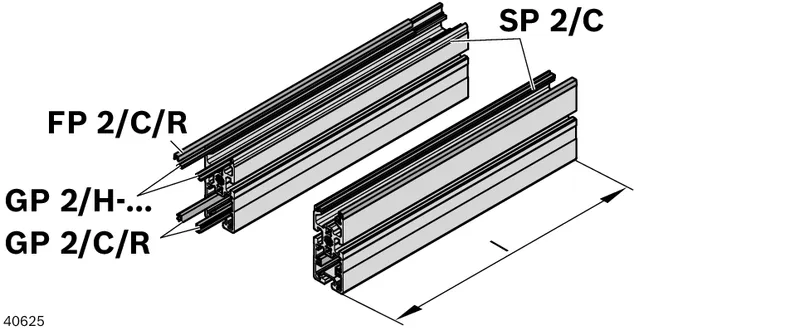

Scope of delivery	2x section profiles SP 2/C with installed guide profiles FP 2 and glide profiles GP 2
Material information	Glide profile: PA/steel; corrosion-resistant; Guide profile: PA; Section profile: Aluminum, natural; anodized
Conveyor medium	Plastic flat-top chain
Recommended accessories	Cross connector; Leg sets SZ 2/...; Profile connector
Weight [kg]	0
