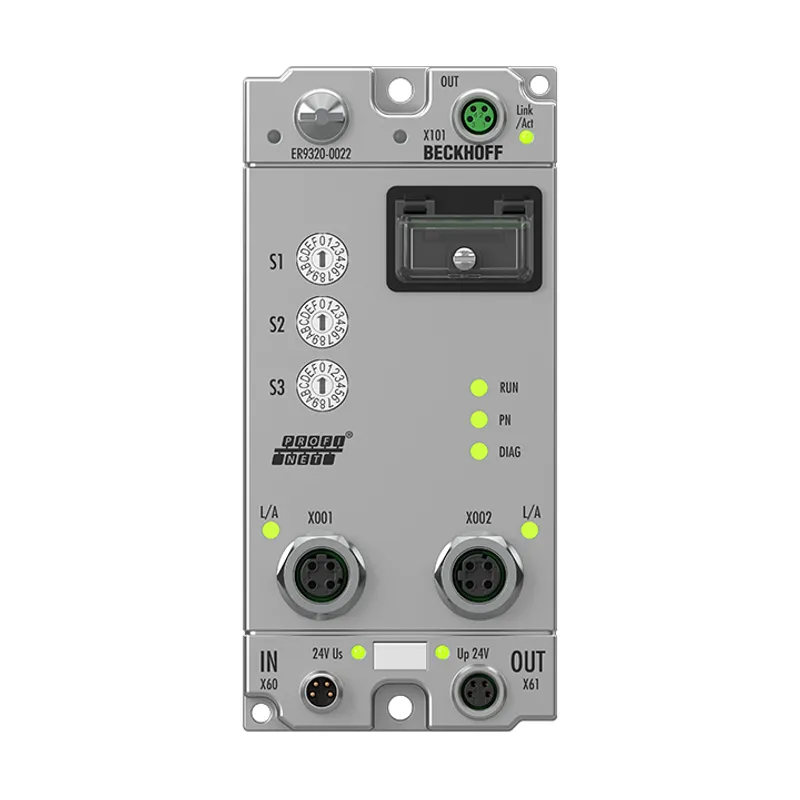

EtherCAT Box, PROFINET RT, zinc die-cast
The ER9320-0022 EtherCAT Box connects PROFINET RT networks to the EtherCAT Box modules (EPxxxx, ERxxxx and EQxxxx) and converts the telegrams from PROFINET RT to EtherCAT. One station consists of an ER9320-0022 and any number of EtherCAT Box modules. The
| Protocol | PROFINET RT |
| Bus interface | 2 x M12 socket, D-coded (switched) |
| Task within EtherCAT system | coupling of standard digital and analog EtherCAT Box modules to PROFINET RT networks |
| Number of EtherCAT Box modules | depending on the process data size |
| Type/number of peripheral signals | depending on the process data size |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Current consumption from US | 200 mA |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Data transfer rates | 100 Mbit/s |
| Configuration | automatic |
| Electrical isolation | 500 V |
| Power supply | 24 V DC (-15%/+20%) |
| Weight | approx. 450 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Dimensions (W x H x D) | 60 mm x 126 mm x 26.5 mm |
| Material | zinc die-cast |
| Installation | 2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4 |
