Beckhoff ER8309-1022

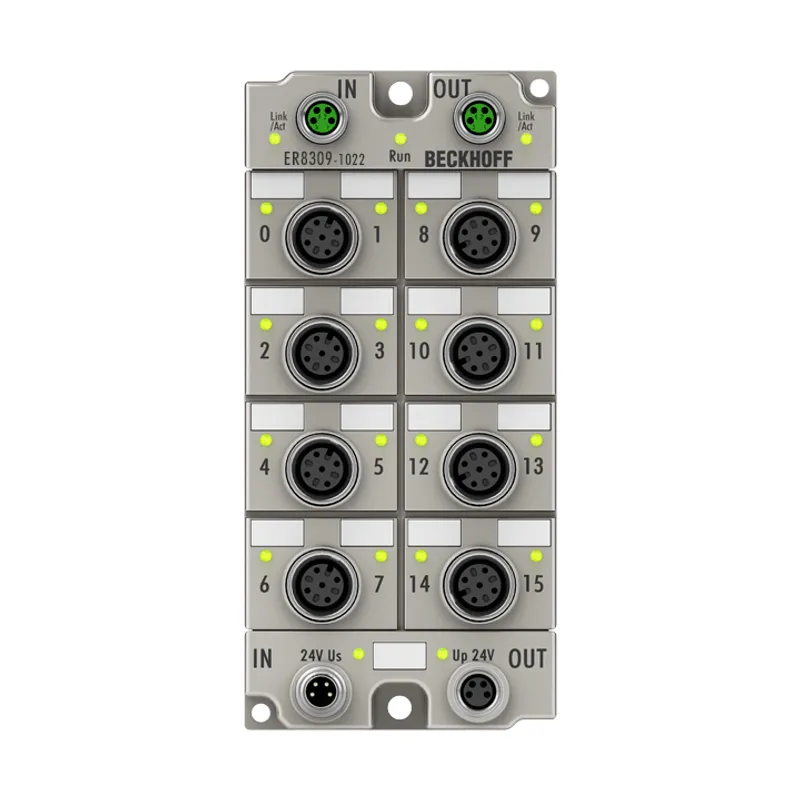

EtherCAT Box, multi-functional box, digital, analog, PWM, current-controlled, M12, zinc die-cast

MPN
ER8309-1022
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff ER8309-1022?

The ER8309-1022 EtherCAT Box has various digital and analog inputs and outputs: eight digital inputs/outputs, two digital tacho inputs, two analog inputs, one analog output and a 1.2 A PWMi output. The current signals have 12-bit resolution. The tacho

Specifications

Specifications

ProtocolEtherCAT
Bus interface2 x M8 socket, 4-pin, a-coded, shielded
Number of channels8 digital inputs or outputs (6…13)
Input filter3 ms
Limit frequency2.5 kHz
Connection methodM12, screw type
Number of analog inputs2, single-ended, 12 bit, 0/4…20 mA (0/2)
Number of analog outputs1, single-ended, 12 bit, 0/4…20 mA (15)
Number of PWMi outputs1 x 1.2 A, max. 30 kHz (14)
Nominal voltage24 V DC (-15%/+20%)
Measurement error/uncertaintyinput: 0.3%, output: 0.1% (each relative to full scale value)
Sensor supplyfrom control voltage US
Actuator supplyfrom the auxiliary voltage UP
Electrical isolation500 V
Special featuresmulti-functional I/O box for universal use
Weightapprox. 450 g
Operating temperature-25…+60°C
Storage temperature-40…+85°C
Vibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.IP65/66/67 (conforms to EN 60529)/variable
Approvals/markingsCE, UL
Dimensions (W x H x D)60 mm x 126 mm x 26.5 mm
Materialzinc die-cast
Installation2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4

ER8309-1022: frequently asked questions

When can ER8309-1022 be shipped?

ER8309-1022 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ER8309-1022 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ER8309-1022 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ER8309-1022, subject to availability and destination.
