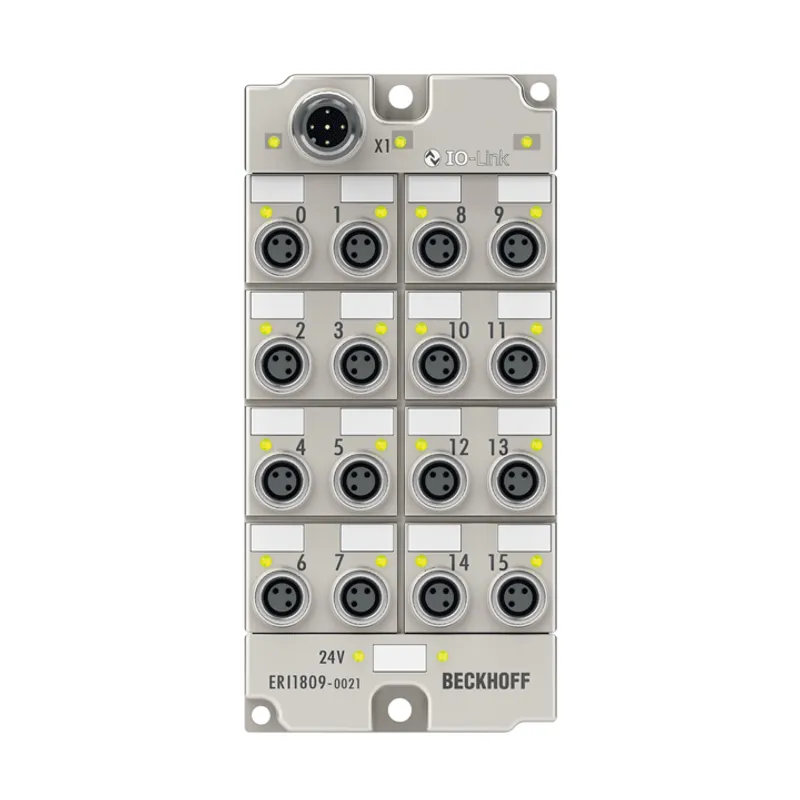

IO-Link box, 16-channel digital input, 24 V DC, adjustable, M8, zinc die-cast
The ERI1809-0021 IO-Link box with digital inputs acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The state of the signals is indicated by light emitting diodes. The
| Communication | IO-Link |
| Interfaces | 1 x M12 plug, A-coded |
| Data transfer rates | 230.4 kbaud (COM 3) |
| Specification version | IO-Link V1.1, Class A |
| Number of inputs | 16 |
| Input connections | M8, screw type |
| Nominal input voltage | 24 V DC (-15%/+20%) |
| Input filter | 3.0 ms (default), adjustable 0…20 ms |
| “0” signal voltage | -3…+5 V (EN 61131-2, type 3) |
| “1” signal voltage | 11…30 V (EN 61131-2, type 3) |
| Input current | typ. 3 mA (EN 61131-2, type 3) |
| Sensor supply | max. 0.5 A, from L+, short-circuit proof in total |
| Current consumption | typ. 100 mA from L+ |
| Weight | approx. 450 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Dimensions (W x H x D) | 60 mm x 126 mm x 26.5 mm |
| Material | zinc die-cast |
| Installation | 2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4 |
No matching specifications
ERI1809-0021 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Yes — mention it when you request a quote for ERI1809-0021 and we'll include express shipping options in our reply.
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ERI1809-0021, subject to availability and destination.
