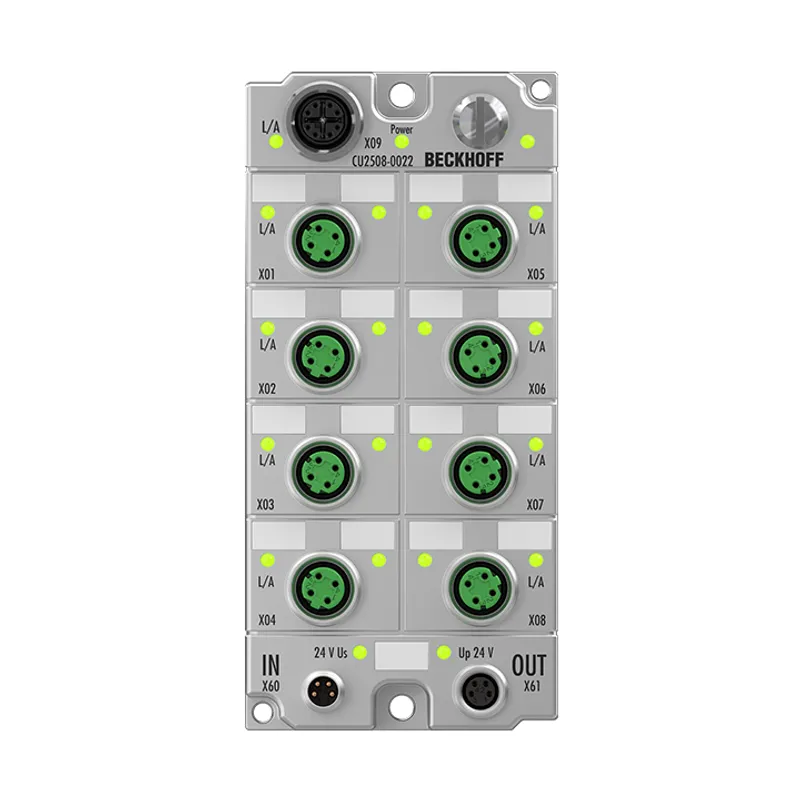

Beckhoff CU2508-0022

Infrastructure, 8-port port multiplier, Ethernet, 24 V DC, M12, zinc die-cast

MPN: CU2508-0022
Category: Ethernet-Port-Multiplier

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff CU2508-0022?

The CU2508-0022 real-time Ethernet port multiplier allows connection of up to eight Ethernet networks. The CU2508-0022 is connected to the control industrial PC via a gigabit uplink. The PC offers high-performance data transfer to the multiplier, which

Specifications

Protocol	Ethernet TCP/IP; real-time protocols: EtherCAT, PROFINET and others (depending on driver)
Bus interface	1 x M12, 8-pin (X-coded), shielded, screw type, 8 x M12, 4-pin (D-coded), shielded, screw type
Ethernet interface	10BASE-T/100BASE-TX Ethernet, M12, D-coded, 4-pin
Cable length	up to 100 m twisted pair
Data transfer rates	100BASE-TX and 1 Gbit/s
Hardware diagnostics	LEDs
Distributed clocks	yes
Nominal voltage	24 V DC (-15%/+20%)
Current consumption from US	120 mA
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Weight	approx. 450 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	60 mm x 126 mm x 26.5 mm
Material	zinc die-cast
Installation	2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4
