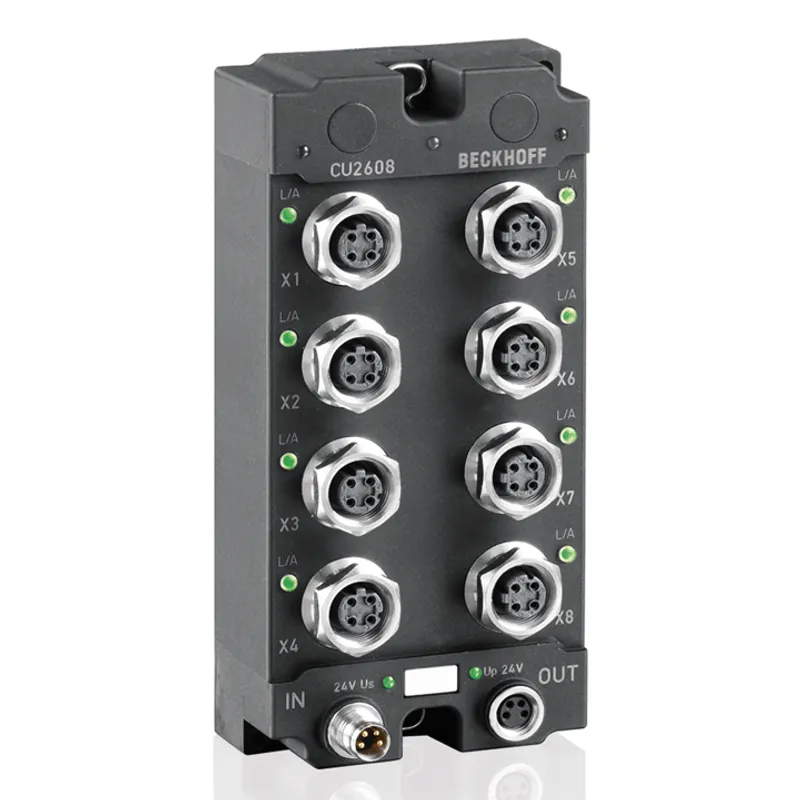

Beckhoff CU2608

Infrastructure, 8-port switch, Ethernet, 100 Mbit/s, 24 V DC, M12

MPN: CU2608
Category: CUxxxx, EPxxxx | Ethernet Switches and components

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff CU2608?

The Beckhoff Ethernet switch CU2608 offers eight D-coded M12 Ethernet ports for connecting Ethernet devices in a network. With a transmission speed of 10/100 MBit/s and its industrial design, it can be used universally in automation and office networks

Specifications

Bus system	all Ethernet (IEEE 802.3)-based protocols, store and forward switching mode, unmanaged
Ethernet interface	10BASE-T/100BASE-TX Ethernet, M12, D-coded, 4-pin
Cable length	up to 100 m twisted pair
Data transfer rates	10/100 MBit/s, IEEE 802.3u auto-negotiation, half or full duplex, automatic settings
Hardware diagnostics	1 LED per channel, activity, link
Power supply	24 V DC (-15%/+20%), feed/downstream connection: M8, 4-pin
Current consumption	typ. 120 mA
Weight	approx. 300 g
Operating temperature	-30…+70°C
Storage temperature	-40…+85°C
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	60 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4

CU2608: frequently asked questions

When can CU2608 be shipped?

CU2608 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CU2608 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CU2608 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CU2608, subject to availability and destination.
