Beckhoff CU8110-0120

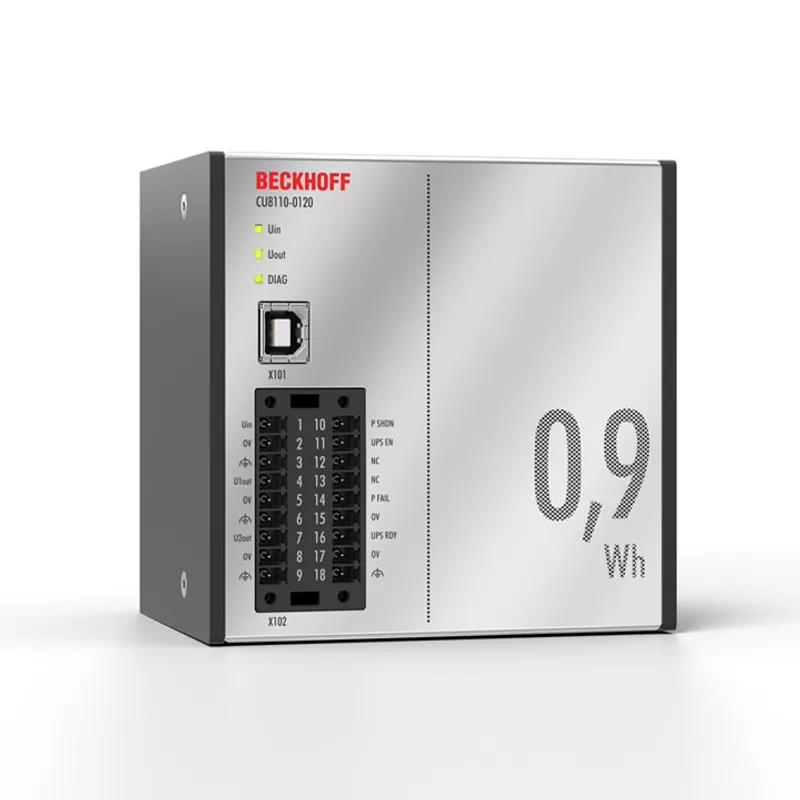

UPS module, capacitive

MPN: CU8110-0120
Category: Accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff CU8110-0120?

CU8110-0120 is a capacitive, uninterruptible power supply (UPS) providing up to 0.9 Wh with a maximum output power of 110 W. If the external 24 V DC input voltage is lost, the UPS takes over the supply of the devices connected to it thanks to its

Specifications

Type	capacitive uninterruptible power supply (UPS), 110 W
Housing	metal housing for mounting on norm rail TS35x15 2.3
Storage technology	EDLC (capacitive)
Capacity	0.9 Wh
Interfaces	USB or UPS OCT via 24 V DC power supply, USB cable not included in the scope of supply
Diagnostics LED	1 x UIN, 1 x UOUT, 1 x DIAG
Connection	2 x 9-pin plug, push-in
Power supply	24 V DC (-15%/+20%)
Output voltage	min. 24 V DC
Power consumption	max. 120 W
Power output	max. 110 W
Power consumption during charging (without load)	max. 3.2 A
Output current	max. 4.5 A
Fuse (internal, input)	electronic, 10 A
Fuse (internal, output)	electronic, 5 A
Power loss during charging	max. 6.15 W
Power loss mains operation, UPS charged	max. 4.4 W
Power loss UPS operation, UPS discharges	max. 12 W
Dimensions (W x H x D)	100 mm x 100 mm x 90 mm
Weight	approx. 780 g
Operating temperature	-25…+50°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protection rating	IP20
Approvals/markings	CE, UL
