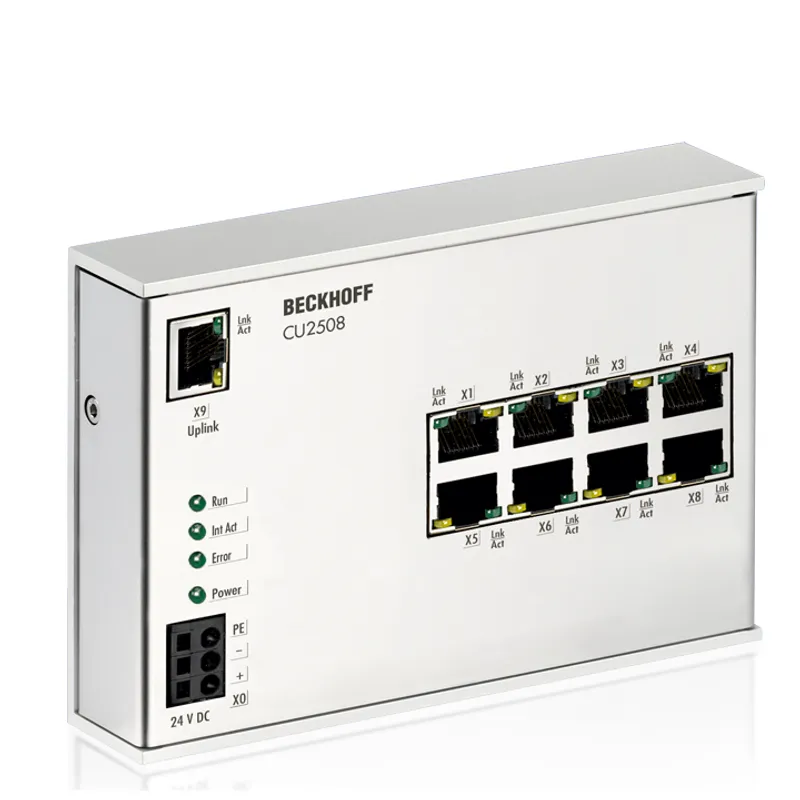

Beckhoff CU2508

Infrastructure, 8-port port multiplier, Ethernet, 24 V DC, RJ45

MPN: CU2508
Category: Ethernet-Port-Multiplier

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff CU2508?

The CU2508 real-time Ethernet port multiplier allows the connection of up to eight Ethernet networks. The CU2508 is connected to the control IPC via a Gigabit uplink. The PC offers high-performance data transfer to the multiplier, which allocates the

Specifications

Protocol	Ethernet TCP/IP; real-time protocols: EtherCAT, PROFINET and others (depending on driver)
Ethernet interface	RJ45
Cable length	up to 100 m twisted pair
Data transfer rates	100BASE-TX and 1 Gbit/s
Hardware diagnostics	LEDs
Power supply	24 (18…30) V DC, 250 mA, 3-pin connection (+, -, PE)
Dimensions (W x H x D)	approx. 146 mm x 100 mm x 30 mm
Operating temperature	-25…+55°C
Storage temperature	-40…+85°C
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, UL

CU2508: frequently asked questions

When can CU2508 be shipped?

CU2508 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CU2508 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CU2508 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CU2508, subject to availability and destination.
