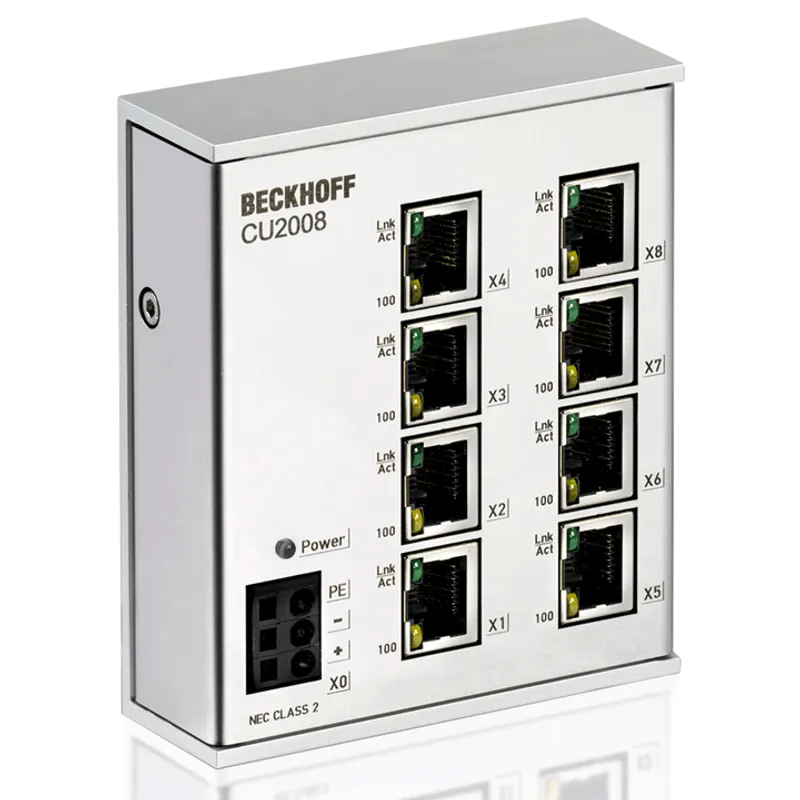

Beckhoff CU2008

Infrastructure, 8-port switch, Ethernet, 100 Mbit/s, 24 V DC, RJ45

MPN: CU2008
Category: CUxxxx, EPxxxx | Ethernet Switches and components

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff CU2008?

The Beckhoff Ethernet switch CU2008 offers eight RJ45 Ethernet ports for connecting Ethernet devices in a network. Switches relay incoming Ethernet frames to the destination ports. With a transmission speed of 10/100 MBit/s and its industrial design, it

Specifications

Bus system	all Ethernet (IEEE 802.3)-based protocols, store and forward switching mode, unmanaged
Ethernet interface	10BASE-T/100BASE-TX Ethernet, RJ45
Cable length	up to 100 m twisted pair
Data transfer rates	10/100 MBit/s, IEEE 802.3u auto-negotiation, half or full duplex, automatic settings
Hardware diagnostics	2 LEDs per channel, activity, link, 10/100 Mbit
Power supply	24 (18…30) V DC, 3-pin connection (+, -, PE)
Current consumption	typ. 100 mA
Weight	320 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	85 mm x 100 mm x 30 mm
Material	V2a stainless steel/aluminum
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock

CU2008: frequently asked questions

When can CU2008 be shipped?

CU2008 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CU2008 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CU2008 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CU2008, subject to availability and destination.
