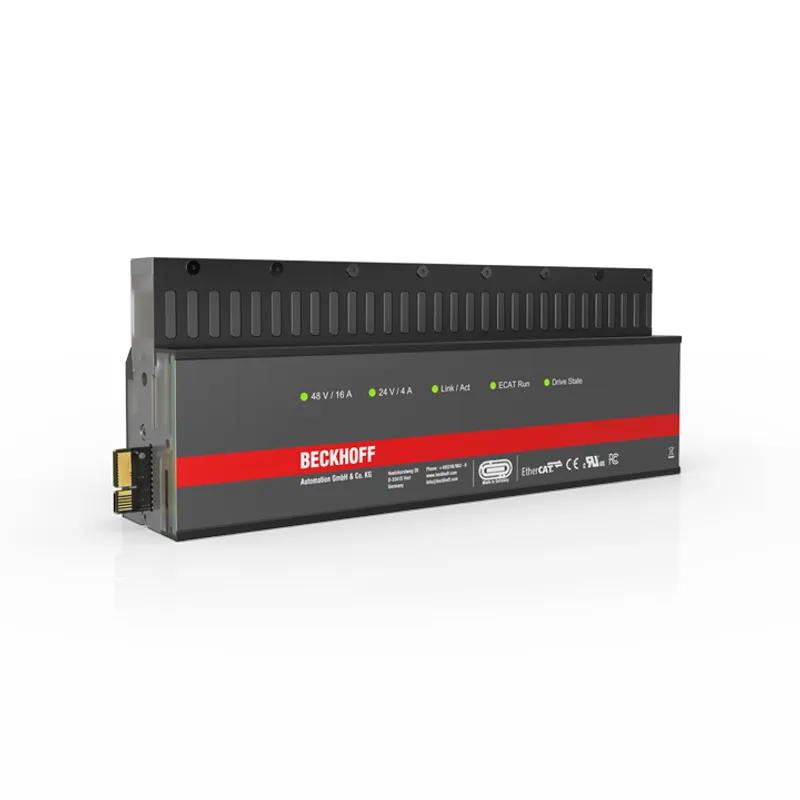

Beckhoff AT2100

Motor module with integrated NCT functionality, straight, without infeed

MPN: AT2100
Category: AT2xxx, ATH2xxx | XTS motor modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff AT2100?

The AT2100 motor modules are elements for building straight XTS line sections with integrated NCT functionality. In combination with electronics mounted on the mover, a power supply and synchronous real-time data communication are available on the mover.

Specifications

Magnet pitch	≥ 63 mm
Geometries	any (e. g. rectangle, square, circle, straight, L-, U-, O-, Z- or T-shapes)
Diameter	180° curved segment: 267 mm (clothoid), 45° curved segment: 637 mm, 22.5° curved segment: 1273 mm, -22.5° curved segment: 1273 mm (1)
Alignment	horizontally, vertically or at any angle from 1…179°
Peak force	AT9001-x550 (5-pin): 100 N, AT9001-x775 (7-pin): 130 N, AT9001-xAA0 (10-pin): 210 N (specification refer to straight sections)
Continuous force	AT9001-x550 (5-pin): 30 N, AT9001-x775 (7-pin): 45 N, AT9001-xAA0 (10-pin): 75 N (specification refers to straight sections)
Max. speed	4 m/s
Max. acceleration	10 g
Payload	up to 40 kg, higher loads with reduced dynamics
Absolute accuracy	±0.25 mm within a straight module
Repeatability	±0.01 mm (standstill unidirectional)
Positioning accuracy	±0.15 mm @ 1.5 m/s within a straight module
System size	> 100 m, > 200 movers, larger system limits possible with restrictions
Protection rating	IP65 (in assembled condition for a closed system, only waterproof for a short time, not corrosion resistant)
Approvals/markings	CE, UL
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
ETSI EMC standard	conforms to EN 301489-1
Motor type	long stator linear motor segment
Design form	straight
Motor length	250 mm
Connection method	connectors between the motor modules (daisy chaining)
Length per feed	max. 2 m (voltage supply, EtherCAT)
Cooling	convection
Ambient temperature (operation)	0…40°C
Rated power	768 W
Operating voltage	48 V DC
Rated current	16 A
Peak current	48 A
Control voltage	24 V DC -15/+20%
Power consumption control voltage	35 W per meter travel distance
Length	250 mm
Width	51.7 mm
Height	96 mm
Weight	2.38 kg
NCT rated output	up to 35 W (depending on the mover position)
NCT peak performance	up to 75 W (depending on the mover position)
Output voltage	24 V DC (regulated)
Power transmission	continuously (also across module limits)
Communication cycle	250 µs
Communication direction	bidirectional
Time response	µs-precise DC synchronization
Communication participants	no system limits (individual address assignment of the movers possible)
Communication types	cyclic and acyclic
Data transfer	continuously (also across module limits)
