Beckhoff AT2050

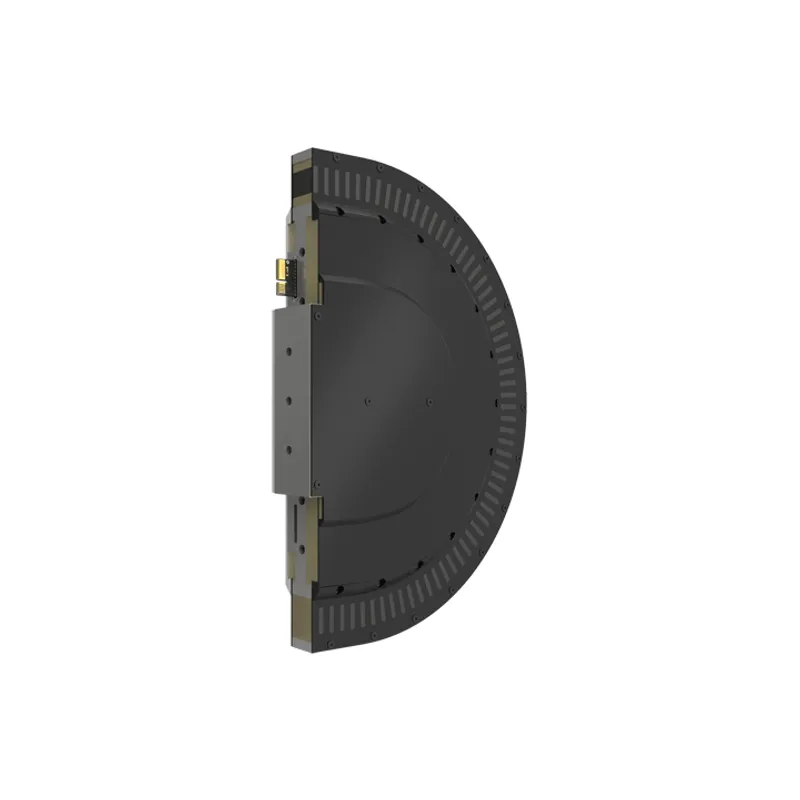

Motor module, 180° curved segment, without infeed

MPN: AT2050
Category: AT2xxx, ATH2xxx | XTS motor modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff AT2050?

The motor modules with the product designation AT2050 are elements for the construction of curved XTS track sections. They represent a 180° curve segment (outside curve) with a clothoid-shaped geometry. Simply plugging them together is sufficient to

Specifications

Magnet pitch	≥ 50 mm
Geometries	any (e. g. rectangle, square, circle, straight, L-, U-, O-, Z- or T-shapes)
Diameter	180° curved segment: 267 mm (clothoid), 45° curved segment: 637 mm, 22.5° curved segment: 1273 mm, -22.5° curved segment: 1273 mm (1)
Alignment	horizontally, vertically or at any angle from 1…179°
Peak force	AT9001-x550 (5-pin): 100 N, AT9001-x775 (7-pin): 130 N, AT9001-xAA0 (10-pin): 210 N (specification refer to straight sections)
Continuous force	AT9001-x550 (5-pin): 30 N, AT9001-x775 (7-pin): 45 N, AT9001-xAA0 (10-pin): 75 N (specification refers to straight sections)
Max. speed	4 m/s
Max. acceleration	10 g
Payload	up to 40 kg, higher loads with reduced dynamics
Cycle time	250 µs
Absolute accuracy	±0.25 mm within a straight module
Repeatability	±0.01 mm (standstill unidirectional)
Positioning accuracy	±0.15 mm @ 1.5 m/s within a straight module
System size	> 100 m, > 200 movers
Protection rating	IP65 (in assembled condition for a closed system, only waterproof for a short time, not corrosion resistant)
Approvals/markings	CE, UL
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Motor type	long stator linear motor segment
Design form	curved segment, 180° (positive curve, clothoid)
Motor length	500 mm
Connection method	connectors between the motor modules (daisy chaining)
Length per feed	max. 3 m (voltage supply, EtherCAT)
Cooling	convection
Ambient temperature (operation)	0…40°C
Rated power	768 W
Operating voltage	48 V DC
Rated current	16 A
Peak current	48 A
Control voltage	24 V DC -15/+20%
Power consumption control voltage	30 W per meter travel distance
Length	306.7 mm
Width	39.1 mm
Height	194.5 mm
Weight	4.1 kg
