Beckhoff AT2026

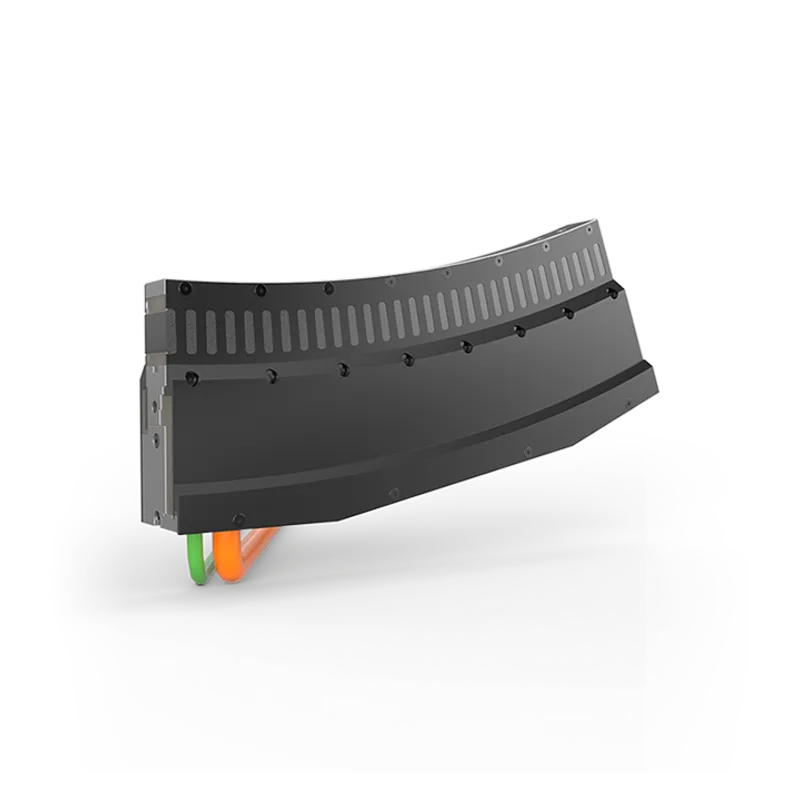

Motor module, -22.5° curved segment, with connection cables for infeed
- MPN
- AT2026
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff AT2026?
The motor modules with the product designation AT2026 largely correspond to the motor modules with the product designation AT2025. In addition, they each have a fixed connection cable for the supply of power and communication. These 5 m-long connection
Specifications
Specifications
| Magnet pitch | ≥ 50 mm |
| Geometries | any (e. g. rectangle, square, circle, straight, L-, U-, O-, Z- or T-shapes) |
| Diameter | 180° curved segment: 267 mm (clothoid), 45° curved segment: 637 mm, 22.5° curved segment: 1273 mm, -22.5° curved segment: 1273 mm (1) |
| Alignment | horizontally, vertically or at any angle from 1…179° |
| Peak force | AT9001-x550 (5-pin): 100 N, AT9001-x775 (7-pin): 130 N, AT9001-xAA0 (10-pin): 210 N (specification refer to straight sections) |
| Continuous force | AT9001-x550 (5-pin): 30 N, AT9001-x775 (7-pin): 45 N, AT9001-xAA0 (10-pin): 75 N (specification refers to straight sections) |
| Max. speed | 4 m/s |
| Max. acceleration | 10 g |
| Payload | up to 40 kg, higher loads with reduced dynamics |
| Cycle time | 250 µs |
| Absolute accuracy | ±0.25 mm within a straight module |
| Repeatability | ±0.01 mm (standstill unidirectional) |
| Positioning accuracy | ±0.15 mm @ 1.5 m/s within a straight module |
| System size | > 100 m, > 200 movers |
| Protection rating | IP65 (in assembled condition for a closed system, only waterproof for a short time, not corrosion resistant) |
| Approvals/markings | CE, UL |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Motor type | long stator linear motor segment |
| Design form | curved segment, -22.5° (negative curve, Ø 1273 mm) |
| Motor length | 250 mm |
| Connection method | fixed connection cables (5 m) |
| Length per feed | max. 3 m (voltage supply, EtherCAT) |
| Cooling | convection |
| Ambient temperature (operation) | 0…40°C |
| Rated power | 768 W |
| Operating voltage | 48 V DC |
| Rated current | 16 A |
| Peak current | 48 A |
| Control voltage | 24 V DC -15/+20% |
| Power consumption control voltage | 30 W per meter travel distance |
| Length | 278.1 mm |
| Width | 39.1 mm |
| Height | 107.8 mm |
| Weight | 3.3 kg |
