ABB 1SBN110120W1000 – BB4 Fixing Clip
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.002 kg |
| UPC / EAN | 3471523130722 |
Shipping & availability
When can 1SBN110120W1000 be shipped?
1SBN110120W1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBN110120W1000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBN110120W1000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN110120W1000, subject to availability and destination.

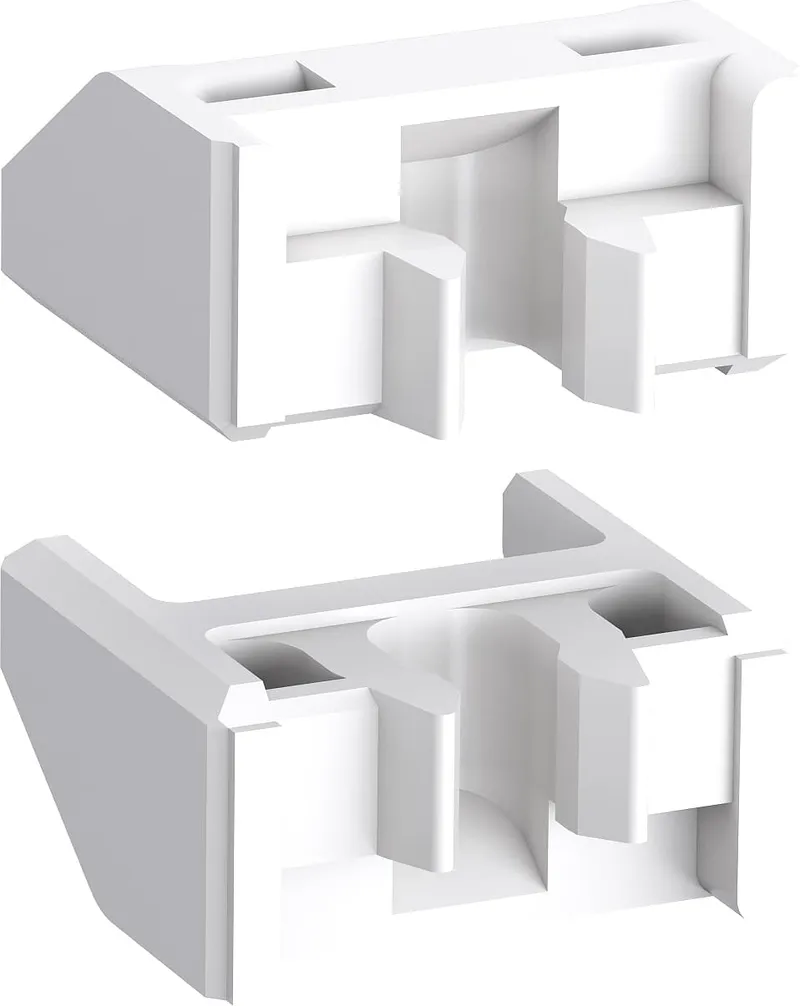

BB4 is a fixing clip used to assemble 2 AF contactors side by side. Suitable for AF(C)(S)09(Z)(B)...96.
Specifications
General
| Order code (ABB product ID) | 1SBN110120W1000 |
| Type | BB4 |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 50 piece |
| Customs Tariff Number | 39269097 |
Dimensions
| Product Net Width | 20 mm |
| Product Net Depth / Length | 20 mm |
| Product Net Height | 20 mm |
| Product Net Weight | 0.002 kg |
Technical
| Standards | IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-4-1 |
| Suitable For | AF09, AF09Z, AF12, AF12Z, AF16, AF16Z, AF26, AF26Z, AF30, AF30Z, AF38, AF38Z, AF40, AF52, AF65, AF80, AF96, AFC09, AFC12, AFC16, AFC26, AFC30, AFC38, AFC40, AFC52, AFC65, AFC80, AFC96, AFS09, AFS09Z, AFS12, AFS12Z, AFS16, AFS16Z, AFS26, AFS26Z, AFS30, AFS30Z, AFS38, AFS38Z, AFS40, AFS52, AFS65, AFS80, AFS96, AF09B, AF09ZB, AF12B, AF12ZB, AF16B, AF16ZB, AF26B, AF26ZB, AF30B, AF30ZB, AF38B, AF38ZB, AF40B, AF52B, AF65B, AF80B, AF96B |
| Product Name | Fixing Clips |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC001044 - Mechanic interlock for switch |
| eClass | V11.0 : 27371303 |
| UNSPSC | 31162305 |
| IDEA Granular Category Code (IGCC) | 2980 >> Mounting clips |
| E-Number (Finland) | 3706552 |
| E-Number (Sweden) | 3211445 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (Part 2) (1SAC200017M0002) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
