ABB 1SBN110108T1000 – BX4 Protective Cover
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.006 kg |
| Country of origin | India |
| UPC / EAN | 3471523130708 |
Shipping & availability
When can 1SBN110108T1000 be shipped?
1SBN110108T1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBN110108T1000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBN110108T1000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN110108T1000, subject to availability and destination.

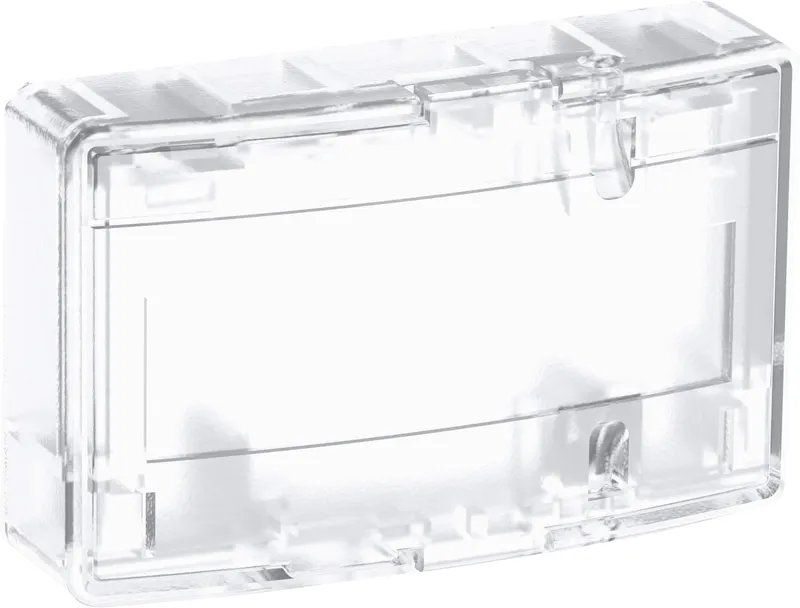

BX4 is a sealable and transparent protective cover to protect 1-stack AF(C)09(Z)(B)...96 contactors and 4-pole NF(C)(Z)(B) contactor relays against accidental contacts.
Specifications
General
| Order code (ABB product ID) | 1SBN110108T1000 |
| Type | BX4 |
| Lifecycle | Active (current ABB product) |
| Country of origin | India |
Ordering
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 39269097 |
Dimensions
| Product Net Width | 44.8 mm |
| Product Net Depth / Length | 15.47 mm |
| Product Net Height | 28.2 mm |
| Product Net Weight | 0.006 kg |
Technical
| Standards | UL 60335-2-40 LZGH2 A2L, UL 60947-5-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L |
| Suitable For | AF09, AF09Z, AF12, AF12Z, AF16, AF16Z, AF26, AF26Z, AF30, AF30Z, AF38, AF38Z, AF40, AF52, AF65, AF80, AF96, AFC09, AFC12, AFC16, AFC26, AFC30, AFC38, AFC40, AFC52, AFC65, AFC80, AFC96, AF09B, AF09ZB, AF12B, AF12ZB, AF16B, AF16ZB, AF26B, AF26ZB, AF30B, AF30ZB, AF38B, AF38ZB, AF40B, AF52B, AF65B, AF80B, AF96B, NF22E, NFZ22E, NF31E, NFZ31E, NF40E, NFZ40E, NFC22E, NFC31E, NFC40E, NFZB22E, NFB22E, NFZB31E, NFB31E, NFZB40E, NFB40E |
| Product Name | Protective cover |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3706554 |
| E-Number (Sweden) | 3211437 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (Part 2) (1SAC200017M0002) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
Certificates (8)
