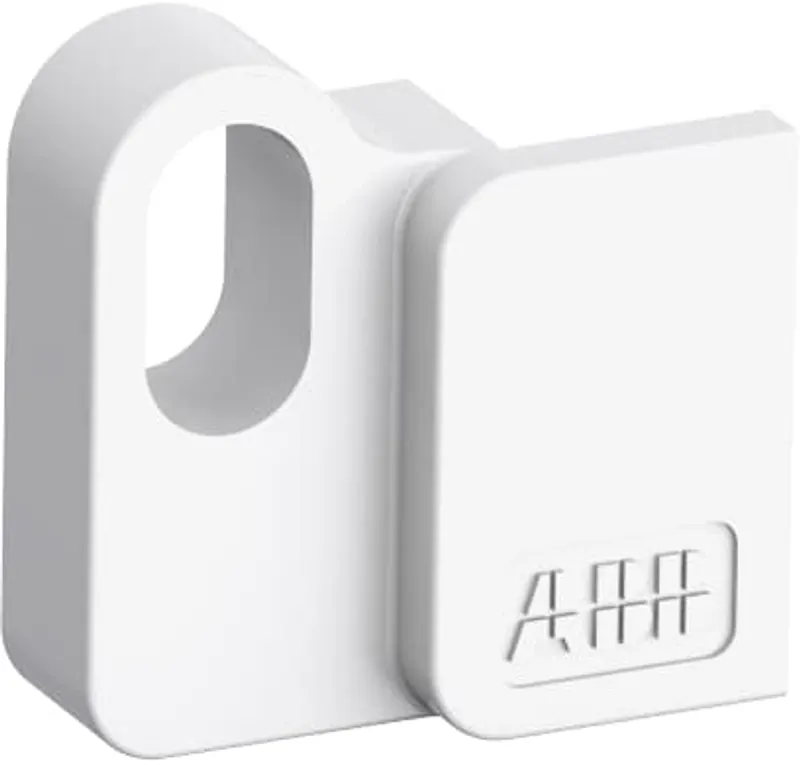

ABB 1SBN113403T1000 – BP65-4 Mounting Piece
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.004 kg |
| UPC / EAN | 3471523130982 |
Shipping & availability
When can 1SBN113403T1000 be shipped?
1SBN113403T1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBN113403T1000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBN113403T1000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN113403T1000, subject to availability and destination.
BP65-4 is a mounting piece for replacing installed contactors A50 ... A75 fixed by screws by AF(C)(S)40 ... AF(C)(S)65 contactors.
Specifications
General
| Order code (ABB product ID) | 1SBN113403T1000 |
| Type | BP65-4 |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 39269097 |
Dimensions
| Product Net Width | 30 mm |
| Product Net Depth / Length | 10 mm |
| Product Net Height | 27 mm |
| Product Net Weight | 0.004 kg |
Technical
| Terminal Type | Screw Terminals |
| Suitable For | AF40, AF52, AF65, AFC40, AFC52, AFC65, AF40B, AF52B, AF65B |
| Product Name | Mounting Piece |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3707154 |
| E-Number (Sweden) | 3210235 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (Part 2) (1SAC200017M0002) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
More ABB parts

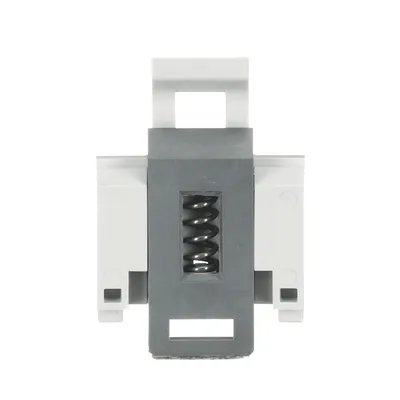

Available on requestBPR65-4 35 mm Rail Hook

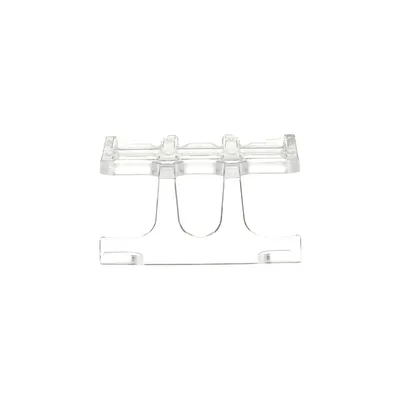

Available on requestLT65-30 Terminal Shroud
