ABB 1SBN090106R1000 – PMS38-4 Adapter Plate
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.027 kg |
| UPC / EAN | 3471523021037 |
Shipping & availability
When can 1SBN090106R1000 be shipped?
1SBN090106R1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBN090106R1000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBN090106R1000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN090106R1000, subject to availability and destination.

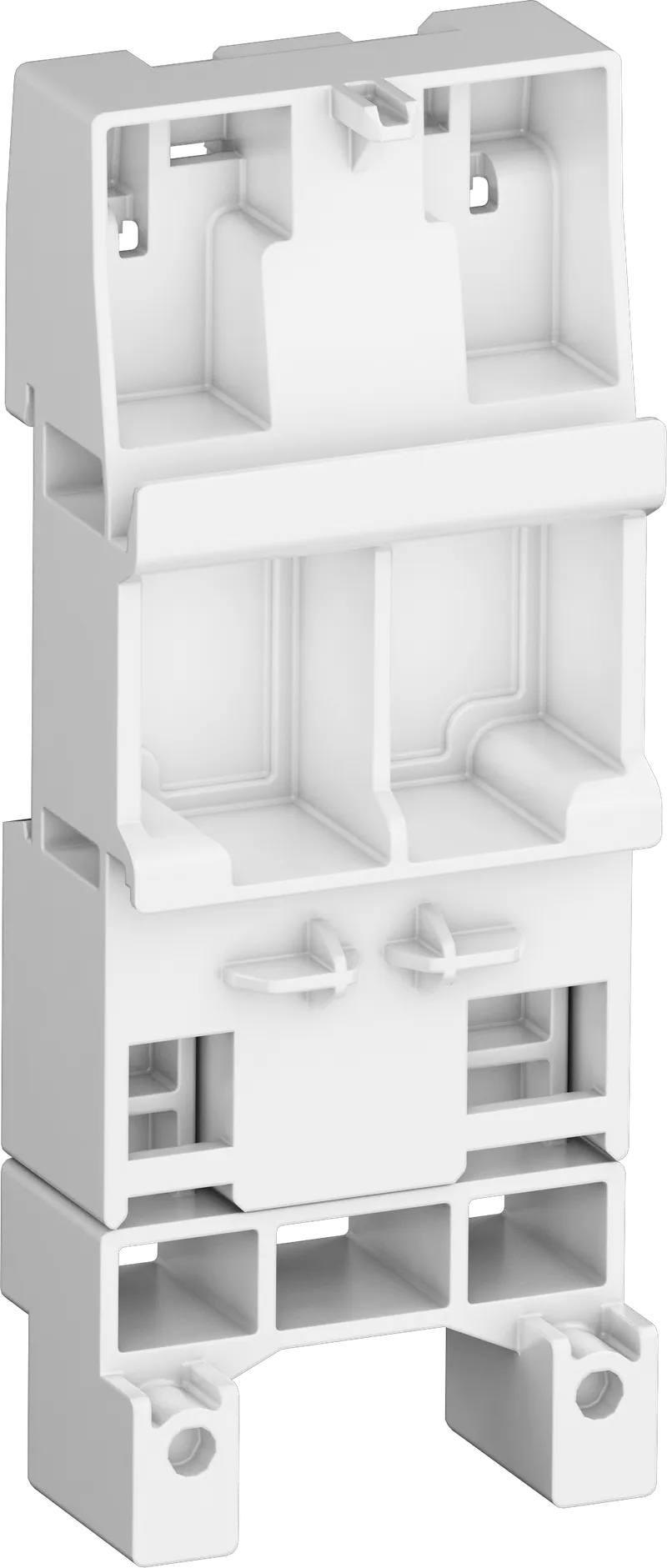

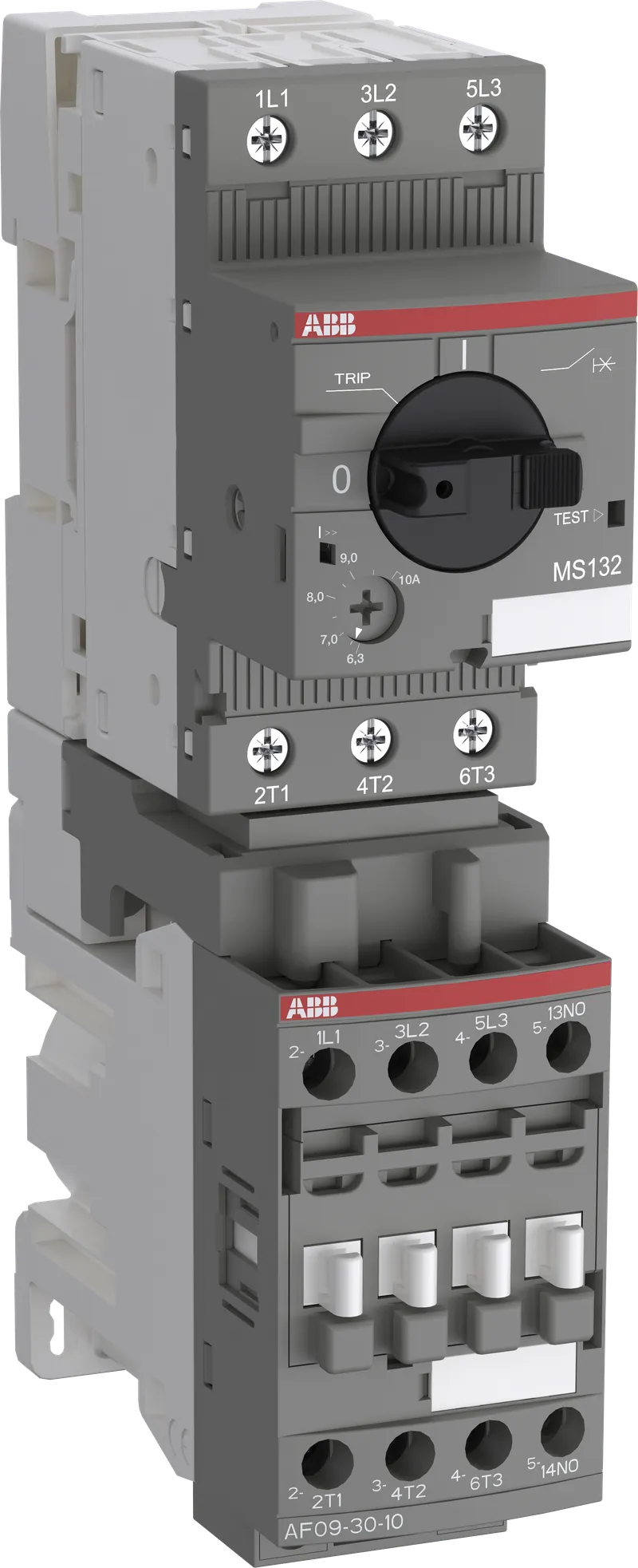

The PMS38-4 is an adapting plate allowing the assembly of Direct-on-line (DOL) motor starters using MS116 or MS132(K) manual motor starters, AF..Z..(K) contactors with DC control voltage 24 V DC (coil 30) and BEA..-4(KF) connecting links. PMS38-4 is made of two parts: one part to fix on the manual motor starter, the second one to fix on the connecting link. DOL starting and reversing starters can be mounted on single TH35 rail or fixed by screws on plate using MS serie’s FS116 fixing kits. PMS38-4 is the adequate solution in case of use of three-phase busbar systems feeding DOL and reversing starter using contactors of different depths.
Specifications
General
| Order code (ABB product ID) | 1SBN090106R1000 |
| Type | PMS38-4 |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369010 |
Dimensions
| Product Net Width | 45 mm |
| Product Net Depth / Length | 25.9 mm |
| Product Net Height | 116.7 mm |
| Product Net Weight | 0.027 kg |
Technical
| Suitable For | MO132, MS116, MS132, AF09Z, AF12Z, AF16Z, AF26Z, AF30Z, AF38Z, AFS09Z, AFS12Z, AFS16Z, AFS26Z, AFS30Z, AFS38Z |
| Product Name | Adapter Plate |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39121521 |
| IDEA Granular Category Code (IGCC) | 4727 >> Motor starter controls |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (1SBC101066M6801) | |
| Instructions and Manuals (Part 2) (1SAC200017M0002) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
