ABB 1SBN110000R1000 – BA5-50 Function Marker

MPN: 1SBN110000R1000 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Block Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.017 kg
UPC / EAN	3471522121424

Shipping & availability

When can 1SBN110000R1000 be shipped?

1SBN110000R1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SBN110000R1000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SBN110000R1000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN110000R1000, subject to availability and destination.

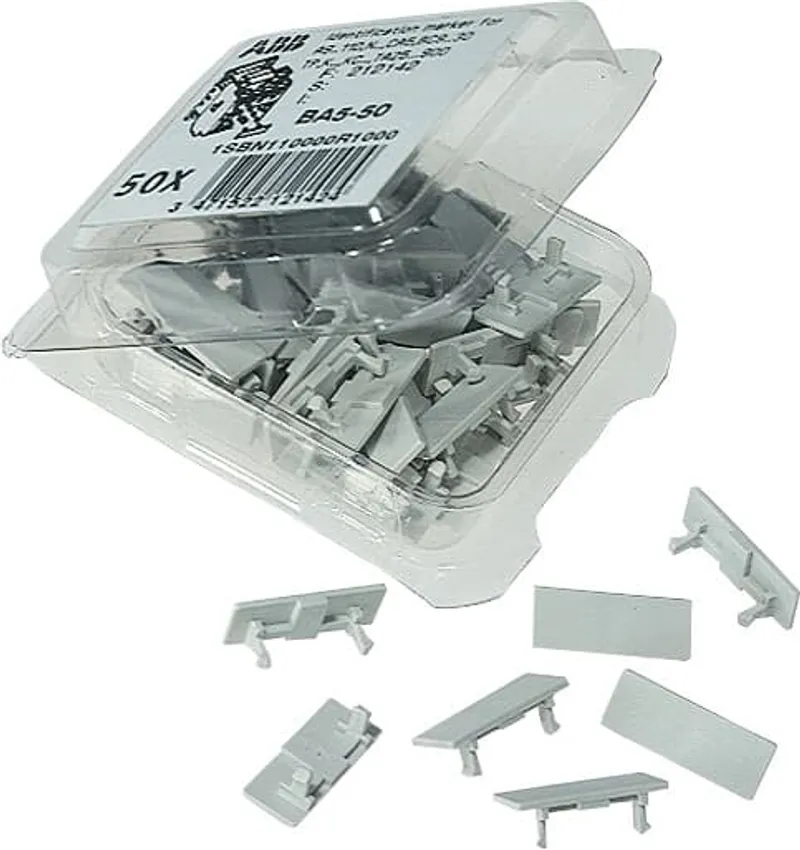

BA5-50 is a set of 50 function markers to identify contactors, overload relays, accessories on front face.

Marker dimensions are 7 x 19 mm (.276" x .748").

Specifications

General

Order code (ABB product ID)	1SBN110000R1000
Type	BA5-50
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	39269097

Dimensions

Product Net Width	19.8 mm
Product Net Depth / Length	4.5 mm
Product Net Height	7.5 mm
Product Net Weight	0.017 kg

Technical

Suitable For	AF45, AF50, AF63, AF75, AF95B, GAF75, A9, A12, A16, A26, A30, A40, A45, A50, A63, A75, A95, A110, AL9, AL9Z, AL12, AL12Z, AL16, AL16Z, AL26, AL30, AL40, AE45, AE50, AE63, AE75, TAL9, TAL12, TAL16, TAL26, TAL30, TAL40, TAE45, TAE50, TAE75, GA75, GAE75, UA16, UA26, UA30, UA50, UA63, UA75, UA95, UA110, UA16RA, UA26RA, UA30RA, UA50RA, UA63RA, UA75RA, UA95RA, UA110RA, UAF75RA, UAF95RA, UAF110RA, N22E, N31E, N40E, N44E, N53E, N62E, N71E, N80E, N33/11, N51/11, NL22E, NLZ22E, NL31E, NLZ31E, NL40E, NLZ40E, NL44E, NL53E, NL62E, NL71E, NL80E, NL33/11, NL51/11, TNL22E, TNL31E, TNL40E, TNL44E, TNL62E, TNL80E, AX06, AX09, AX12, AX18, AX25, AX32, AX40, AX50, AX65, AX80, AX95, AX115, AX150, AX185, AX205, AX260, AX300, AX370, NX22E, NX31E, NX40E
Product Name	Function Marker
Remarks	50 pcs in a box

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	Product Not in WEEE Scope

External Classifications and Standards

ETIM 7	EC002498 - Accessories for low-voltage switch technology
ETIM 8	EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9	EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC	39122221
IDEA Granular Category Code (IGCC)	5219 >> Switch part or accessory

Downloads & documentation

Official documents from ABB, downloaded directly from the manufacturer.

Data sheets & manuals

Data Sheet, Technical Information (1SBC100214C0202)

CAD & dimension drawings

CAD Dimensional Drawing (2CDC001079B0201)

Certificates (4)

REACH Declaration (2CMT2021-006202)
RoHS Declaration (2CMT2021-006277)
Declaration of Conformity - CE (1SBD250835U1000)
Declaration of Conformity - UKCA (1SBD250836U1000)
