What is the ABB 1SBN083911R1000?

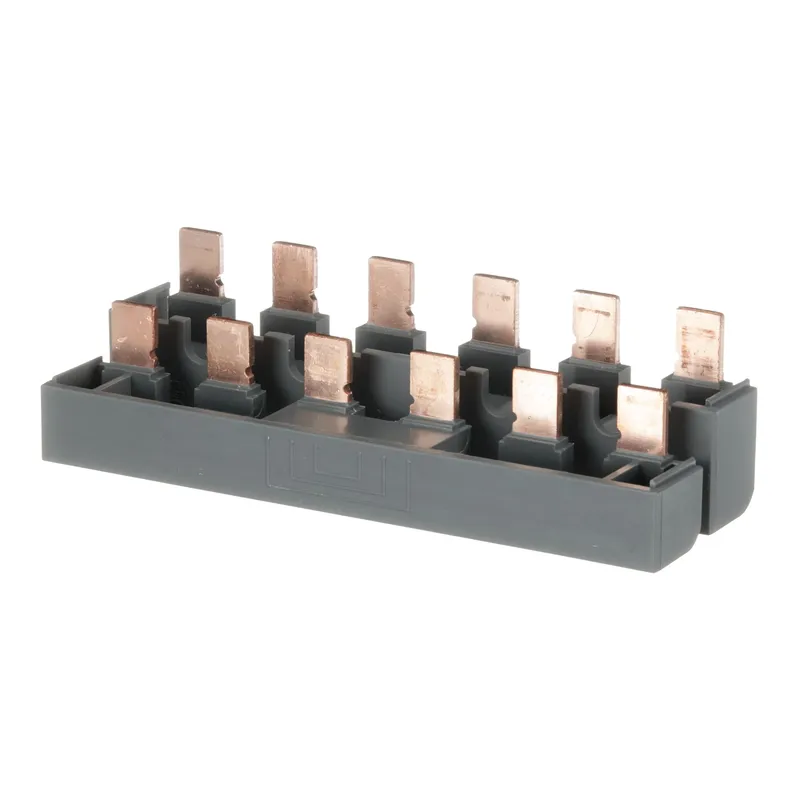

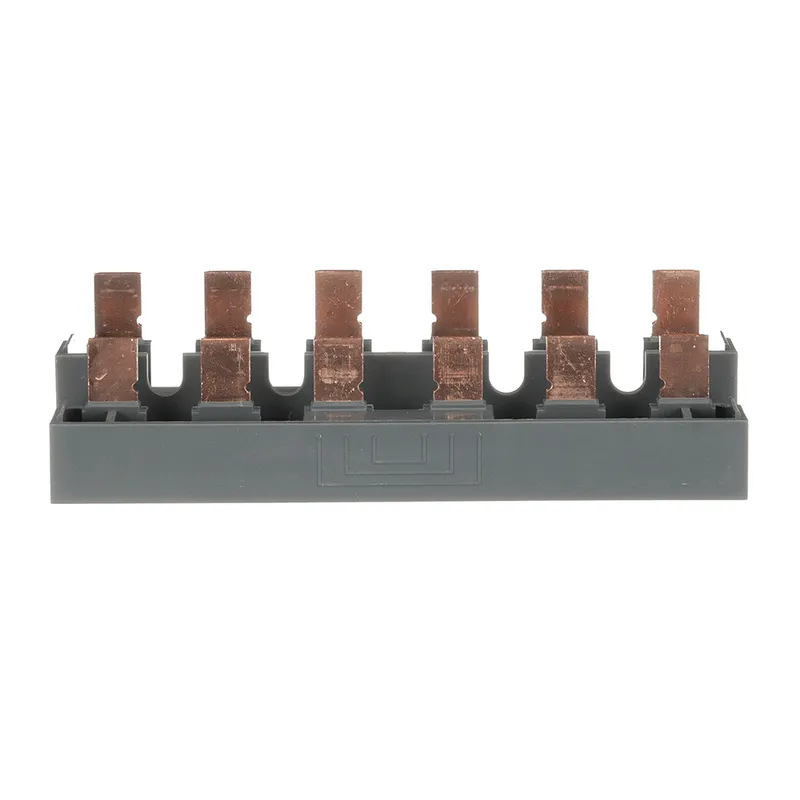

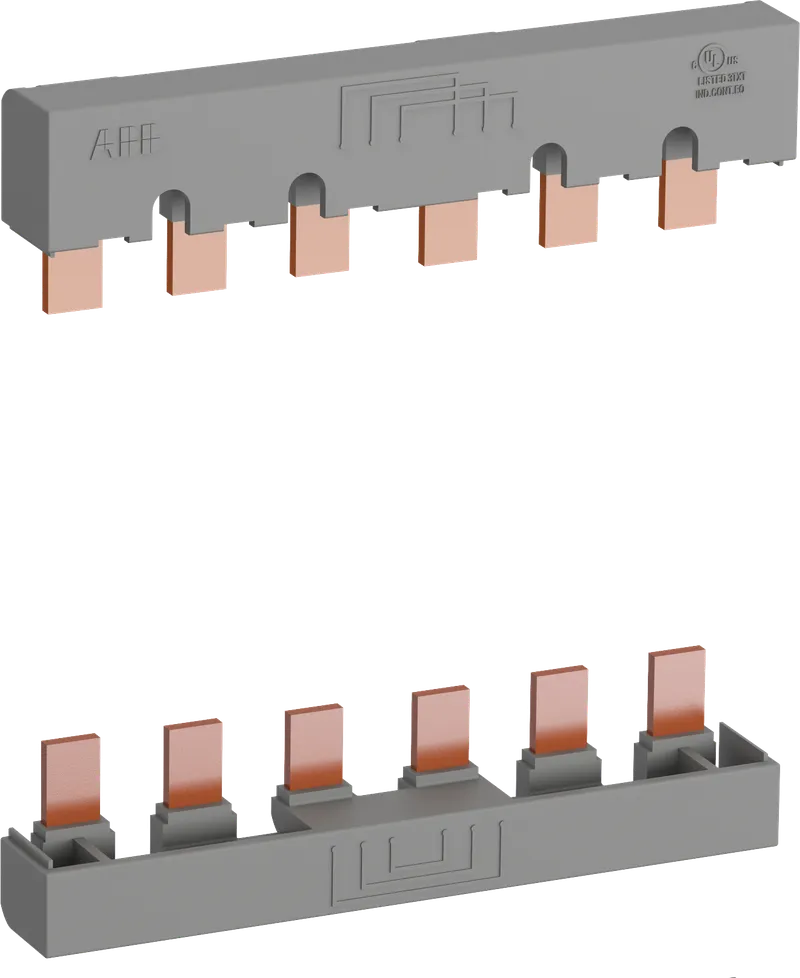

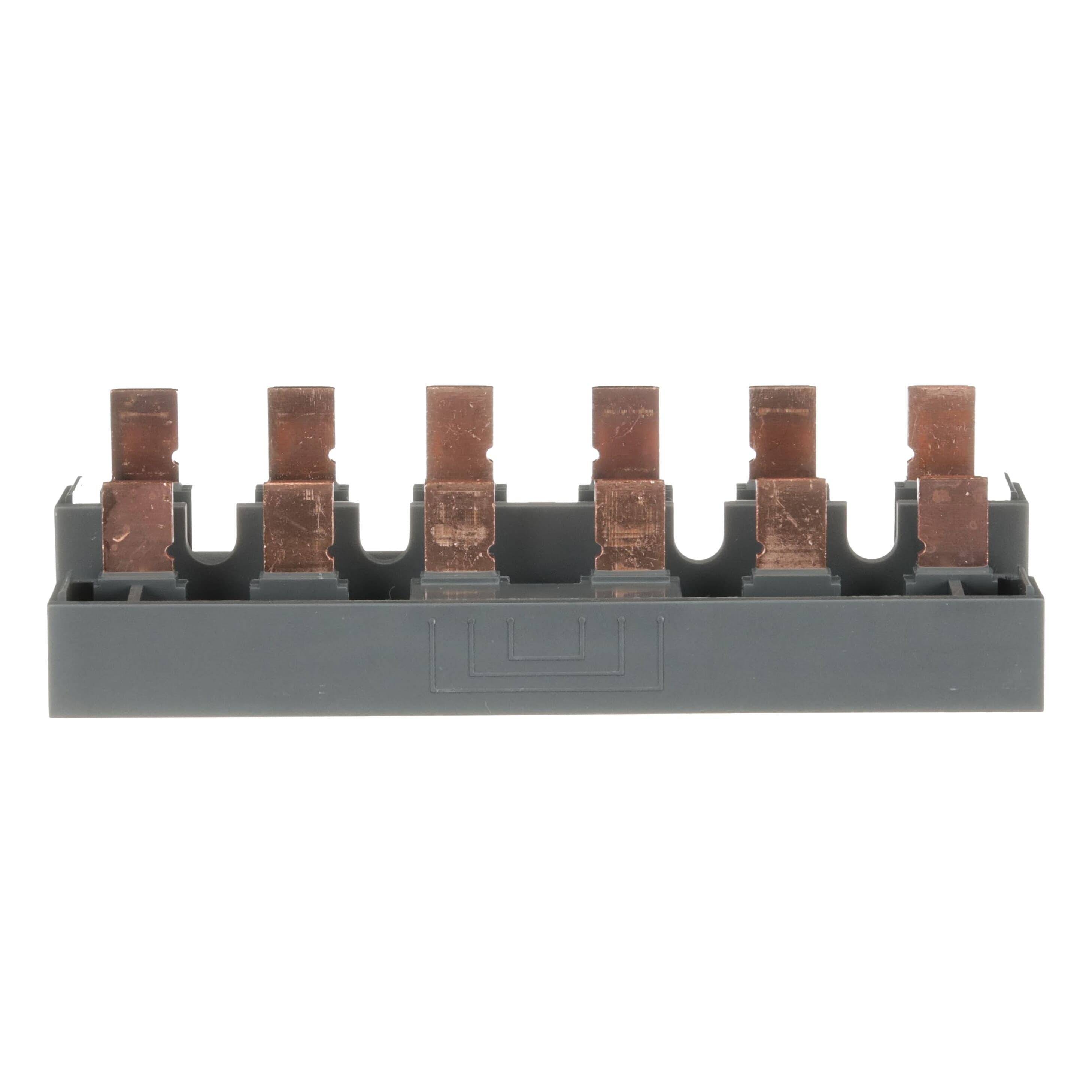

BER96-4 is a connection set for reversing contactors used to easily connect the main poles of two 3-pole AF80..AF96, AFC80..AFC96 or AFS80..AFS96 contactors mounted side by side.

The BER connection sets are made up of:

1 upstream and 1 downstream connections

Insulated, solid copper bars

Specifications

General

Order code (ABB product ID)1SBN083911R1000
TypeBER96-4
LifecycleActive (current ABB product)
Country of originIndia

Ordering

Minimum Order Quantity1 piece
Customs Tariff Number85389099

Dimensions

Product Net Width140 mm
Product Net Depth / Length21.05 mm
Product Net Height40 mm
Product Net Weight0.25 kg

Technical

StandardsEN 60947-1, EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1
Rated Operational VoltageMain Circuit 1000 V AC
Rated Frequency (f)Main Circuit 50 / 60 Hz
Terminal TypeScrew Terminals
Suitable ForAF80, AF96, AFC80, AFC96, AFS80, AFS96, AF80B, AF96B
Product NameConnection Set

Material Compliance

RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
eClassV11.0 : 27371392
UNSPSC39122221
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
E-Number (Finland)3707151
E-Number (Sweden)3210215
