B&R 7DI138.70 Used Rev. D0
Request a Quote
Quick facts
| Availability | In stock — 34 available |
| Category | Digital I/O Modules |
| Warranty | 3-month |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 7DI138.70 be shipped?
7DI138.70 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up 7DI138.70 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 7DI138.70.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7DI138.70, subject to availability and destination.

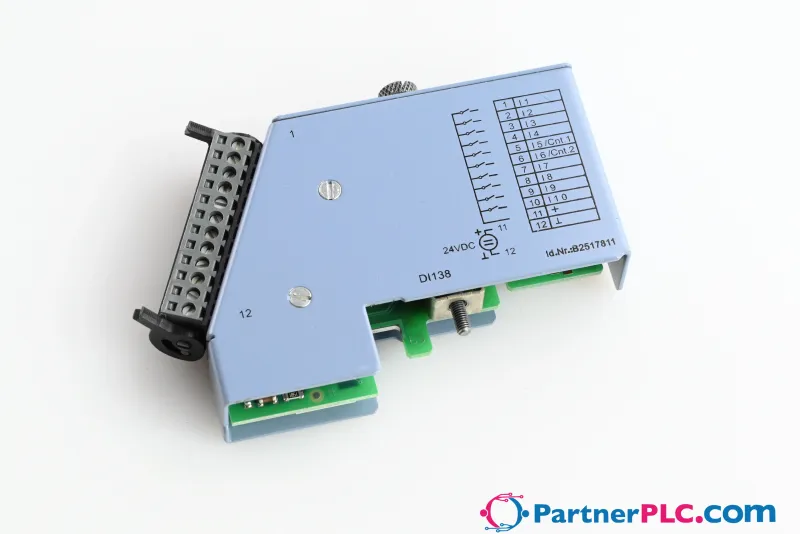

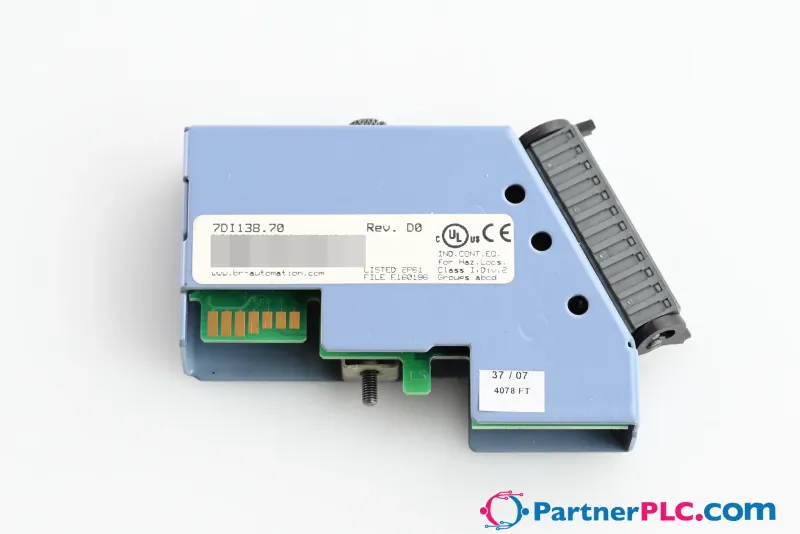

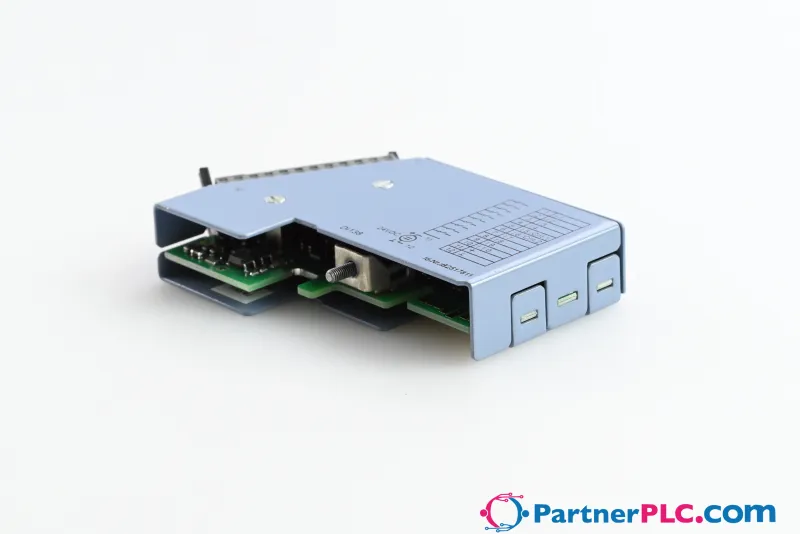

2003 digital input module, 10 inputs 24 VDC, sink, 2 inputs usable for event counter operation, input frequency 20 kHz, screw-in module, order 1x terminal block TB712 separately!
Accessories
Required accessories (order separately)
| 7TB712.91 | Terminal blocks — The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina… |
| 7TB712.9 | Terminal blocks — The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina… |
Specifications
General Information
| C-UL-US Listed | In preparation |
| B&R ID Code | $48 |
| Module Type | B&R 2003 screw-in module |
| Slot | AF101 adapter module, CP interface Power Panel interface |
| Status Display | None |
| Power Consumption | Max. 0.4 W |
| Design | IEC1131 - Type 1 |
| Wiring | Sink |
| Input Voltage – Minimum | 18 VDC |
| Input Voltage – Nominal | 24 VDC |
| Input Voltage – Maximum | 30 VDC |
| Switching Threshold – LOW | <5V |
| Switching Threshold – HIGH | > 15 V |
| Input Current – Inputs 5 and 6 | 8 mA @ 24 VDC |
| Input Current – Other Inputs | 5 mA @ 24 VDC |
| Input Delay – Inputs 5 and 6 | Max. 3 µs |
| Input Delay – Other Inputs | Max. 1.3 ms |
| Electrical Isolation | Input - PLC |
| Signal Form | Square wave pulse |
| Input Frequency | 20 kHz |
| Count Frequency | 40 kHz |
| Counter Size | 16-bit |
| Inputs – Input 5 | Counter 1 |
| Inputs – Input 6 | Counter 2 |
Mechanical Characteristics
| Dimensions | B&R 2003 screw-in module |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 7DI138.70 | PDF · 770 KB · 1.0 (06/08/2004) - EN |
