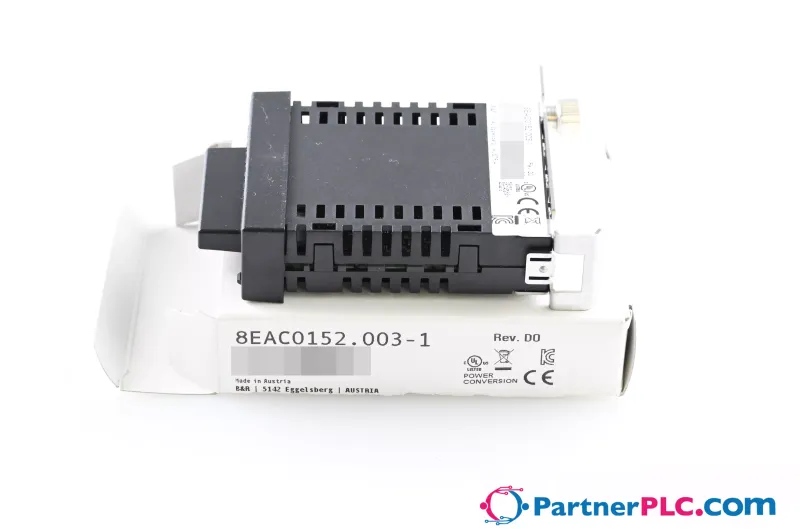

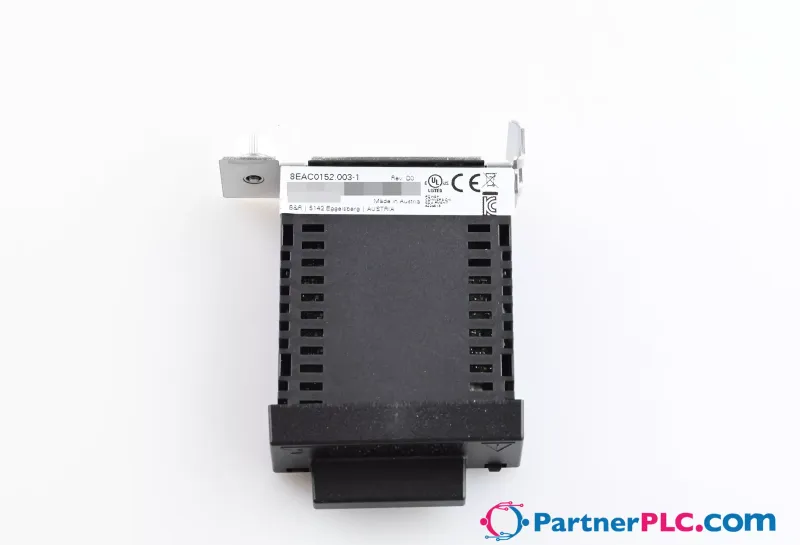

B&R 8EAC0152.003-1

Servo & Motion Control

MPN: 8EAC0152.003-1
Category: Servo & Motion Control

€444.14excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R 8EAC0152.003-1?

Servo & Motion Control

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Short description	3 analog multi-encoder interfaces in one module
Module type	ACOPOS P3 plug-in module
B&R ID code	0xEFDF
Slot	Slot 1
Max. power consumption	12 W

Encoder connection

Module-side connection	10-pin male iX industrial connector, coding B
Status indicators	None (note: The direction of rotation of the encoder can be displayed on the 8EAD0000.000-1 display module.)
Max. encoder cable length	75 m

Encoder inputs

Sine/Cosine inputs – Signal transmission	Differential signals, symmetrical (note: HIPERFACE encoder type: Asymmetrical)
Sine/Cosine inputs – Signal frequency	Depends on the configured encoder type
Sine/Cosine inputs – Terminating resistor	120 Ω
Sine/Cosine inputs – Resolution	12-bit

Encoder power supply

Protective measures – Overload-proof	Yes
Protective measures – Short-circuit proof	Yes
Output voltage	Configurable; Typ. 11.45 V ±0.1 V / 5.2 V ±0.1 V
Load capacity	Max. 300 mA for 5.2 V; Max. 200 mA for 11.45 V (note: Up to revision C0, the load capacity is reduced from 200 mA to 100 mA at an output voltage of 11.45 V and ambient temperatures starting at 40°C.)
Sense lines	None (note: Possible to compensate for encoder voltage drop by configuring cable resistance (max. 2x 0.7 V at 5 V output voltage))

Reference input

Signal transmission	Differential signal, symmetrical
Differential voltage for low	≤-0.2 V
Differential voltage for high	≥+0.2 V
Terminating resistor	120 Ω

Position

Resolution @ 1 V SS

2 14 increments * Number of encoder lines

Temperature sensor connection

Quantity	3
Resistance range	500 Ω to 5 kΩ

Synchronous serial interface

Signal transmission	RS485
Data transfer rate	Depends on the configured encoder type

Support

Motion system – mapp Motion	5.1.0 and higher
Motion system – ACP10/ARNC0	5.00.0 and higher

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C

Mechanical properties

Dimensions – Width	82 mm
Dimensions – Length	24 mm
Dimensions – Depth	103 mm
Weight	72 g

Accessories

Optional accessories (1)

8ECG00X4.3151D-0

Adapter cables — ACOPOS P3 adapter cable, length 0.4 m, for analog multi-encoder interfaces and incremental encoder interfaces, 5x 2x 0.14 mm², 10-pin male…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 8EAC0152.003-1PDF · 581 KB · 1.8 (06/13/2023) - EN

Certificates (3)

8EAC0152.003-1: frequently asked questions

When can 8EAC0152.003-1 be shipped?

8EAC0152.003-1 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up 8EAC0152.003-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 8EAC0152.003-1.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8EAC0152.003-1, subject to availability and destination.
