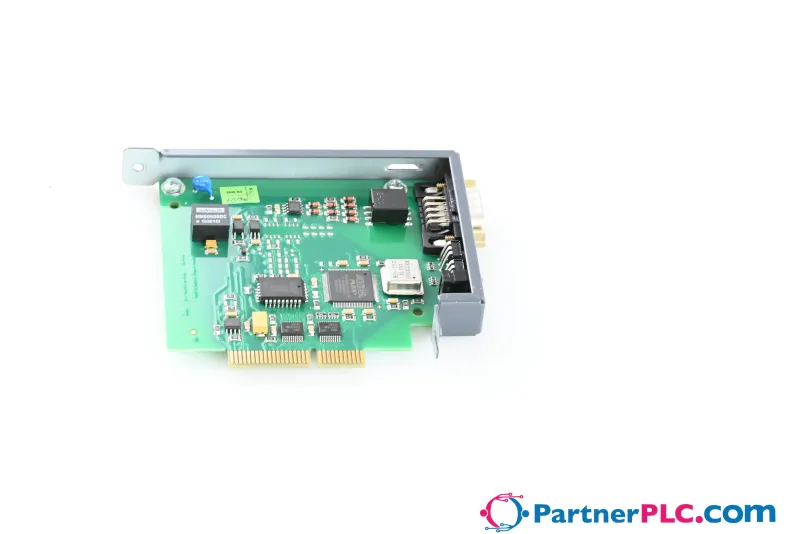

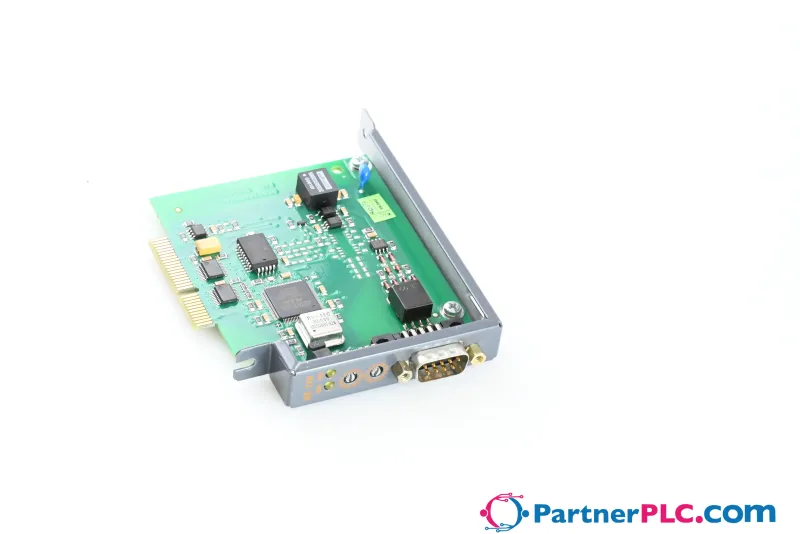

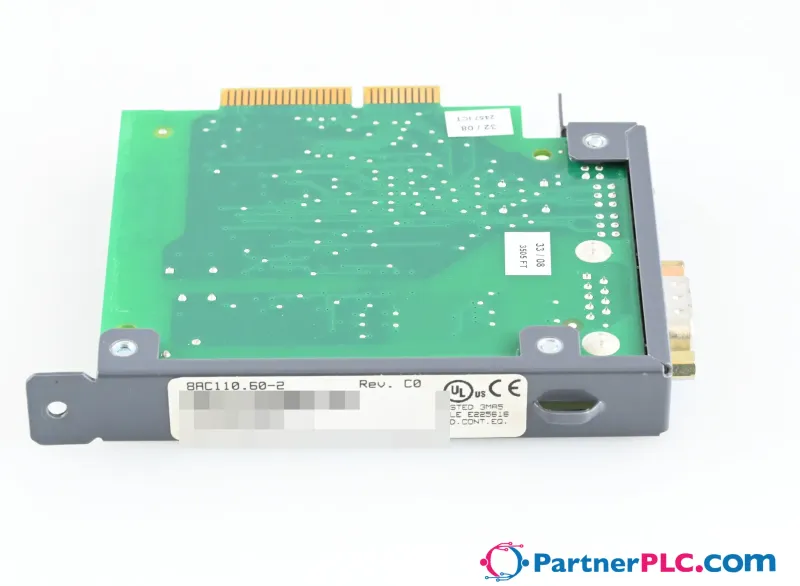

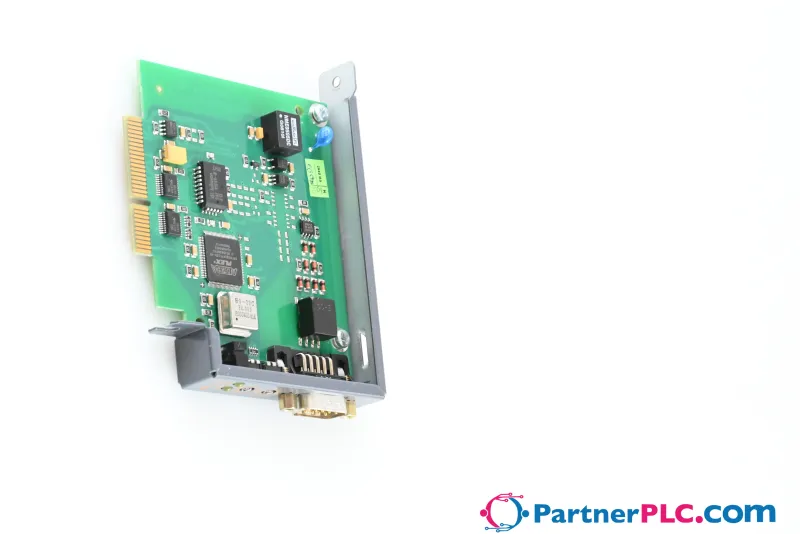

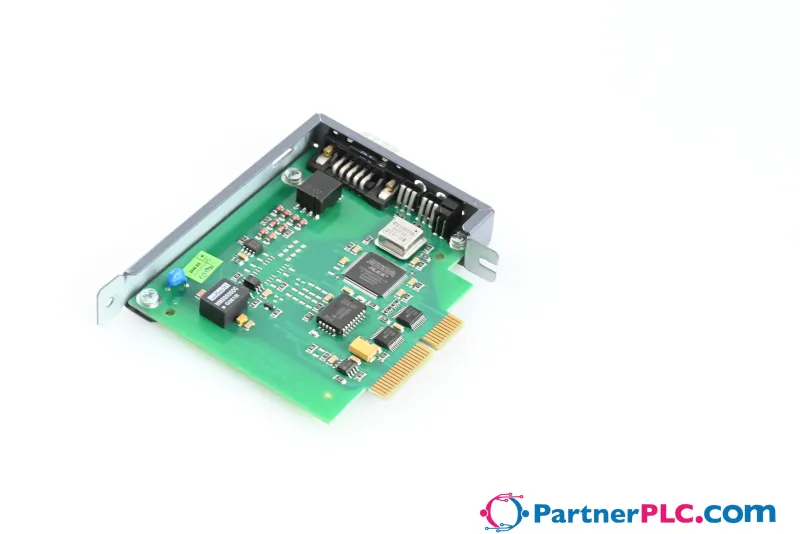

B&R 8AC110.60-2

Servo & Motion Control

MPN: 8AC110.60-2
Category: Servo & Motion Control

€62.54excl. VAT & shipping

In stock — 5 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

3-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R 8AC110.60-2?

Servo & Motion Control

Specifications

General information

Certifications – CE	Yes
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Module type	ACOPOS plug-in module
B&R ID code	0x1198
Slot	Slot 1
Power consumption	Max. 0.7 W

Interfaces

CAN – Quantity	1
CAN – Module-side connection	9-pin male DSUB connector
CAN – Status indicators	RXD/TXD LEDs
CAN – Baud rate	500 kbit/s
CAN – Electrical isolation	Yes
CAN – Max. distance	60 m
CAN – Network-capable	Yes
CAN – Bus terminating resistor	Externally wired

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C

Accessories

Optional accessories (3)

7AC911.9	Infrastructure components — The AC911 bus connector is used to connect a controller to a CAN network. The terminating resistor is integrated in the bus connector. The…
0AC913.92	Infrastructure components — Bus adapter, CAN, 2 CAN interfaces, including 30 cm attachment cable (DSUB)
0AC912.9	Infrastructure components — Bus adapter, CAN, 1 CAN interface

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D file STEP 8AC110.60-2ZIP · 183 KB · 1.0 (03/04/2013)

Certificates (1)

ACOPOS KC certificatesZIP · 601 KB · 1.00 (04/03/2019)

8AC110.60-2: frequently asked questions

When can 8AC110.60-2 be shipped?

8AC110.60-2 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up 8AC110.60-2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 8AC110.60-2.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8AC110.60-2, subject to availability and destination.
