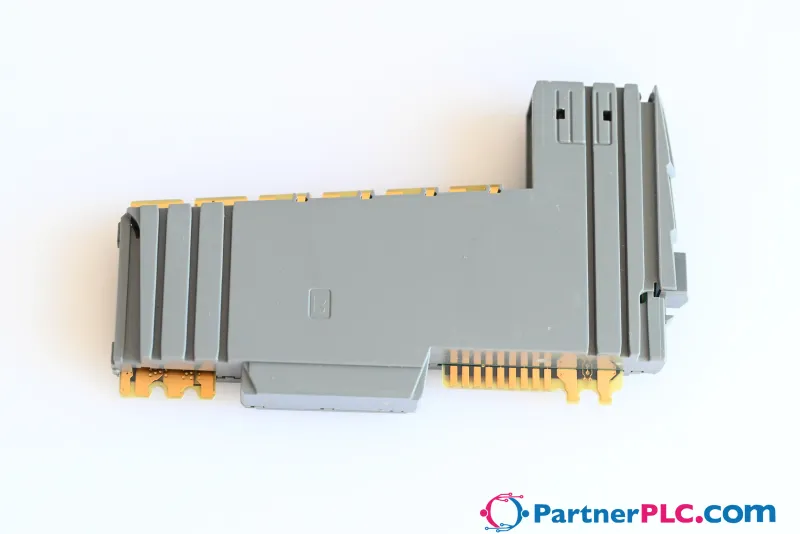

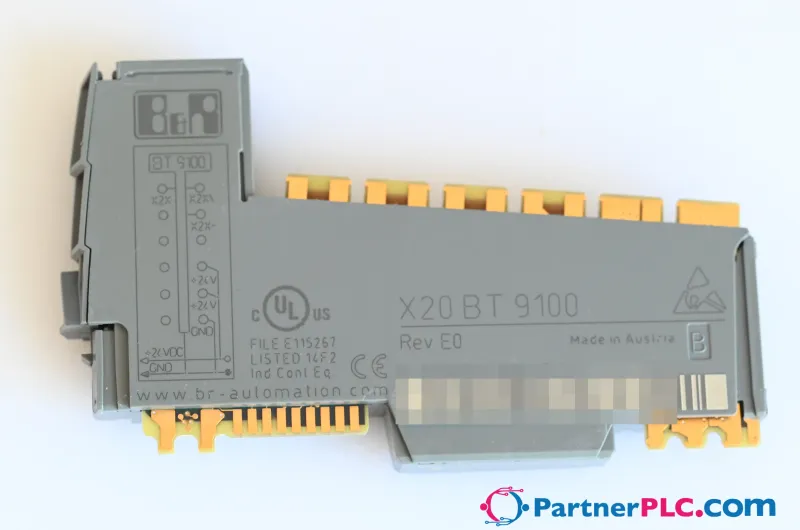

B&R X20BT9100

X2X Link bus transmitter For seamless expansion of the system Up to 100 m segment length Supply for…

MPN: X20BT9100
Category: Communication Modules

€15.90excl. VAT & shipping

In stock — 24 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R X20BT9100?

X2X Link bus transmitter For seamless expansion of the system Up to 100 m segment length Supply for internal I/O power supply Operation only on the rightmost slot The bus transmitter is used for seamless expansion of the X20 system. Stations can be up to 100 m apart. The bus transmitter module is only permitted to be operated with a bus module where the internal I/O power supply is connected through (e.g. X20BM11). If the supply is used for the internal I/O power supply, this potential group is not permitted to be supplied by any other module. An I/O module with bus module X20BM01 must be used to isolate the potential group.

Specifications

Short description

Bus transmitter

X2X Link bus transmitter with supply for I/O

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – X2X bus function	Yes, using LED status indicator
Power consumption – As bus transmitter	0.1 W (note: The specified values are maximum values. For examples of the exact calculation, see section "Mechanical and electrical configuration" in the X20 system user's manual)
Power consumption – Additionally as supply module	0.6 W (note: The specified values are maximum values. For examples of the exact calculation, see section "Mechanical and electrical configuration" in the X20 system user's manual)
Power consumption – Bus	0.5 W (note: The specified values are maximum values. For examples of the exact calculation, see section "Mechanical and electrical configuration" in the X20 system user's manual)
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0x1BC2
Status indicators	X2X bus function, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]	-

Input I/O power supply

Input voltage	24 VDC -15% / +20%
Fuse	Required line fuse: Max. 10 A, slow-blow
Reverse polarity protection	No

Output I/O power supply

Nominal output voltage	24 VDC
Behavior on short circuit	Required line fuse
Permissible contact load	10 A

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB06 or X20TB12 separately. ; Order 1x bus module X20BM11 or X20BM15 separately.
Pitch	12.5 +0.2 mm

Accessories

Required accessories (order separately)

X20BM15	Bus modules — The bus module is the base for all X20 24 VDC I/O modules; The internal I/O supply is interconnected; Manual node number assignment; Indepe…
X20BM11	Bus modules — Bus module for 24 VDC I/O modules; The internal I/O power supply is connected through. The bus module is the base for all 24 VDC I/O module…
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…
X20TB06	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…

Optional accessories (2)

X67CA0X99.5000	X2X Link Cable — Cable for custom assembly, 500 m
X67CA0X99.1000	X2X Link Cable — Cable for custom assembly, 100 m
