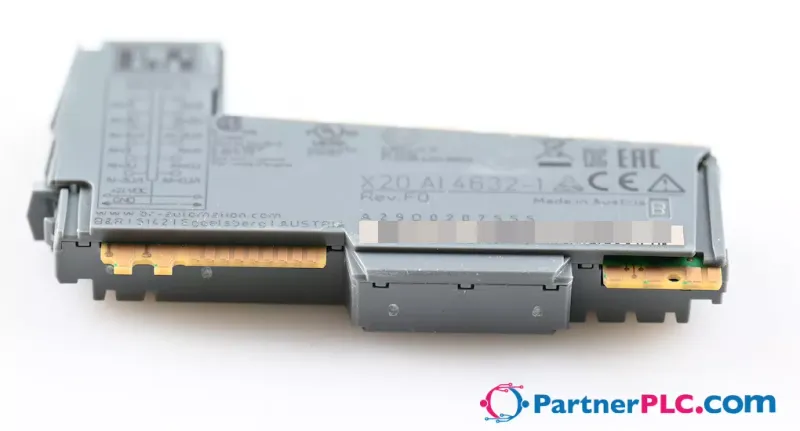

B&R X20AI4632-1 – 4 analog inputs; Either current or voltage signal possible
Request a Quote
Quick facts
| Availability | In stock — 3 available |
| Category | Analog I/O Modules |
| Warranty | 12-month |
| Country of origin | null |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can X20AI4632-1 be shipped?
X20AI4632-1 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up X20AI4632-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20AI4632-1.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20AI4632-1, subject to availability and destination.
• 4 analog inputs
• Either current or voltage signal possible
• Extended signal range
• 16-bit digital converter resolution
• Simultaneous input conversion
• Very fast conversion time
The module is equipped with 4 inputs with 16-bit digital converter resolution. It is possible to select between the current and voltage signal using different terminals.
Accessories
Required accessories (order separately)
| X20BM15 | Bus modules — The bus module is the base for all X20 24 VDC I/O modules; The internal I/O supply is interconnected; Manual node number assignment; Indepe… |
| X20BM11 | Bus modules — Bus module for 24 VDC I/O modules; The internal I/O power supply is connected through. The bus module is the base for all 24 VDC I/O module… |
| X20TB12 | Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl… |
Specifications
Short description
| I/O module | 4 analog inputs ±11 V or 0 to 22 mA |
General information
| Diagnostics – Module run/error | Yes, using LED status indicator and software |
| Diagnostics – Inputs | Yes, using LED status indicator and software |
| Diagnostics – Channel type | Yes, using software |
| Power consumption – Bus | 0.01 W |
| Power consumption – Internal I/O | 1.5 W " data-placement="top" data-html="true" data-container="body" data-content="To reduce power dissipation, B&R recommends bridging unused inputs on the terminals or configuring them as current signals."> |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck |
| Certifications – KC | Yes |
| B&R ID code | 0xA29D |
| Status indicators | I/O function per channel, operating state, module status |
| Additional power dissipation caused by actuators (resistive) [W] | - |
Analog inputs
| Digital converter resolution – Voltage | ±15-bit |
| Digital converter resolution – Current | 15-bit |
| Output format – Voltage | INT 0x8001 - 0x7FFF / 1 LSB = 0x0001 = 335.693 µV |
| Output format – Current | INT 0x0000 - 0x7FFF / 1 LSB = 0x0001 = 671.387 nA |
| Input impedance in signal range – Voltage | 20 MΩ |
| Input impedance in signal range – Current | - |
| Load – Voltage | - |
| Load – Current | <400 Ω |
| Permissible input signal – Voltage | Max. ±30 V |
| Permissible input signal – Current | Max. ±50 mA |
| Output of digital value during overload – Voltage | 0x8001 |
| Output of digital value during overload – Current | 0x0000 |
| Output of digital value during overload – Voltage | 0x7FFF |
| Output of digital value during overload – Current | 0x7FFF |
| Max. error – Gain | 0.08% " data-placement="top" data-html="true" data-container="body" data-content="Based on the current measured value."> |
| Max. error – Offset | 0.01% " data-placement="top" data-html="true" data-container="body" data-content="Based on the 22 V measurement range."> |
| Max. error – Gain | 0.08% " data-placement="top" data-html="true" data-container="body" data-content="Based on the current measured value."> |
| Max. error – Offset | 0.02% " data-placement="top" data-html="true" data-container="body" data-content="Based on the 22 mA measurement range."> |
| Max. gain drift – Voltage | 0.01%/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the current measured value."> |
| Max. gain drift – Current | 0.01%/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the current measured value."> |
| Max. offset drift – Voltage | 0.001%/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the 22 V measurement range."> |
| Max. offset drift – Current | 0.002%/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the 22 mA measurement range."> |
| Common-mode rejection – DC | 70 dB |
| Common-mode rejection – 50 Hz | 70 dB |
| Nonlinearity – Voltage | <0.01% " data-placement="top" data-html="true" data-container="body" data-content="Based on the 22 V measurement range."> |
| Nonlinearity – Current | <0.015% " data-placement="top" data-html="true" data-container="body" data-content="Based on the 22 mA measurement range."> |
| Input | ±11 V or 0 to 22 mA, via different terminal connections |
| Input type | Differential input |
| Conversion time | 50 μs for all inputs |
| Output format | INT |
| Input protection | Protection against wiring with supply voltage |
| Conversion procedure | SAR |
| Input filter | Hardware - Third-order low-pass filter / cutoff frequency 10 kHz |
| Common-mode range | ±12 V |
| Crosstalk between channels | <-70 dB |
| Insulation voltage between channel and bus | 500 V eff |
Electrical properties
| Electrical isolation | Channel isolated from bus; Channel not isolated from channel |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | See section "Derating". |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Note | Order 1x terminal block X20TB12 separately.; Order 1x bus module X20BM11 separately. |
| Pitch | 12.5 +0.2 mm |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Data sheet X20(c)AI4632-1 | PDF · 664 KB · 3.21 (07/31/2025) - EN |
| X20 Package leaflet ATEX/CSA | PDF · 2 MB · 1.4 (09/17/2024) |
| X20 System User´s Manual | PDF · 50 MB · 4.40 (03/10/2026) - EN |
CAD & dimension drawings
| 3D File DXF/STEP X20 Electronic module | ZIP · 10 KB · 1.0 (10/17/2005) |
| 3D File STEP X20 I/O-Slice | ZIP · 872 KB · 1.1 (03/13/2019) |
| Dimensions PDF X20 Electronic module | PDF · 3 KB · 1.0 (10/17/2005) |
Certificates (15)
