B&RNew

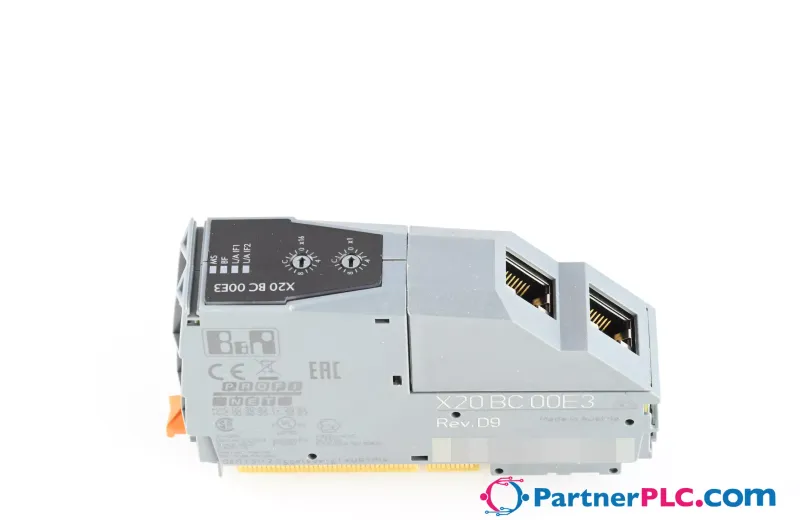

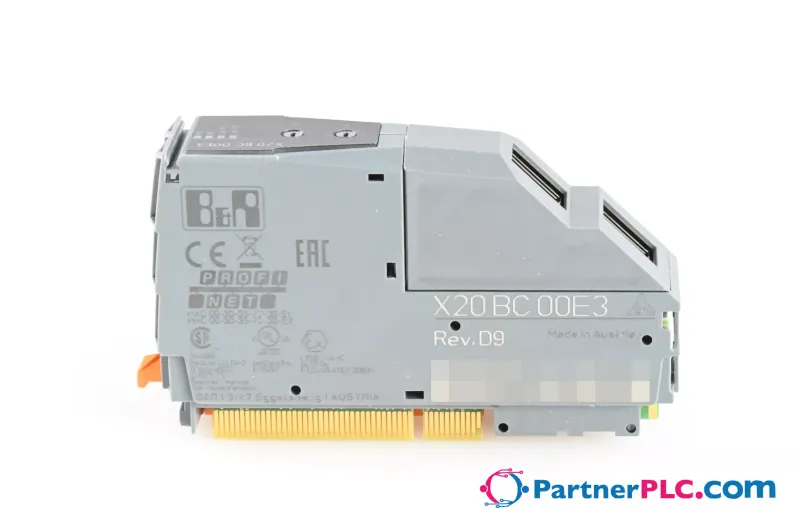

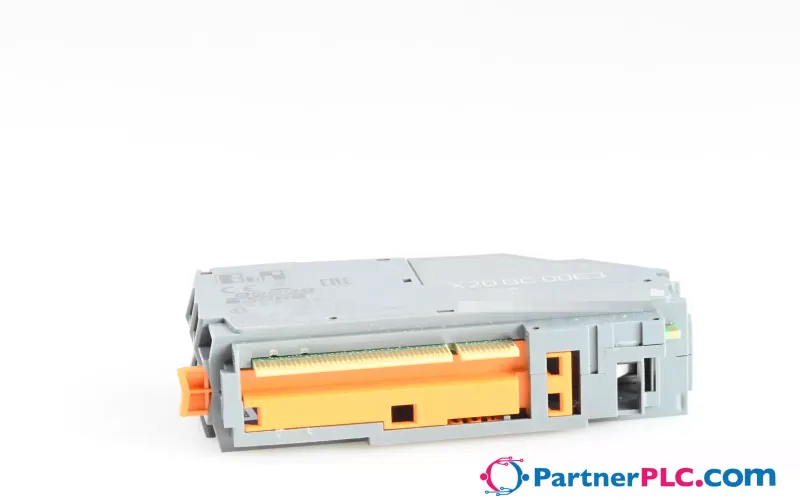

B&R X20BC00E3

Fieldbus: PROFINET IO I/O configuration via the fieldbus Conformance Class B (RT) Minimum cycle time 1 ms…

MPN: X20BC00E3
Category: Communication Modules

€1,058.94excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R X20BC00E3?

Fieldbus: PROFINET IO I/O configuration via the fieldbus Conformance Class B (RT) Minimum cycle time 1 ms Integrated switch for cabling multiple slaves 100 Mbit/s full duplex mode Up to 1440 bytes of input data and up to 1440 bytes of output data are possible Integrated website PROFINET diagnostics and module diagnostics during runtime from within the master environment Module and switch diagnostics during runtime using the website or SNMP PROFINET (Process Field Network) is an Industrial Ethernet protocol. It uses TCP/IP and is real-time capable. X20 modules or other modules based on X2X Link can be connected to the bus controller. Modular system configurations are optimally supported by PROFINET. Using the device description file (GSDML format), it is very easy to handle project configuration in the respective engineering tool from the manufacturer of the master device.

Specifications

Short description

Bus controller

PROFINET IO slave

General information

Diagnostics – Module status	Yes, using LED status indicator and software
Diagnostics – Bus function	Yes, using LED status indicator and software
Power consumption – Bus	2.5 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
B&R ID code	0xBB7D
Status indicators	Module status, bus function
Additional power dissipation caused by actuators (resistive) [W]	-

Interfaces

PROFINET attributes – Conformance class	B
PROFINET attributes – Performance class	RT
Transfer – Physical layer	100BASE-TX
Transfer – Half-duplex	Yes
Transfer – Full-duplex	Yes
Transfer – Autonegotiation	Yes
Transfer – Auto-MDI/MDIX	Yes
Min. cycle time – Fieldbus	1 ms (note: The minimum cycle time specifies how far the bus cycle can be reduced without communication errors occurring.)
Min. cycle time – X2X Link	250 μs (note: The minimum cycle time specifies how far the bus cycle can be reduced without communication errors occurring.)
Fieldbus	PROFINET IO slave
Variant	2x shielded RJ45 (switch)
Line length	Max. 100 m between 2 stations (segment length)
Transfer rate	100 Mbit/s
Synchronization between bus systems possible	Yes

Electrical properties

Electrical isolation

PROFINET isolated from bus and I/O

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB12 separately. ; Order 1x power supply module X20PS9400 or X20PS9402 separately. ; Order 1x bus base X20BB80 separately.
Pitch	37.5 +0.2 mm (note: Pitch is based on the width of bus base X20BB80. In addition, power supply module X20PS9400 or X20PS9402 is always required for the bus controller.)

Accessories

Required accessories (order separately)

X20PS9402	System modules for bus controllers — Supply for the bus controller, X2X Link and internal I/O supply; Low-cost supply module for small X20 system; Feed and bus controller / X2X…
X20PS9400	System modules for bus controllers — Supply for the bus controller, X2X Link and internal I/O supply; Feed and bus controller / X2X Link supply electrically isolated; Redundanc…
X20BB80	System modules for bus controllers — Bus base The following modules are used on the bus module: Base module (BC, HB, etc.); Supply module The left and right end cover plates ar…
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D File STEP/DXF X20BC and X20IF ModuleZIP · 1 MB · 2.3 (09/19/2019)
