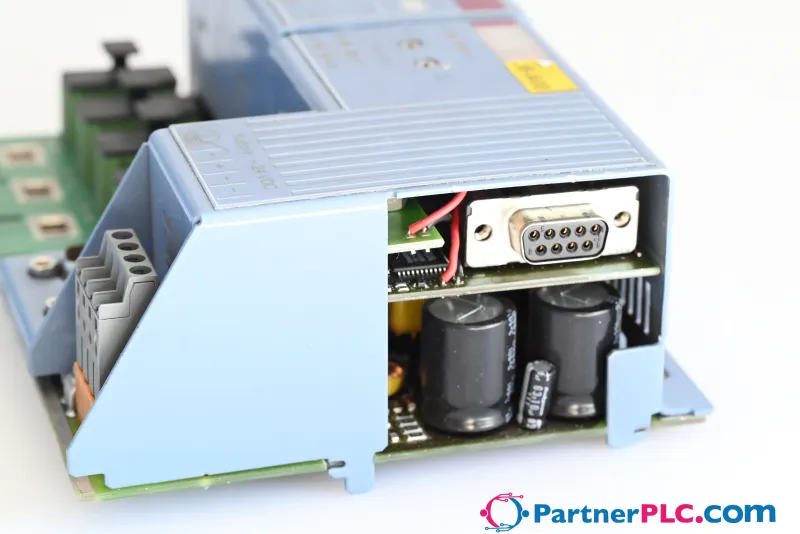

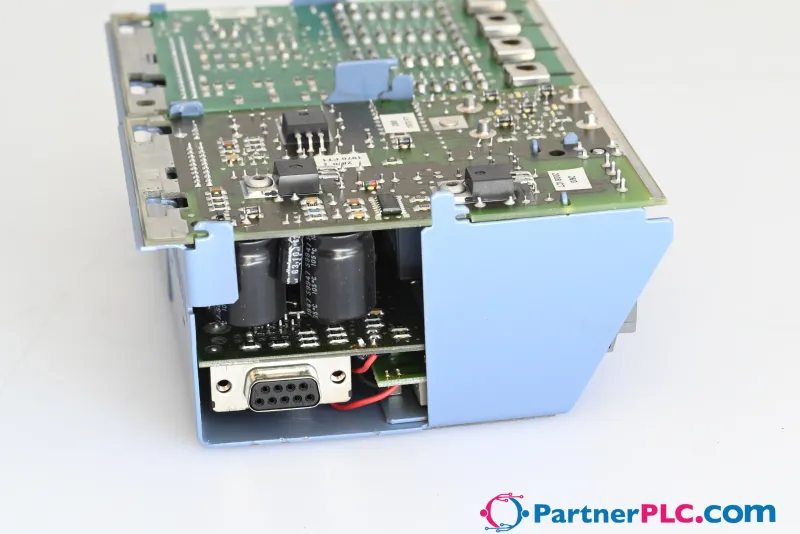

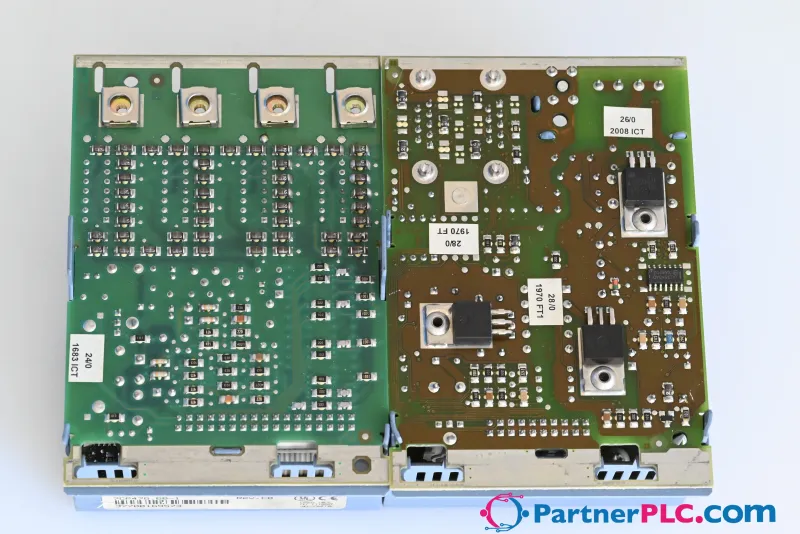

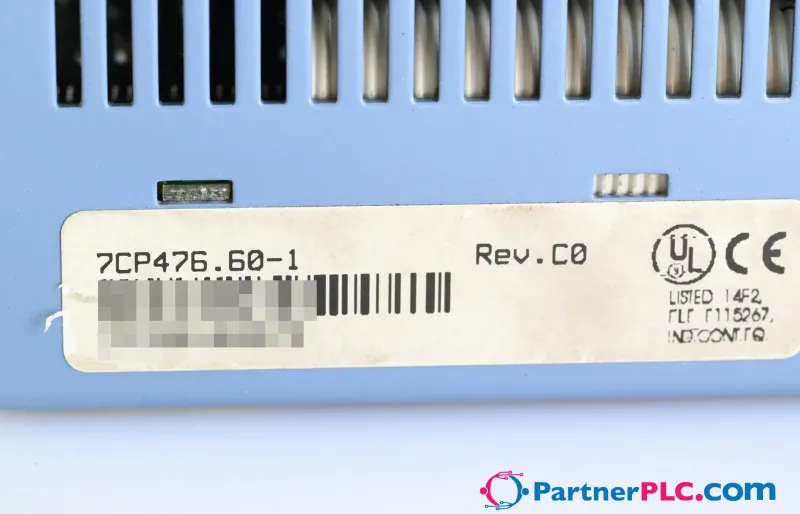

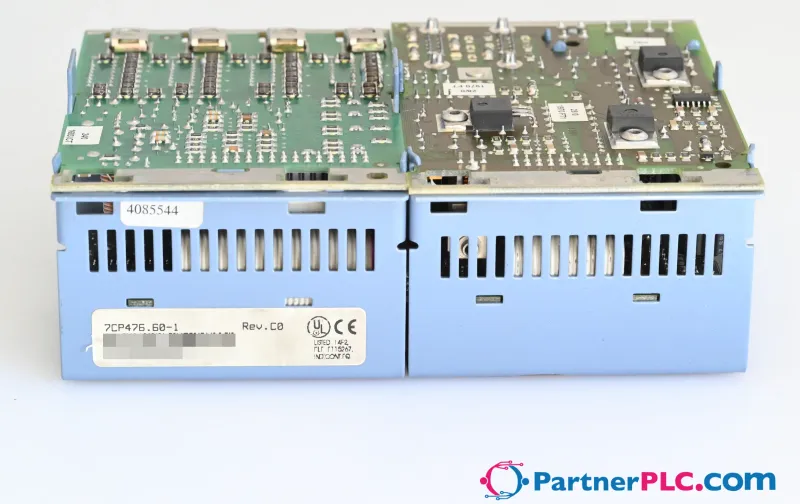

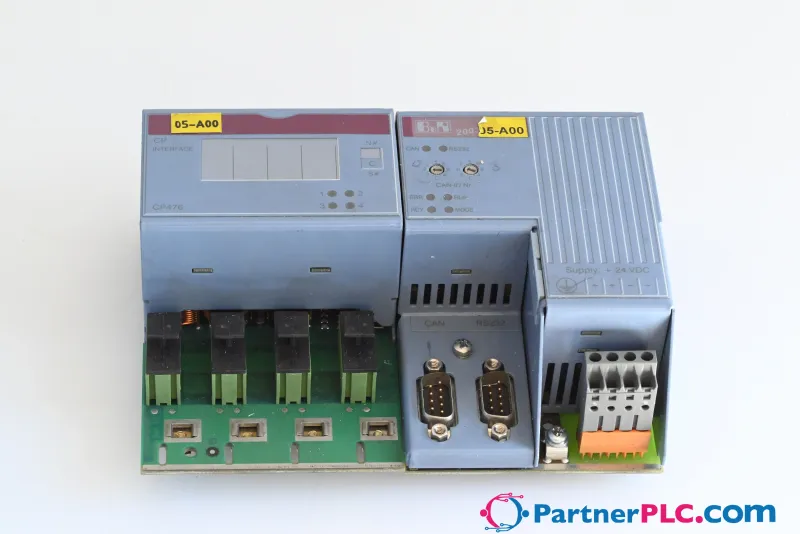

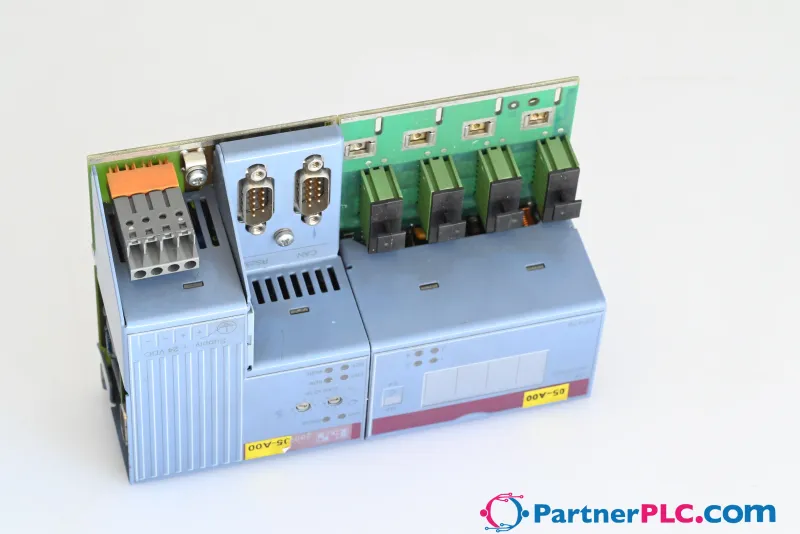

B&R 7CP476.60-1

2003 CPU, 750 kB SRAM, 1.5 MB FlashPROM 24 VDC, 12.5 W power supply, 1 RS232 interface, 1 CAN interface, C...

MPN: 7CP476.60-1
Category: CPU & Controllers

€249.10excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

3-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R 7CP476.60-1?

2003 CPU, 750 kB SRAM, 1.5 MB FlashPROM 24 VDC, 12.5 W power supply, 1 RS232 interface, 1 CAN interface, CAN: Electrically isolated, network-capable, 4 slots for screw-in modules system bus for expansion modules

Specifications

General Information

Short Description	2003 CPU, 750 KB SRAM, 1,5 MB FlashPROM, 24 VDC, 12,5 W supply, 1 RS232, 1 CAN interface, CAN: electrical isolation, network capable, 4 slots for screw-in modules, system bus for expansion modules, max. 272 digital / 80 analog I/O points
C-UL-US Listed	in preparation
Module Type	B&R 2003 CPU
Module Width	B&R 2003 double width
Module Slot	1+2
Additional I/O Processor	Handles I/O data points
Instruction Cycle Time (average value for 70 % bit and 30 % analog processing)	0.5 µs
Standard Memory – User RAM	750 KByte SRAM
Standard Memory – System PROM	512 KByte FlashPROM
Standard Memory – User PROM	1.5 MByte FlashPROM
Data Buffering – Backup Battery	Lithium Battery 3 V / 950 mAh
Buffer Current – Typical	2.2 µA
Buffer Current – Maximum	110 µA
HW Watchdog	Yes
Voltage Monitoring	The internal supply is monitored for overvoltage and undervoltage
Real-time Clock	Nonvolatile
Resolution	1s
Status Display	LEDs
I/O Bus Interface (right side)	9 pin D-type socket
System Bus for Expansions (left side)	PCMCIA memory card ME010 B&R SYSTEM 2005 interface module insert ME020
Suitable for IF Modules	1-3

Standard Communication Interfaces

Application Interface IF1	RS232
Electrical Isolation	No
Connection	9 pin D-type plug
Max. Distance	15 m / 19200 Baud
Max. Baudrate	115.2 kBaud
Application Interface IF2	CAN
Electrical Isolation	Yes
Connection	9 pin D-type plug
Max. Distance	1000 m
Max. Baudrate	500 kBaud
Input Voltage – Minimum	18 VDC
Input Voltage – Nominal	24 VDC
Input Voltage – Maximum	30 VDC
Power Consumption	Max. 20 W
Output Power for I/O Ports	12.5 W

Accessories

Optional accessories (5)

4A0006.00-000	Batteries — Lithium battery, 3 V / 950 mAh, button cell
0AC201.91	Batteries — Lithium batteries 4 pcs., 3 V / 950 mAh button cell
7AC911.9	Infrastructure components — The AC911 bus connector is used to connect a controller to a CAN network. The terminating resistor is integrated in the bus connector. The…
0AC913.92	Infrastructure components — Bus adapter, CAN, 2 CAN interfaces, including 30 cm attachment cable (DSUB)
0AC912.9	Infrastructure components — Bus adapter, CAN, 1 CAN interface

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 7CP476.60-1PDF · 1 MB · 1.0 (06/08/2004) - EN

CAD & dimension drawings

3D STEP File 7CP476.60-1ZIP · 1 MB · 1.00 (04/24/2015)
